Last Updated: May 25, 2023
Introduction
AllStarLink Nodes have been built in many ways over the past 15 years, with various tradeoffs between cost, features, ease of construction, portability, audio quality and RF performance. Most nodes now available for sale are small, simple nodes that support only half-duplex operation and often have marginal audio quality. Or another common design is to use old Motorola or other mobile radios, which have good audio and RF performance but take up a lot of space and make inefficient use of power, requiring 5+ Amps of supply current and putting out 5+ Watts of power when only a few 100mW is usually needed.
In some applications a small portable node such as a SHARI or HotSpotRadio node might work fine, if you already have a Raspberry Pi or can find one at a reasonable price. These are compact, portable, and can have good audio quality if properly assembled and tested. For those who are new to AllStar this can be a good way to get familiar with AllStar and with the performance and limitations of a "starter" node. For mobile use portability is often the main priority, but even then there is no good reason to settle for limitations or any less than excellent performance.
After months of research and testing with the goal of achieving the highest possible quality at the lowest possible cost, I've built a number of Full-Duplex nodes using readily available FCC-certified components, that can be built by anyone with basic electronics skills. I have seen no previous mentions online of this having been done with excellent audio quality and RF performance, full-featured mini PC, radio interface, node radios, power supply, and integrated enclosure for under $150 in materials costs. Some previous designs with Raspberry Pi's used to be around the same price point, but for the past year RPi's have been $100+, making them a far inferior choice for use in a node. If at some point RPis come down to more like $35 then such an RPi could be used with this design but until then there are a wide range of mini/micro PCs that have more features and the same level of processor power and energy efficiency at a much lower cost.
Table of Contents
Overview
Block Diagram
Completed Node Pictures
Background
History
Using HTs for Node Radios
Node Components
Parts List and Component Options
Main Components
USB Radio Interface
Additional Required Components
Recommended / Optional Components
Enclosure Options
Setup Steps
Dell Wyse 3040 Micro PC
Recommended App-Rpt Settings
Updating to the Latest ASL Code
Power Supply
Wiring Notes
Radio Interface Cable Wiring
Ferrite Filters, Filter Capacitors
Signal-To-Noise Ratio (SNR) Optimization
CM108 Sound Fob Modification (Optional)
Radio Settings
COS Line Installation (Optional)
Node Management / Dashboard Apps
Design Overview
FCC Compliance, RF Performance
Audio Quality Notes
WiFi Support, Portability
Full-Duplex Communication Benefits
FAQs
Node Notes / Instructions
Troubleshooting
Conclusion
Contact
Overview
Quick Demo Video
- AllStarLink.org has excellent documentation and support making it easy to build your own node on Intel/AMD or RPi platforms. ASL is 100% open-source with a huge ham community including many experts who have used it for years with complex interlinked repeater systems.
- Dell Wyse 3040 and other Thin Client / Micro PCs are widely available for $50 or less on ebay, and have the same low power consumption as an RPi3 or 4 (5V 3A) but with more features eg. a power button and a Real-Time-Clock IC, built-in eMMC/SSD memory, better thermal management and fanless silent operation.
- Retevis RT85s are great radios available for only ~$50 a pair. They are FCC-certified - ensuring less chance of causing or receiving RFI/EMI. They are also sold under other names/variations such as the Explorer QRZ-1, Baofeng UV-13 Pro, and TYT TH-UV88. Unlike Baofeng UV-888s which have been used in many nodes, RT85s have an LCD and keypad, do not require programming cables or software, and are dual-band VHF/UHF. Baofeng UV-82, TP-8R, or other more recent FCC-certified models can also be used and may cost less.
- HTs provide high audio quality, low power consumption, and are compact, inexpensive, and put out only as much power as needed to cover within a few miles. ASL's usbradio driver provides reliable COS (RX Audio) detection using the carrierfrom=vox mode, thus any HT can be used with no need for a COS connection. With a proper signal into the mic jack HTs can sound just as good as mobile or base radios, with a Signal-To-Noise Ratio (SNR) of 55+dB.
- There's no longer any good reason to settle for nodes with noisy audio (< 50dB SNR), substandard RF performance, closed-source HamVOIP software, or non-FCC-certified radios. HamVOIP was an innovator in being the first to support RPi in 2014, but in choosing a closed-source development approach and the currently unavailable/overpriced RPi platform as their only supported hardware HV has become somewhat obsolete for the time being.
- Full-duplex nodes enable more interactive and more efficient communications, prevent doubles, and improve situational awareness, even if your other radios are only half-duplex. Full-duplex smartphone VOIP/IAX apps and VOIP (SIP) phones can also be used.
- AllStar works perfectly with Full-Duplex radios because it does not echo your transmit audio back into your receive audio. Thus you only hear what's on the remote node/repeater you're connected to (minus your own outgoing audio), just like talking on a speakerphone – true full-duplex with no echoes, delays or feedback. This uses the duplex=3 setting in rpt.conf – which is NOT a repeater and does NOT echo your outgoing audio back to you.
- The DVSwitch ASL distribution supports bridging to digital modes such as P25, D-STAR, YSF, DMR, etc. and is also fully open-source.
- AllStar nodes also support EchoLink with a simple cfg setting. Note however that EchoLink is not as well designed of a system as ASL. AllStar has higher audio quality, lower latency, and more features. If there are repeaters you know that support EchoLink but not AllStar I recommend asking the owners to support AllStar.
- Unlike RPi's, MicroPCs such as the Dell Wyse 3040 have a power button so they can be turned on or cleanly shut down simply by pressing a button, and have a Real-Time Clock (RTC) IC that enables powering on and off on a schedule. The Wyse 3040 is only 4"x4"x1" in size, barely larger than an RPi3/4. These are full-featured PCs as opposed to no-frills Single-Board Computer modules.
Block Diagram

Completed Node Pictures

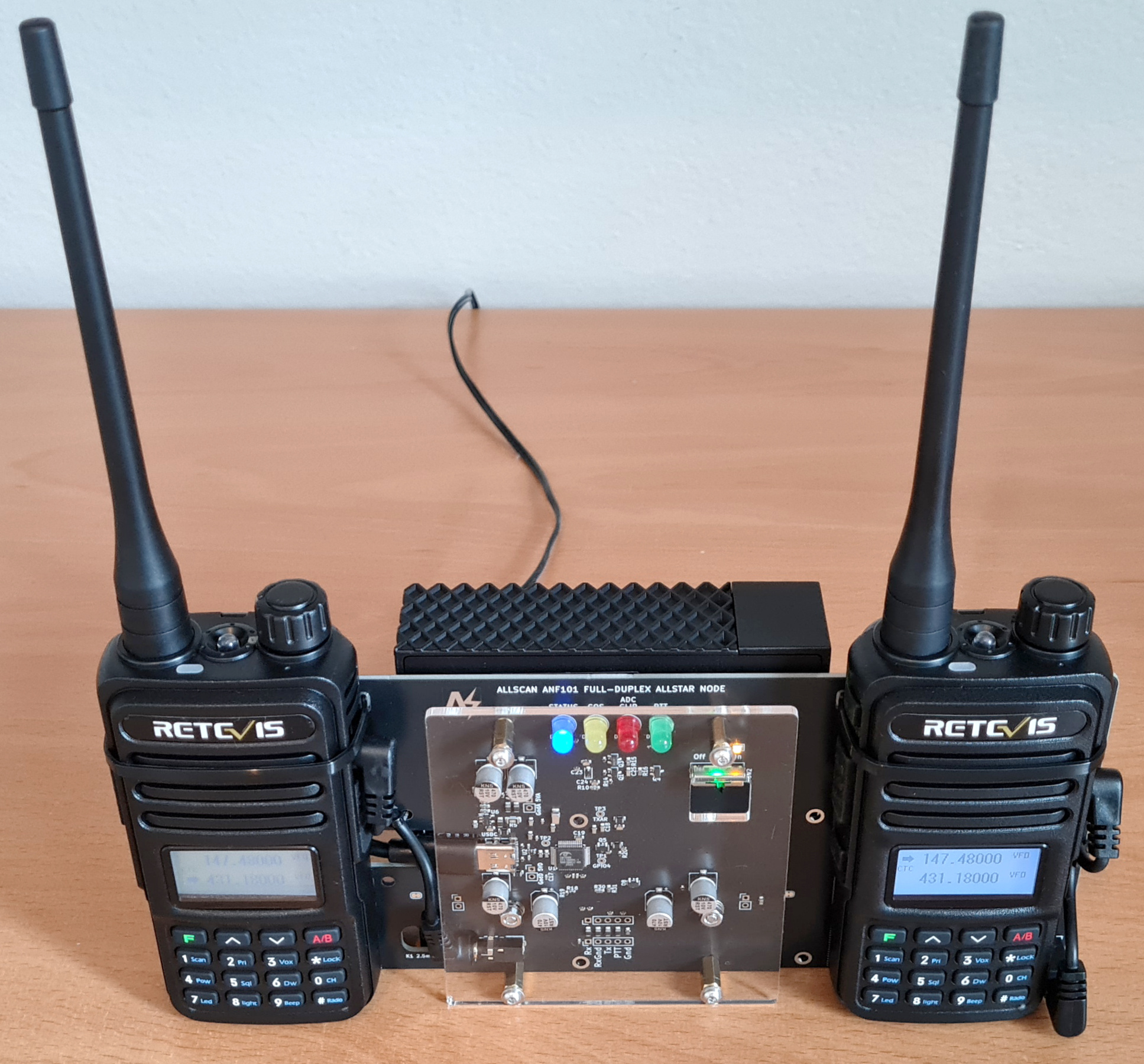

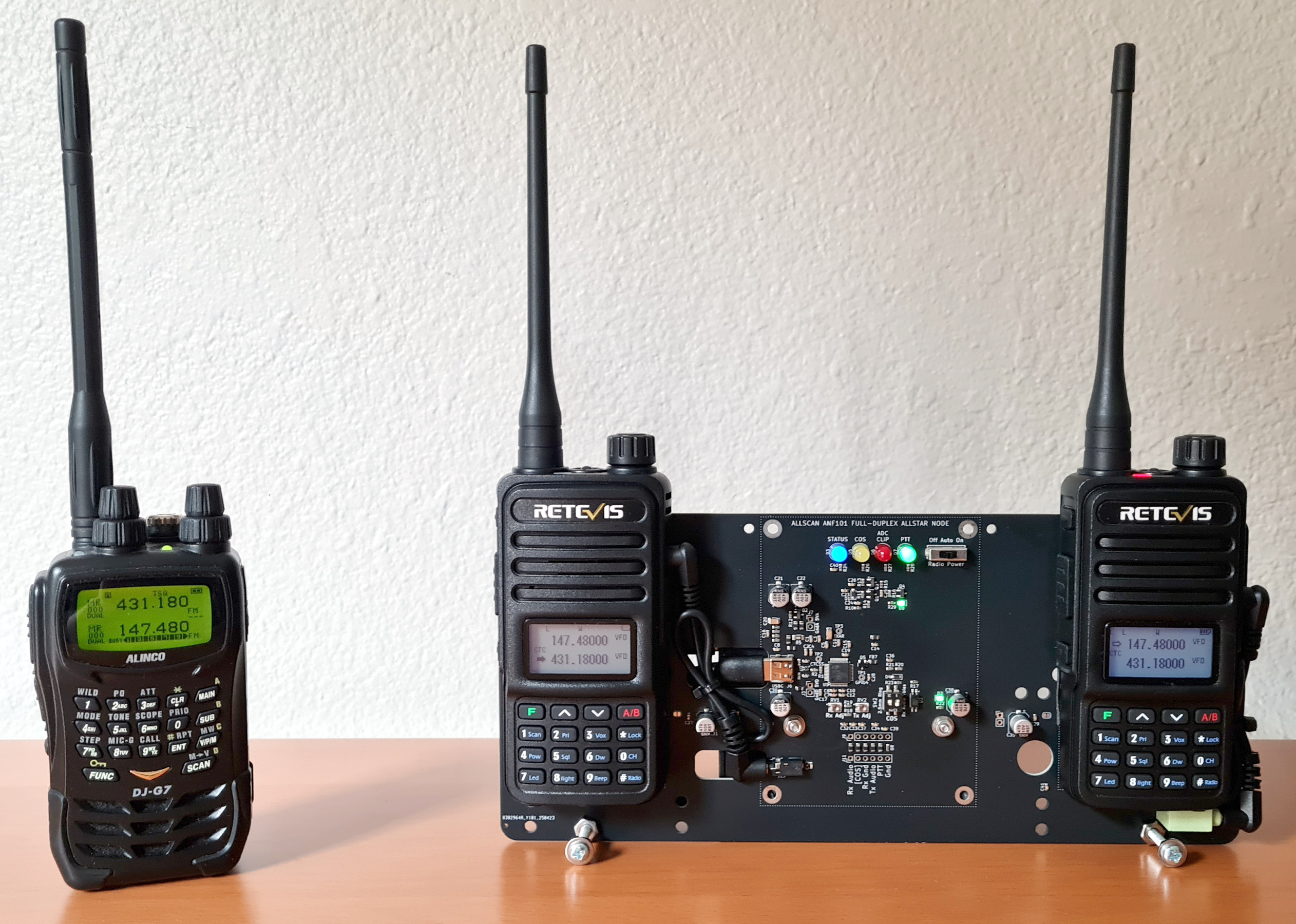

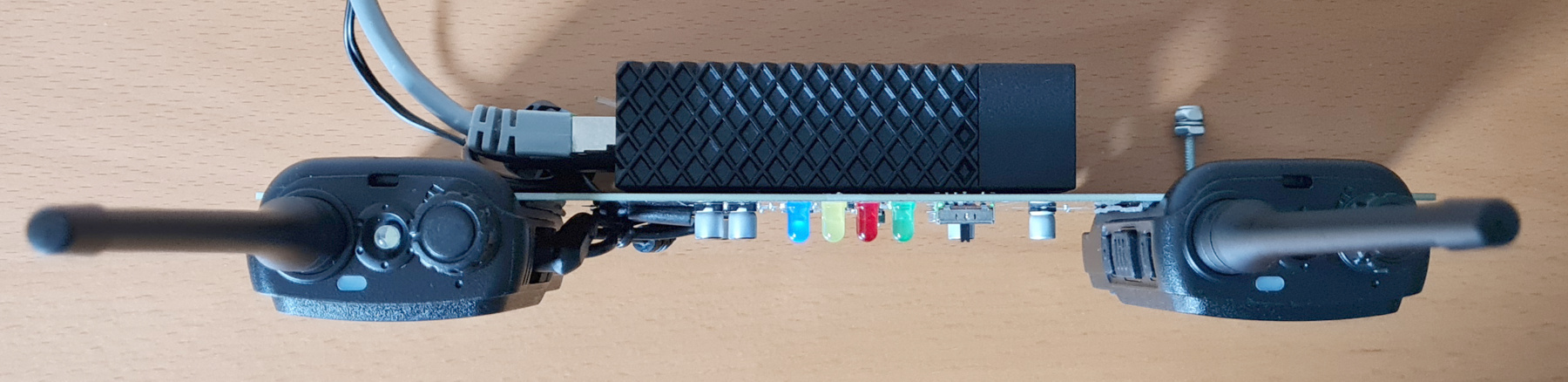

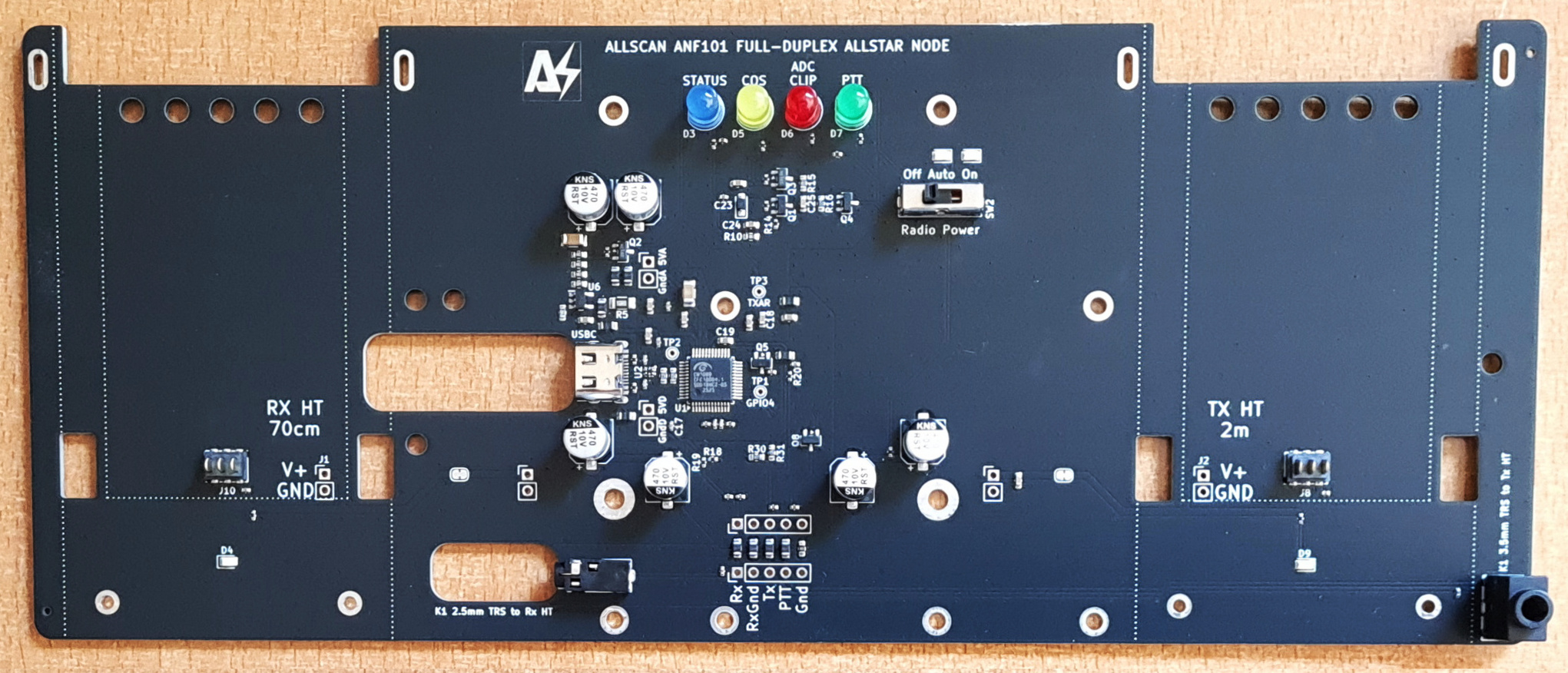

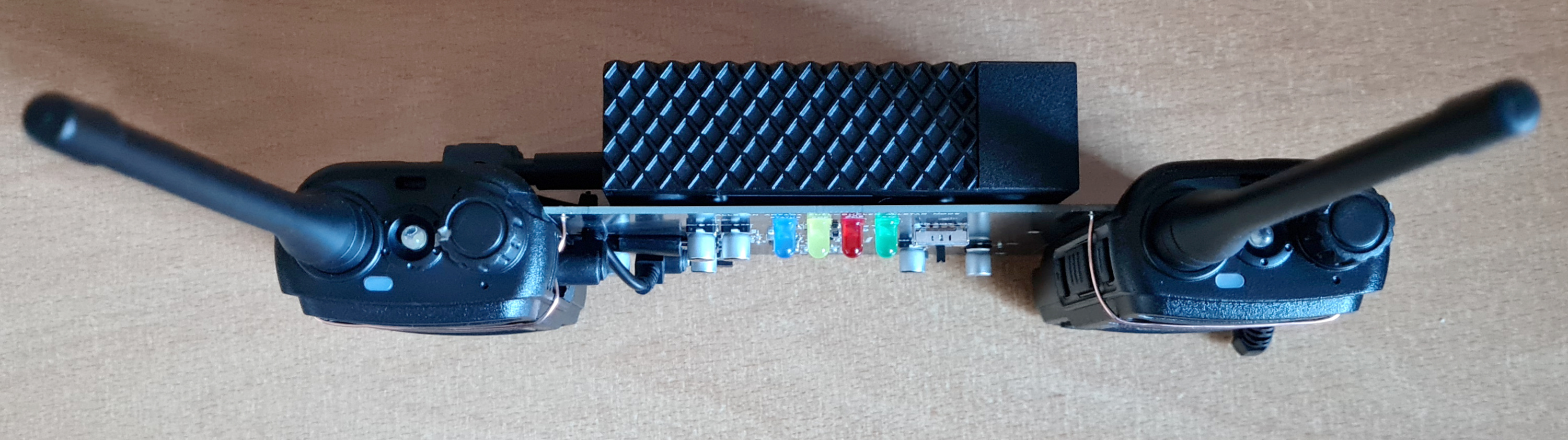

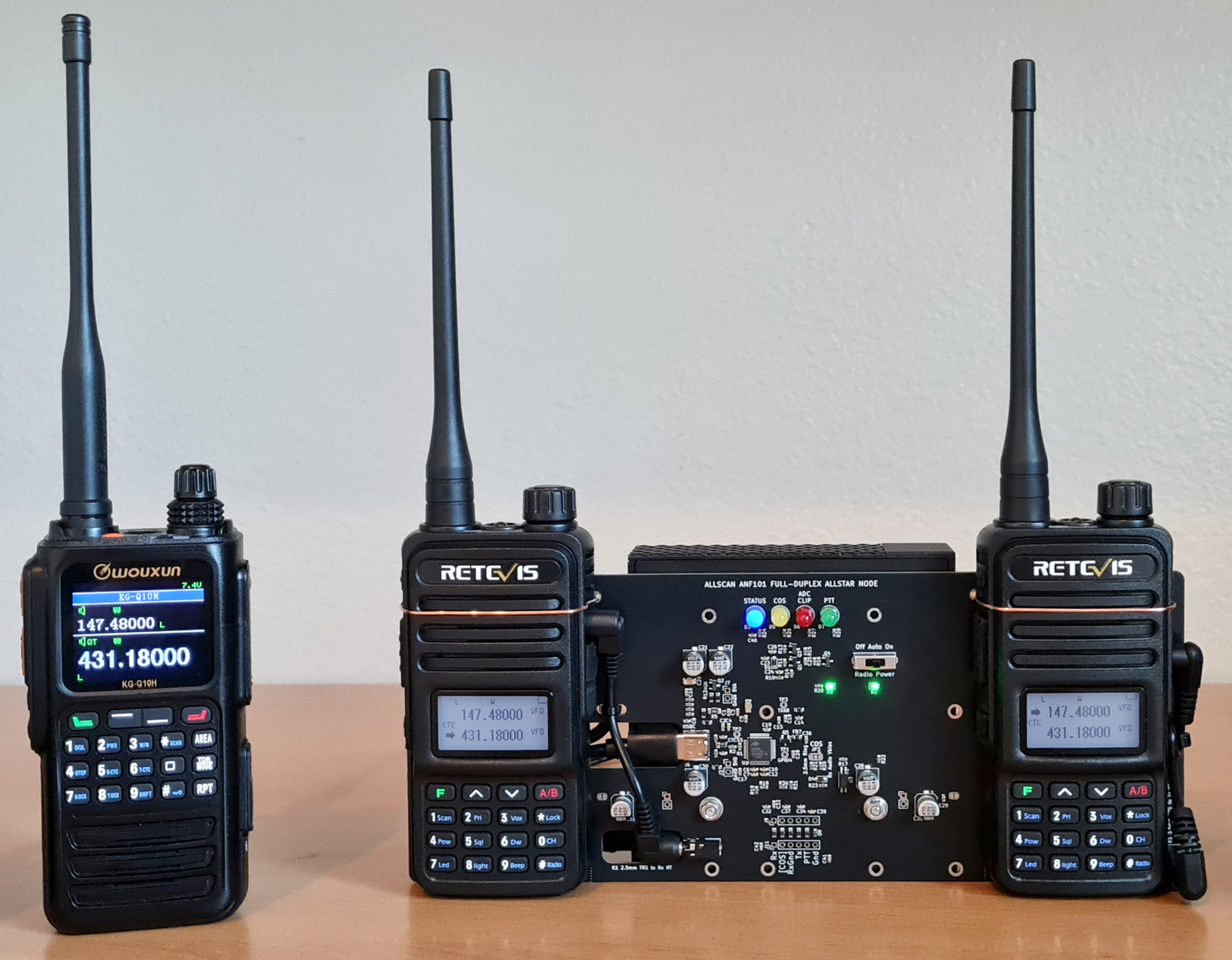

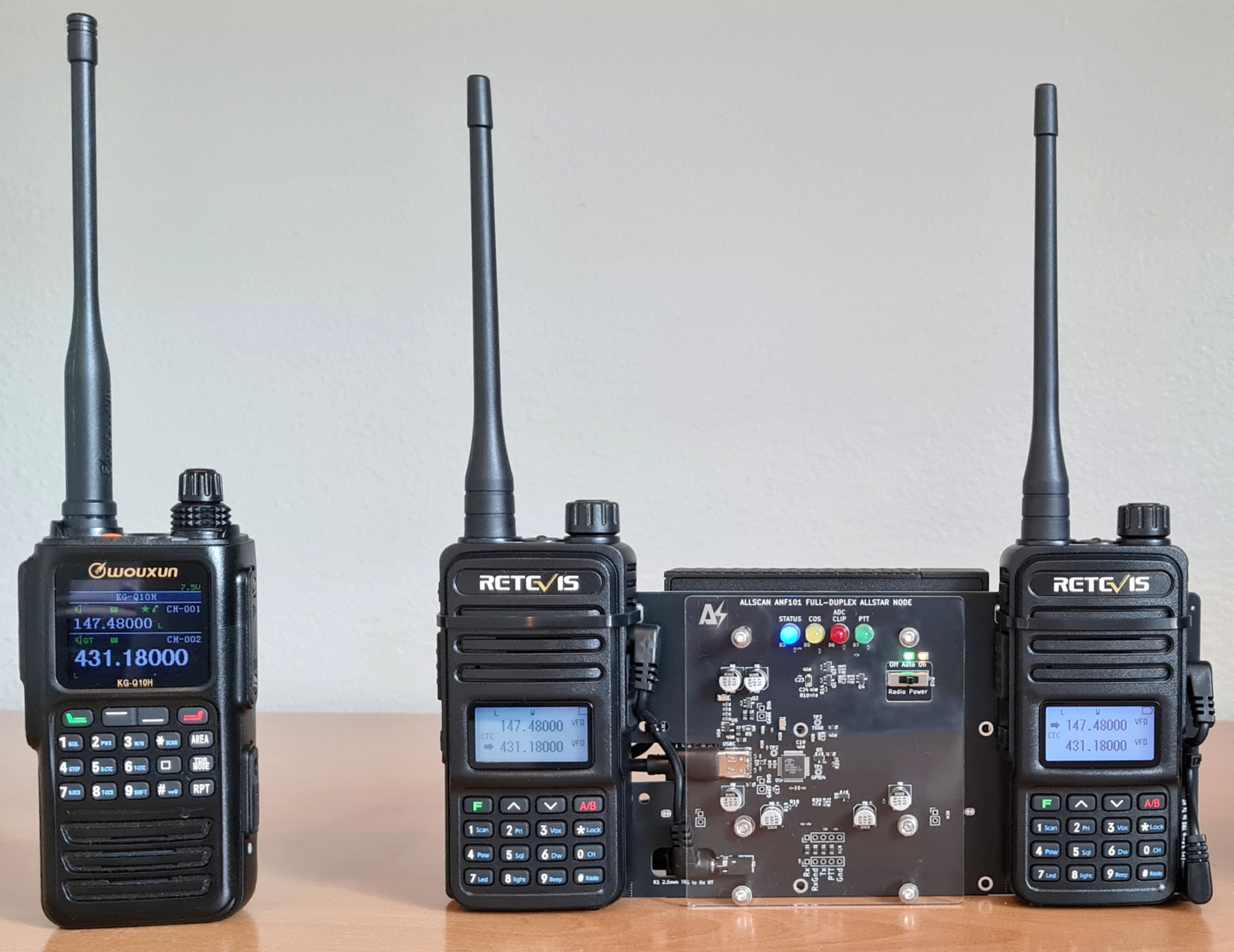

AllScan ANF101 (RIM-Lite-V2)


This is my preferred design with Repeater-Builder RIM-Lite-V2 interface and Hammond 1455N1601BK
Extruded Aluminum Enclosure, providing excellent audio quality with 60dB Signal-To-Noise Ratio
AllScan ANF101 (CM108AH) - Front View

Older version with CM108B URI plugged directly into the miniPC. I have since found that for best
audio quality either a Repeater-Builder RIM-Lite V2 interface should be used or a CM108 can be used
if inside a small aluminum shielded enclosure with a number of modifications to improve RFI rejection.
ANF101 with Classic Cross-Band Full-Duplex HTs

From left to right Yaesu FT-530, FT-51R, Kenwood TH-D72A & Icom IC-W32A

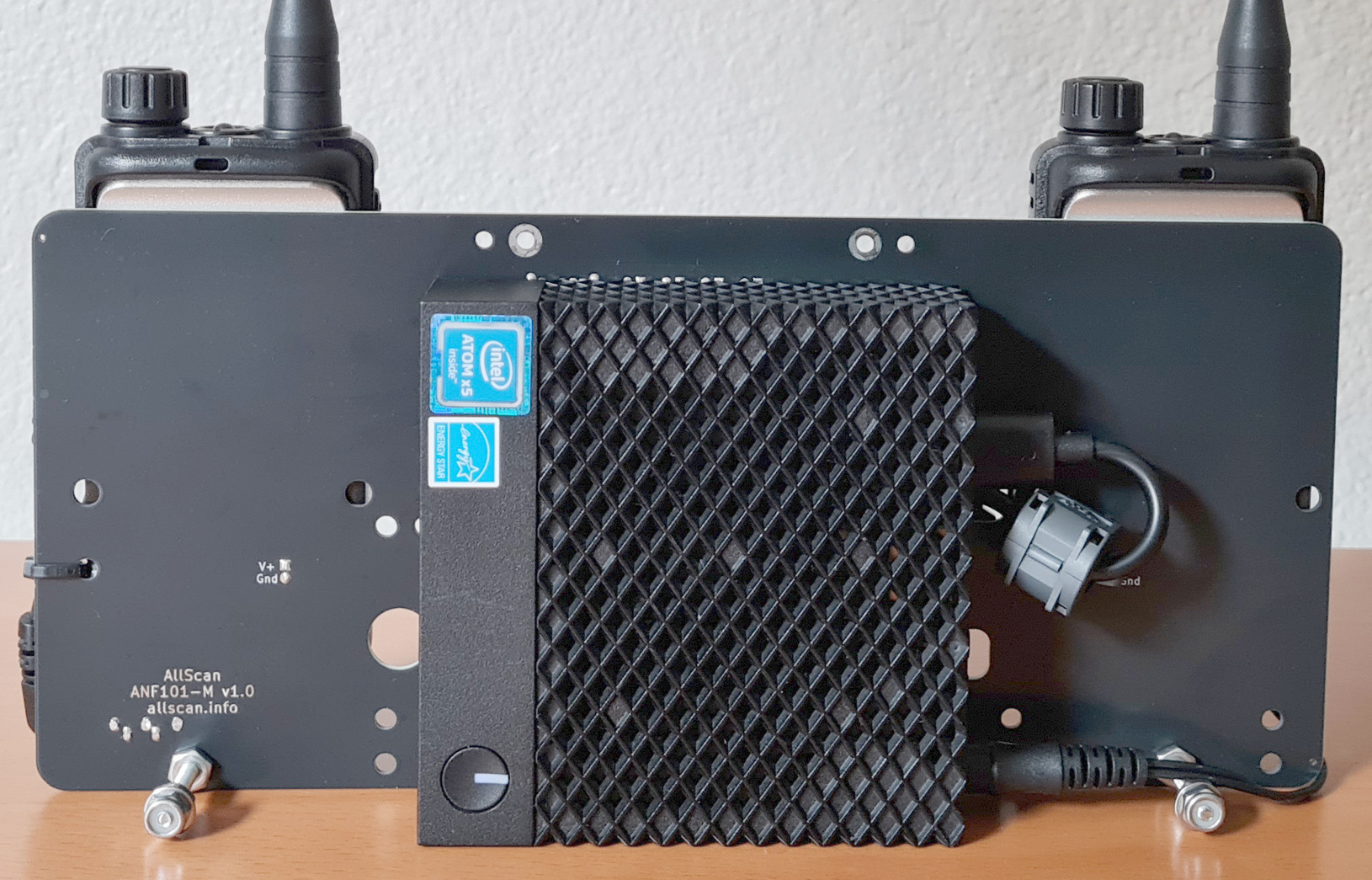

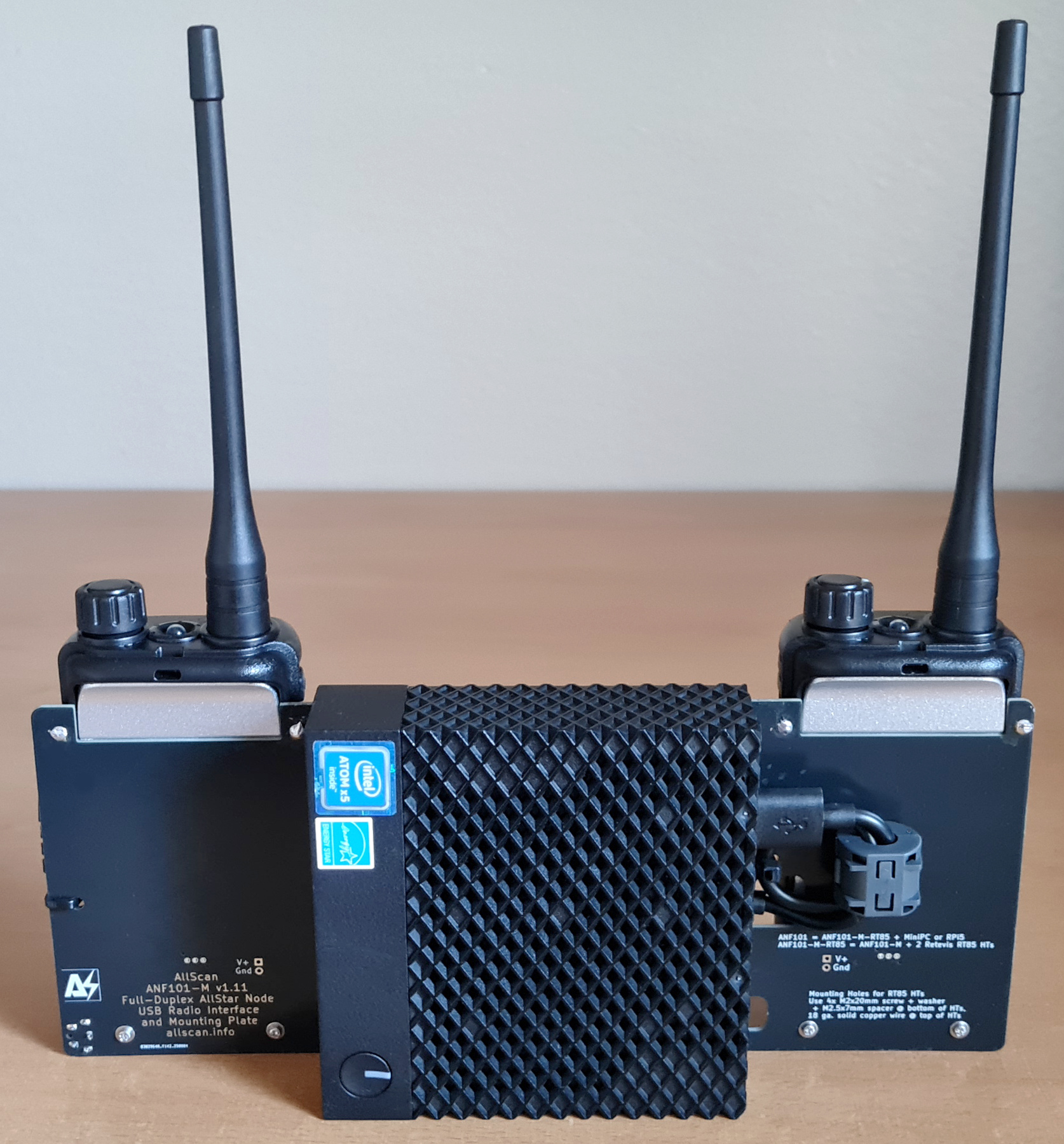

AllScan ANF101 - Back View

2 ANF101 Nodes Next to a Vintage Yaesu FT-530

The ANF101 has a total footprint of only 10"W x 3"D. In contrast a Yaesu FT-530
measures 7.5"L x 2.5"W (with larger battery, excluding antenna)
ANF101 with Plain Aluminum 5"x10" Mounting-Plate

Background
I've been a ham since 1986, an Electrical Engineer since 1993, and a Software Engineer since 1997, but did not start using AllStar until mid-2022. I also have extensive experience in Audio Engineering, Recording and Pro-Audio. I discovered EchoLink in early 2022, and then soon heard that AllStar was a step up with higher audio quality, lower latency, and more features and flexibility. After a little research I found that the nodes on the market – both commercial nodes and DiY designs – were not well documented and lacked basic specifications such as Signal-to-Noise Ratio (SNR).
I bought a ClearNode in May '22 as it seemed like a popular node with a useful phone app, and spent many hours on ASL-linked repeaters over the next few months. The Tx audio from the ClearNode had a noticeable digital whine noise but I didn't pay much attention to it. However, I kept hearing reports that there was a buzz on its outgoing audio. Finally in September I did some tests and found that its RF receive audio (which goes out to other nodes) was significantly noisier than its RF transmit audio (which only you hear), leading you to believe it sounds reasonably OK when in reality the outgoing audio had a very noticeable buzz and well under 30dB SNR. A high-quality node can deliver a SNR of 50–60dB, which is over 100 times higher than the ClearNode (10dB=10x higher, 20dB=100x, …). I emailed Node-Ventures in Sept. '22 and Gerry suggested a ferrite filter on the power supply cable, and moving the node around to different rooms, but nothing made any significant difference.
I then heard from another node maker who uses the SA818 RF Module that the ClearNode PCB design is known for being noisy and was not properly optimized with RF shielding and filtering. (Maybe Node-Ventures has fixed that now but I continue to hear the same buzz/whine on the signals of many ClearNode users.) I've heard that other nodes using the SA818 have done a better job, but by then I was much more familiar with AllStar & ASL and it was time to build my own node. Also I have always been an advocate of open-source software so did not want to continue to support any node makers who use closed-source software, which seems to be all the commercial node makers (for unnecessary reasons that will be further discussed below). And last but not least I wanted to try Full-Duplex on AllStar, as I knew it would be a game-changing feature.
This How-To Guide thoroughly covers many design aspects and subtle details. Some of this can be found in bits and pieces on various websites, wikis, blogs, etc. going back 10+ years, but I've also made some significant optimizations that no one has documented before, that enable a full-featured node to be built that has no compromises in quality or functionality yet costs less than any other node on the market.
It's easy to skim through a lengthy document such as this (which is now over 20,000 words) and miss some of the subtleties or jump to conclusions, since "people weren't doing it that way before" or "ASL couldn't actually work that well". But any such conclusions would be unfounded. With my 30-year background in engineering, I would not propose a design to the ham community without first being sure it fully met my own (very high) standards. I encourage questions, am responsive to emails, and am active on a number of forums. I'm also fortunate to be able to spend a lot of time on ham radio, and have essentially been a full-time AllStar developer since October '22. I created AllScan, have contributed to the AllStarLink App-Rpt code, and have built and sold some very nice nodes.
History
AllStarLink (ASL) has been around a long time by tech standards and has a stable and mature code base. It has been used for controlling complex interlinked repeater systems for 15+ years, supporting a high-precision multiplexing receiver system that precisely time-aligns audio feeds from any number of receivers and ensures perfect synchronization even with unpredictable delays that occur over various IP and wireless links. It's based on Asterisk, a powerful open-source PBX system that supports numerous telephony and VOIP features including full-duplex communications, conference calling, autopatch, integration with VOIP systems and equipment, voicemail, voice detection, Interactive Voice Response menus, support for a wide range of voice codecs, and extensive control and monitoring capabilities via web interfaces, DTMF commands, scripting and macros.
When you put an ASL image on a microSD card or flash drive, you're loading GigaBytes of software containing the result of millions of lines of code that make up Linux, Asterisk, ASL, and the 1,000's of other utilities and programs that come with Linux. The power and flexibility of all this is far higher than what you see in typical commercial products such as a modern digital HT. Linux, Asterisk and ASL are 100% open-source and free, meaning that not only is it free but that anyone can look at the source code, see how it works, edit it, add to it or improve it.
Using HTs for Node Radios
ASL usually uses a Carrier Operated Squelch (COS) line to determine if you are transmitting audio into the node. Most nicer mobile radios have a MiniDIN6 or DB9 jack that provides a COS output along with the PTT input and Rx & Tx audio lines. If you pick up for example a Kenwood TM-V71A, Alinco DR-735T or a Yaesu FT-8800R mobile radio, you can plug it right into a standard USB interface such as a Masters Communications DRA-36. Then put the ASL image onto a MicroSD card, put it in a RPi, hookup a keyboard, monitor and mouse, turn it on and run the install script. The standard cfg settings should all work fine and your node should be up and running within an hour. This would be a fine node, supporting cross-band full-duplex (set duplex=3 in rpt.conf), with 5+W power output, which with a good outdoor antenna could have a range of 10+ miles.
ASL doesn't need a COS input, as it comes with a "usbradio" driver that detects the presence of Rx Audio automatically, and very reliably. This is simple to enable, just uncomment out the "usbradio" line in rpt.conf and comment out the "simpleusb" line, and then in usbradio.conf set carrierfrom to "vox" and voxhangtime to "500" (mS). Then adjust your audio levels reasonably close to where they should be, and you should be all set.
I had initially thought the usbradio "carrierfrom=vox" mode might work more like a typical VOX circuit, which have a somewhat high activation threshold and may look for voice vs. noise spectral signatures, but fortunately that is not the case and ASL's usbradio does exactly what it should - reliably detects the presence of any signal on the Rx audio line, even if you're not talking but are keyed up and there's just ~1mV of background noise. This is good news for anyone who was thinking of putting together a node using an HT as the node radio but who thought the lack of the COS line might be an issue or wasn't sure how to do it.
Software-based COS detection is not perfect for all use cases – if you have a quiet voice, the radio(s) you use to talk into the node have low mic gain, and if you would often use the node in a quiet environment and frequently pause when speaking, then "carrierfrom=vox" mode would not be ideal, and in that case I would recommend modifying an RT85 to add a hardware COS line. Instructions are provided below on how to do this, though it does require some skill in working with surface-mount electronics.
The first node I built uses a Yaesu FT-530 for the node radio which work perfectly as full-duplex radios. (Unfortunately the radio manufacturers later gave up full-duplex support, only to replace it with low-bitrate digital modes.) But the old radios continue to work fine and are inexpensive and easy to find on qrz.com, eham.net, qth.net and ebay.
Using HT(s) for the node also makes it very portable. With a small battery pack and cell hotspot the node could be used anywhere. HTs don't need a separate antenna, duplexer or coax cables, and have lower power options than mobile radios. An HT transmitting Low power is usually plenty of power to cover within 1-2 miles.
It's simple, practical, and cost-effective to use HTs for node radios. Retevis and TYT radios use the same speaker/mic pinouts as Kenwood HTs are are easy to connect, with no resistors or other components needed. This is a nice option if you already have some old HTs sitting around. This article focuses on the Retevis RT85 HTs because they are only $50 for a pair new, look nice, are compact, and work well, but any other HTs could be easily substituted. An advantage of using a Full-Duplex HT such as an FT-530 is the node only needs one HT instead of 2, but unless you have multiple full-duplex HTs it makes more sense to use a couple of cheap simple HTs for the node radios and then use your nice FT-470, FT-530, FT-51R, TH-D72A, TH-D75A, IC-W32A, etc. to talk to the node.
Node Components
There are several main pieces to an ASL node:
- A computing device. This can be a Raspberry Pi, any Intel/AMD PC or Mini/Micro/Thin-Client PC, or a "cloud" Linux server such as a linode.com VM. In the case of a cloud server an RTCM interface can be used which connects to a router and then to your radio (but which cost almost $300). RPis are a bit more standard and slightly easier to set up but due to supply chain issues they can be harder to get or more expensive. RPis, the Dell Wyse 3040 and some other Micro PCs use only 10-15 Watts, but others may use significantly more and even 10 Watts of extra usage if left on 24 hours/day could cost 0.01 KW * ~25¢/KWh * 24 * 365 = $22/year in electricity costs.
- A radio interface. This usually consists of a small PC Board with a C-Media CM108 or CM119 IC that interfaces to a USB port and provides an audio input, audio output(s), and GPIO lines for PTT, COS, and status LED(s). This is referred to as a URI (USB Radio Interface), RIM (Radio Interface Module), or could be called an audio interface or sound card, but due to the presence of hardware IO lines for connecting PTT and COS lines the term URI is more accurate.
- A node radio*. This is often built-in to Off-the-Shelf nodes in the form of a small simplex radio module. However these modules may not have very good audio quality or RF specs. Some node manufacturers take audio quality more seriously than others and unfortunately none of them provide detailed specifications on things such as audio signal-to-noise ratios, frequency response, distortion, etc. The only time I would get a node with a built-in radio module is if the node needs to be as compact and portable as possible. But if you'll mainly be using the node at your QTH then real radios are definitely preferable. Note that node radios should always have Tone Squelch enabled to prevent possible interference from keying the node.
- Last, some other radio is needed to then talk to the node with. It could be an HT, mobile rig or base rig. With cross-band full-duplex the node radio could for example Tx on ~431 MHz and Rx on ~147 MHz, and your other radio would Rx on ~431 and Tx on ~147.
*There are also radio-less nodes, which use only a speaker and mic, and no radio, but you then wouldn't have the flexibility of walking around your yard or neighborhood with an HT. A VOIP phone can also be used as a radio-less node by setting it up with a standalone MiniPC or cloud VM running ASL (to key up dial *99 and then # to unkey), or smartphone apps such as DVSwitch Mobile or DroidStar can connect to an ASL cloud server over IAX.
I also often use nodes with a VOIP desk phone. That way when I'm at my desk I don't need to turn on any radios and can use the node on a speakerphone (such as any model supported by Hamshack Hotline). Or I have DroidStar on my shack PC and Android phone and can easily connect to the node through the IAX protocol. Or "Linphone" or "GS Wave" are free SIP VOIP phone apps that work well. Thus with any ASL node there are multiple ways to talk on it, through RF, IAX apps, VOIP (SIP) phones and apps, or in the case of radio-less nodes by plugging in a speaker and microphone. See this excellent article on how to set up VOIP phones/apps on your node. This also covers using ASL's autopatch feature, enabling calls to VOIP phones to be made from a radio. Note that this requires port 5060 to be open in the node's iptables (firewall) configuration and forwarded to the node in your router settings.

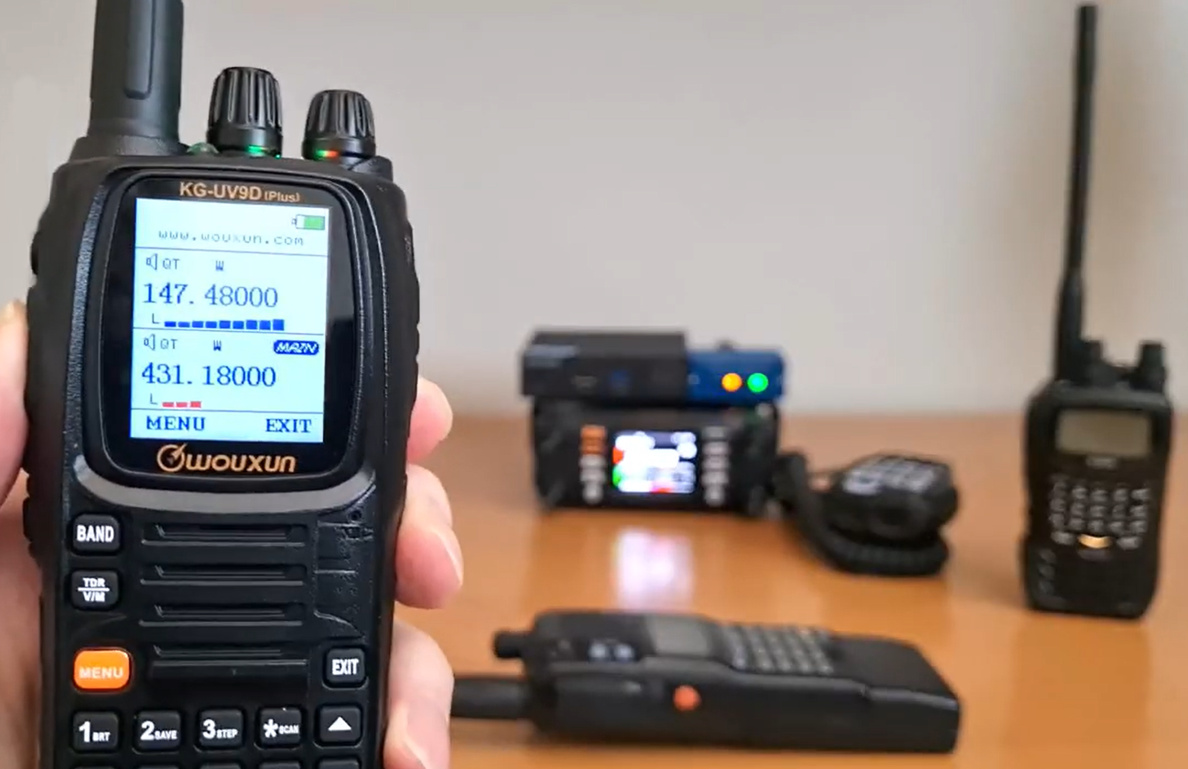

There are many HTs and mobiles that do cross-band full-duplex that are easy to find used for ~$150 or so. The node radio does not need to support full-duplex because separate HTs can easily be used eg. one for Rx on 70cm and one for Tx on 2m, but for other radios cross-band full-duplex is a great feature.
Parts List and Component Options
Main Components
The Main Node components I recommend are as follows, with purchase links and last-known prices:
- Dell Wyse 3040 MicroPC with 5V 3A AC Adapter - ~$40 w/free shipping
- 2 Retevis RT85 Dual-Band HTs - $50 w/free shipping
- 7.5V DC 2A Power Supply for HTs - $8
Total: $98 (plus any sales tax that may need to be paid)
The above items are available from many sources and can be purchased from the links above or from any other reputable source. (If any links on this page are no longer working or you find a better source for any parts let me know.)
I have bought many 3040's from various sellers for as little as $30 with free shipping. Some 3040's also come with a built-in wifi adapter, which I have not yet tried. Most 3040's run on 5V 3A, but some run on 12V 1.5 or 2 Amps. More recently I've been seeing some new 3040's on ebay going for a little bit more (~$60 with shipping) which is a small price difference for new vs. used. But even a used 3-5+ year old 3040 should run very well for many years. The design is well thought-out with excellent thermal management and no fan to pull dust inside. If getting one that's more than a few years old I do recommend checking the small backup battery and replacing it if significantly below 3V. CR2032 batteries are available with solder tabs for as little as $1 ea. The case pops right open with no tools needed and you can then also confirm if it has built-in wifi. Many 3040's have the internal wifi card and antennas even though many ebay sellers don't mention it. I usually have extra 3040's with wifi in stock that I can provide with new backup battery and ASL preinstalled at a reasonable price. I can also provide kits with any or all needed parts, as well as fully assembled and tested nodes.
USB Radio Interface
Several URIs are available that use high-quality C-Media USB Audio I/O Controller ICs. Generic CM108 USB audio interfaces (Sound "Fobs") are less than $10 but require some modifications, whereas interfaces such as the Repeater-Builder RIM-Lite-V2, Masters Communications DRA-30, or the Digirig Mobile are designed specifically for use with radios and are easier to set up. The RIM-Lite-V2's are $60 + $5 for shipping, and include a shielded DB9 connector and USB cable, whereas the DRA-30's fully assembled with no case are $65 + $10.50 for shipping. I have used RIM-Lite-V2's, a DRA-100, a DRA-30, and CM108 fobs in nodes and they all work well, though the CM108 fobs can be noisier. The Digirig Mobile's are < $60 with shipping, include a small metal case, also have a serial port and bring most needed lines to a 3.5mm TRRS jack, but require modifications to use the CM108 PTT line instead of the serial port RTS line.

Modified CM108AH on Left, Repeater-Builder RIM-Lite-V2 on Right
Option 1: Repeater-Builder, Masters Communications, or Digirig Mobile Interfaces
The Repeater-Builder RIM-Lite-V2 are very compact and have all needed lines on a DB9 connector. The Digirig Mobile are usually used for digital modes on portable radios, but for AllStar use may not provide any significant advantage over a CM108AH fob other than the metal case. Masters Communications also has metal case options but you're then up to around $100 and their interfaces are quite a bit larger than the RIM-Lite-V2. Any of these interfaces are good options but at $60+ they would be the most expensive part of the node.
Option 2: Modified CM108 Interface
CM108 USB interfaces work well but require some modifications, including soldering a resistor onto a ~0.01" (0.25mm) wide IC pin. If you have a microscope and experience with soldering surface-mount parts this is easy to do but otherwise can be challenging. The CM108 boards have well over 60dB SNR which is well above the typical end-to-end SNR of FM repeaters however they are also less resistant to RFI. I am still doing testing of these fobs to better characterize their noise resistance. At some point I'd like to produce custom CM108/119 boards with everything needed for this type of node, but in the meantime can provide hand-modified fobs for $35 shipped. Otherwise you'll want to obtain the below parts and do a bit of soldering.
- CM108AH USB Audio Interface - $4
- General Purpose NPN Transistor - $1
- 4.7KΩ Resistor - $1
- Small Ferrite filter for TX HT audio cable - $1
Total: $7
I had initially avoided CM108 fobs because of significant mods/hacks potentially being required, but in Feb. '23 did some further investigation. Testing revealed that the stereo line out audio is excellent (Hi-Fi/CD quality) but the (unmodified) mic input had some significant digital noise in the intended use with an electret mic. I then removed the bias resistor R6, tested on a PC again from an HT speaker jack output and found that the audio input then sounds great with over 60dB SNR. It turns out that most of the mods that people have been doing to these fobs are unnecessary. Various pages online say to remove the 3.5mm jacks and cut various traces but there's no need to do that. Doing so provides some extra small solder pads but the metal pads on the tops of the jacks already provide large solid areas to solder to. In about 15 minutes I can remove R6, add a 2N3904 transistor and 4.7KΩ resistor to CM108 pin 13 to provide an open-collector PTT output, and solder on the radio cables.
The CM1xx-series wide gain range supports HTs perfectly with no trim pots or resistors needed. I have the Tx gains on my node set at the default (500) and the audio level into the Tx HT is right where it should be. I did reduce the Rx gain somewhat (to 250) which gives an optimal input level with the RX HT volume control set at about 20%. The CM1xx also have a mic boost circuit, which should be left off (see App-Rpt settings below).
The CM108 datasheet shows that the ADC and DACs have programmable gain ranges of ~45dB, and I confirmed in asterisk/channels/chan_usbradio.c that ASL does set these gain settings in the IC based on the rxmixerset, txmixaset and txmixbset config settings. This provides a wide adjustment range while retaining the full dynamic range of the 16-bit converters.
Some C-Media ICs including the CM108B and CM119B can run with or without an external quartz crystal. Fobs that do not have a quartz crystal should be avoided, as the sample timing may not be as precise. The B versions also have a pop filter for the mic input, which rolls off low-frequency response and could be an issue in apps doing CTCSS decode, but since the RX HT does that in this node the pop filter is probably a good feature to have. Also note that C-Media fobs should be used. Other fobs are not as well made, don't have a crystal, or encapsulate the IC in a resin material preventing access to the pins. These fobs appear to have been made by C-Media themselves as evaluation boards, thus why they have a high build quality but no case or USB connector housing.
Some C-Media fobs are now using the AH version of the IC, with no other changes to the PCB or other components. An interface I built with a CM108AH fob has significantly more Tx audio gain than the B version. Note: In my tests so far the CM108AH fobs appear to have better noise performance than the CM108B's. I will post more detailed measurements of both soon but for now I do not recommend CM1xxB ICs.
There is a similar fob made by Syba that uses a CM119A IC. These go for $10, which is still very cheap. The Syba fob has a small plastic case and a USB connector metal housing which is nice, however the 3040's top USB ports are so close to the Ethernet jack that the Syba fob won't fit unless a USB extension cable is used. Thus the Syba is a good alternative, but there should be real reason to use one over a CM108AH fob in this application.
HT speaker outputs can drive loads as low as 8Ω and for minimum chance of induced noise on the Rx Audio line the fob should present a load resistance somewhere in the range of 100Ω to a few KΩ. The existing 1.2KΩ resistor R7 on the fob helps with this somewhat as it goes to a small filter capacitor to ground, though for the lowest possible noise a ~100Ω termination resistor could be added on the fob.
See the CM108 Sound Fob Modification section below for further details.
To improve RFI resistance and simplify the node appearance the fob can be put inside a small 1" x 1.5" x 3-4" aluminum enclosure. In that case a small opening should be provided so the fob's status LED is visible, or mount a standard 5mm LED on the enclosure (eg. with a panel mount LED clip) and wire it to the LED location the fob. Having an HT less than a foot away transmitting 1.5W can make for a challenging RFI situation.
All cables should be as short as possible and ferrite beads (such as Fair-Rite 2743002112's which are < $1 for Qty 10) should ideally be added to all I/O lines on the fob, including the USB 5V line. I've built over a half-dozen full-duplex radio-based nodes, some with metal enclosures and some with plastic enclosures and after various (sometimes major) optimizations have got them all working well, however the ones in metal enclosures have usually had fewer noise issues needing to be debugged and optimized.
Additional Required Components
If you've been doing ham radio and electronics for awhile you may already have some of the various wiring, audio plugs/cables, ferrite filters, etc. around the shack. Kenwood K1 connectors can be found on $2 headset speaker/mics, just cut off the cable and toss the rest. For the 2.5mm cable going to the RX HT just cut a 3' cable in half or use a 2nd K1 connector. The K1 connector cables have fine enameled wire which is more delicate but they work fine and are not hard to solder. Fine enameled wire does break easily however so it's important to then strongly secure the cable after making connections.
A 3.5mm TRS plug and 2.5mm TRS plug can be used instead of the K1 connector. 2.5mm right-angle cables can sometimes be harder to find or more expensive but it is nice to then have regular insulated wire. Currently I use 1 K1 connector for the Tx HT and a 2.5mm right-angle TS cable for the Rx HT.
A 2.5mm cable is not really needed for the Tx HT as it's only used for the Ground connection, and since we already connect to Ground with the power supply wires, that Ground could be used instead of the 2.5mm jack. However, since the 3040 is not connected to Ground, this would require that an additional ground wire be run from the radio interface to the HT power supply ground. Thus it's a little simpler to just use a K1 connector.
- 1 - 3300μF 16V or larger Low-Impedance Capacitor - $2
- 1 - K1 Speaker/Mic Right-Angle Connector and Cable - $2
- 1 - 2.5mm Right-Angle TS or TRS Audio Cable - $2
- 2 - Medium Ferrite filters - $4
- 2 - Small Ferrite filters for HT power wires - $2
Total: $12
Some basic wiring (such as 24 ga. Hookup wire) is then needed to connect the above together. If you plan to leave the node in one place such as on a shelf or in a closet then you might not need an enclosure, but I recommend mounting the MiniPC and HTs on a ~10"W x 4.5"H aluminum or steel mounting board with the power supplies, power switch and wiring in a small box on the back.
Recommended / Optional Components
These are what I have used but there are many different ways to build a node so you may not need any of the below or may already have various items that will do what's needed. I recommend a metal enclosure as this provides a nice solid RFI-resistant box to enclose the power supplies and mount the radio interface in or on, minimizing chances of RFI/noise.
- 1 - 6.3" x 4.1" x 2.1" Extruded Aluminum Enclosure - $27
- 1 - 10" x 4.5" x 0.040" Mounting Plate - $9
- 1 - Illuminated power switch for HT power supply - $2
- 1 - 6dB 2-Watt SMA Attenuator - $5
- 1 - IEC power inlet connector for enclosure - $2
- 1 - IEC grounded power cord 6' - $2
Total: $47
To simplify the enclosure and reduce costs a larger enclosure with no mounting plate can be used with the HTs mounted on the sides. Or a longer box could be used with the HTs mounted on the front, ideally 10" x 4.5" x 1.75", but this is not a common size and I was not able to find anything reasonably priced. Off-the-shelf boxes/enclosures in longer lengths tend to also have larger widths/depths. For example 10 x 5 x 3 are easier to find, but take up almost twice the volume. Or you could make your own enclosure out of aluminum, copper, stainless steel, or a surplus equipment case.
The above can be purchased directly from numerous sources or I can provide any of the above parts in a Kit. Prices shown are my total price for each item and Qty and I would add a flat rate shipping and handling charge. If you just need a few things it may be more cost-effective to get them directly from Amazon/Ebay/Mouser/DigiKey/etc., but if you need a number of the above items it may be more cost-effective to go with a kit. Contact me with any questions on that. Parts availability does often change so you may need to look around a bit or improvise. Amazon and ebay have pretty much everything you need at good prices and traditional electronics suppliers like Mouser and DigiKey are really only needed for more specialized components or where quality is important, for example I get filter capacitors and semiconductors from Mouser or similar US distributors to be sure I'm getting genuine high-quality parts meeting all stated specs.
Enclosure Options
Die-cast or extruded aluminum enclosures are essentially indestructible and have a nice "industrial" look. ABS, polycarbonate, or other plastic enclosures are also very durable, cost ~$10 less and are a little easier to cut and drill. RFI can be more likely to occur with non-metallic enclosures thus I would generally recommend going with aluminum. Steel can work also but is harder to cut and drill. Black enclosures match the RT85s and 3040 very well, giving a professional look. Aluminum or steel boxes are available anodized, painted or powder-coated for a small additional cost.
Optimizing/fixing RFI/noise issues can vary significantly from node-to-node, some work great right from the start, others sometimes need some significant debugging and may have a bad USB cable or any number of issues that can take time to narrow down. I do recommend that a metal mounting plate be used as this provides a nice solid ground plane that will help shield nearby cables and components.
With a 10"x4.5" metal mounting plate, which has a nut, bolt, star washer and ground lug near the IEC inlet, the power cord ground wire and metal plate provide a nice ground plane that minimizes RFI while also providing better antenna loading. The HT power supply ground also goes to the ground lug. To prevent ground loops however the MiniPC power supply should not connect to ground.
At VHF and lower frequencies where wavelengths are relatively long, RFI 99% of the time comes in on cables/wires rather than being directly induced on PC Boards or components. Thus a metal enclosure won't help if there are long cables running around that do not have appropriate grounding and ferrite filters. RFI in VHF/UHF nodes is more likely to be solved by keeping all cables as short as possible, using ferrite filters and ferrite beads where needed, and avoiding ground loops by using a star ground configuration.
My local Industrial Metal Supply cut 10 mounting plates for me from 0.040" black painted aluminum for about $6 ea, though they are black on one side only and still need some spray painting. I'm getting some quotes on custom fabricated enclosures that will be nicely finished with all needed mounting holes pre-drilled and cut. These should look great and save easily 1-2 hours of time per node in cutting, drilling, rounding corners, filing edges, and painting.
For a home node a case is not necessary, but for better portability and durability the node components should be mounted in/on an enclosure such as a project box, mounting board, or a clear plastic carry case. Everything is then better integrated and self-contained.
Optionally all components can be mounted inside (as opposed to on) an enclosure or case. By setting up the MicroPC BIOS to turn On by default after power is applied, and because the RT85's have a regular analog volume knob with on/off switch, no access is needed to the PC or radios once they have been configured. It's preferable to have these easily accessible and clearly visible, but if the node will often be taken portable in harsh environments it's probably better for the PC and HTs to be inside an enclosure. With this approach however a cooling fan and some ventilation slots are needed to prevent heat buildup.
Clear visibility of the PC, HTs, and radio interface is important. Sometimes things happen on AllStar such as disconnects or timeouts and it's nice to be able to look at the node and be able to see the HT LCDs and Tx & Rx LEDs and the LED(s) on the radio interface.
Using right-angle 2.5mm & 3.5mm or K1 plugs to go into the HTs greatly reduces the amount of space taken up by the plugs, and the small CM108 USB interfaces save additional space. With those optimizations everything fits nicely on a 10" x 4.5" mounting plate, and an enclosure as small as 7" x 4" x 1.75" can be used for the power supplies.
With everything on a mounting plate the MicroPC can be turned on and off with its power switch, a separate power switch for the HTs can be used, and the node is then easier to use and more portable, with total dimensions as small as 10" x 3" x 5". An ABS, polycarbonate, aluminum or steel box on the back can nicely enclose the power supplies and wiring, preventing the Spaghetti-wiring found in many shacks. Or instead of a separate mounting plate and enclosure a single larger enclosure can be used, but this would be less space-efficient.
Aluminum or powder-coated steel for the mounting board and/or enclosure ensures maximum durability and reduced chance of any RFI issues while also not being flammable like most plastic materials.
For portable applications a small LiFePO4 battery and charger could be included in the enclosure allowing the node to work anywhere that wifi is available.
Setup Steps
Dell Wyse 3040 Micro PC
Installing ASL on a Dell 3040, other Mini/Micro PC, or Netbook is not hard if you're experienced in building/maintaining PCs. The 3040's have a UEFI-only BIOS that needs the boot file in a specific place. Making a UEFI USB drive is simple: Download the ASL install image, then format the USB drive as FAT32 and unzip the image files onto it. The USB drive has to have the ASL image files on it with no other modifications. Do not try to make it "bootable" using some other program as that will make it a "legacy" boot format which will not work.
To initially set up a 3040 requires a USB keyboard and a monitor/TV with a DisplayPort cable. Plug in the keyboard and DisplayPort cable. Power up the 3040 and when you see the Dell logo hit F2 to enter BIOS setup, and review the various settings. Make sure all USB ports are enabled, USB boot is enabled, and "secure" boot is disabled. You should not need to change anything on the boot order page. Once you have confirmed the BIOS settings, save and exit, and then when you see the Dell logo hit F12 for the boot menu, then select the USB drive. The 3040 will then boot from the USB drive and will guide you through the ASL installation.
The Intel/AMD ASL image is an installer image intended to boot on a removable device and install Debian and ASL on an internal storage device (or on a separate removable USB/SDCard). This differs from the RPi image which goes on an SD Card, into the RPi, and the install is done. The Debian installer is pretty simple and takes about 10 minutes to complete. The default options should all be fine. Make sure to install to the MicroPC's internal eMMC drive, overwriting ALL existing partitions.
The Intel/AMD ASL install image is based on the Debian Linux installer which has the boot file where the 3040 expects it. However, once the install finishes to the 3040 internal flash, ASL itself does not have the boot file where the 3040 expects it, so there is an extra step required. You now need to boot a UEFI clonezilla USB drive, select the "Local operating system (if available)" boot option and then the Debian OS option, and then do the following:
sudo mkdir /boot/efi/EFI/BOOT sudo cp /boot/efi/EFI/debian/shimx64.efi /boot/efi/EFI/BOOT/BOOTX64.EFI
Then remove the USB drive and power cycle the PC. It will then boot fine, and the rest of the AllStar setup process is then the same as on an RPi. Refer to the AllStarLink.org Install Guide to complete the node configuration and properly provision it on the AllStarLink Web Portal.
Installing on other Thin Client models or on a Netbook should be even easier as those shouldn't need the boot file to be renamed or for Clonezilla to be used. Note however that Chromebooks should be avoided. Only use a Netbook if it already has a properly working Linux OS, not ChromeOS which is a closed and encumbered platform.
Recommended App-Rpt Settings
This node design can be used with either hardware COS or with usbradio's carrierfrom=vox mode. Each has its advantages. Adding a COS line to the RX RT85 has an advantage of ensuring reliable RX Carrier Detection even if a node is used in a quiet environment while you talk quietly or with frequent long pauses. It's nice to know a node will support such cases with no unintended carrier detect drops. And with a hardware COS line the simpleusb driver can be used, which in my tests has the same frequency response and audio quality as the usbradio driver while using significantly less CPU. I recently discovered however that hardware COS can also have issues. I observed on 4 different HT models and 2 different mobile radios in my shack that Tone Squelch will prevent audio from being heard if the transmitter does not have the correct PL Tone but it will not prevent the radio's RX LED from lighting up. Thus it appears that any mod to obtain COS from an RX LED will result in a COS line that will be triggered by any received signal even if there's no PL tone. This could be an issue in areas with a lot of RF activity or if using a higher gain outdoor antenna.
The usbradio carrierfrom=vox mode is thus a better solution for the case of ensuring the node cannot be unintentionally keyed by received noise or other signals not having the correct PL tone. I have not confirmed on radios that provide COS eg. on a MiniDIN6 connector if that type of COS line exhibits the same behavior, but those types of radios should also have an unfiltered discriminator audio output and thus in that case CTCSS decode can be done in ASL if need be. As mentioned before though, radios that provide those IO lines are more expensive and use more power.
Thus for an HT-based node there is a tradeoff between hardware COS not being able to prevent signals with no PL tone from keying the node, vs. usbradio's vox mode carrier detect not being perfect in situations where input audio levels are very quiet. Thus if you like to talk quietly with a lot of long pauses, hardware COS is probably better for you, but if you want to be sure your node won't be keyed up by signals not having a PL tone, usbradio carrierfrom=vox mode is the way to go. Alternatively for 100% reliable COS and Tone Squelch a cheap mobile radio could be used for UHF receive that has a data connector providing COS/COR and discriminator audio. Used for receive only this would have low current draw, and some smaller mobiles are very compact.
Tests I ran on a 3040 (which has 4 CPU cores) doing a full-duplex parrot test showed the simpleusb driver uses about 25% CPU (6% total CPU of all 4 cores), and the usbradio driver uses 40% CPU (10% total CPU all cores) with the same settings ie. carrierfrom=usbinvert, no DSP or CTCSS, etc. Tests I did with the Linux 'htop' command confirmed that asterisk does appear to use all 4 CPU cores thus there should be plenty of headroom on the 3040. As the simpleusb driver is more CPU efficient it should have better overall performance, lower power use, and be capable of handling more simultaneous connections. Thus I do recommend hardware COS when practical and the simpleusb driver, but the usbradio driver and carrierfrom=vox mode do work very well in a wide variety of use cases.
Also note that testing I have done of the usbradio driver (using the iaxRpt PC app recording directly (software loopback) into Audacity) showed that usbradio always hard-limits the outgoing IAX audio, which results in a significant reduction in overall dynamic range and loudness. Thus I recommend using the simpleusb driver if possible as this transmits the Rx audio over IAX exactly as it came in from the ADC. Usbradio's limiting could be useful if it was more flexible but there seems to be no option for makeup gain thus all audio is limited to <~-10dBFS, thereby resulting in up to 10dB of lost dynamic range.
rpt.conf Recommended Settings
rxchannel = Radio/usb_[node#] ; Comment out all other rxchannel lines duplex = 3 ; Full-duplex, do not repeat Rx audio to Tx audio hangtime = 100 althangtime = 100 ;linkunkeyct = ct8 ; Comment out to prevent courtesy tones when connected holdofftelem = 1 telemdefault = 0 ; Prevent "node X connected to node Y" messages parrotmode = 1 ; 1 = Parrot On Command ;Uncomment following lines: 921 = cop,21 ; Enable Parrot Mode 922 = cop,22 ; Disable Parrot Mode
usbradio.conf Recommended Settings
rxboost = 0 rxctcssoverride = 1 carrierfrom = vox voxhangtime = 500 ctcssfrom = no rxdemod = speaker txprelim = no txlimonly = yes txtoctype = no txmixa = no txmixb = voice rxlpf = 2 rxhpf = 1 txlpf = 1 txhpf = 1 duplex = 1
simpleusb.conf Recommended Settings
If you have a hardware COS line from the RX HT then use the simpleusb driver and make sure to update the rxchannel setting in rpt.conf accordingly and load the simpleusb driver instead of the usbradio driver in modules.conf.
rxboost = 0 carrierfrom = usbinvert ctcssfrom = no txmixa = no txmixb = voice duplex = 1
Updating to the Latest ASL Code
The ASL install image is rarely updated thus to get the latest features and bug fixes requires downloading and compiling the latest code and fully updating the OS and packages. This takes about 10-15 minutes to do, as follows:
- Log into the node by SSH as root (run "sudo su" if not already root user).
- Run the command listed on the ASL GitHub Prerequisites - "Install apt dependencies" section. Note: The "Repo" steps should not be necessary and are not recommended.
- Run the 5 commands listed on the ASL GitHub Compiling - "Manually" section.
Your node should now have the very latest ASL code, fixes and features. If you see any error messages, go to the ASL Forum App_rpt-users Category, do a search there to see if the error message was already reported and a solution provided, or if not open a new Topic there and describe the error(s). You should then likely get a response within a few hours or so. Because ASL is currently in the process of Beta testing the 2.0 release there can occasionally be compile errors but they are usually easy to resolve thanks to the many excellent devs and contributors.
After setting up any node I recommend checking the system logfile /var/log/syslog periodically to make sure there are no error messages shown during system boot and normal operation. I have seen errors with some ASL versions where an invalid command in /etc/network/if-up.d/firewall causes the networking service to exit and thus the node will lose its DHCP IP address after half a day or so (bug report). This is easy to fix by commenting out the 1st line in /etc/network/if-up.d/firewall. I have also seen an issue where the cron entry set up for AllMon is not valid preventing Allmon's astdb file from getting updated. If you don't use Allmon it's not an issue but is easy to fix by adding a cron command similar to the one set up by Supermon (eg. run "sudo crontab -e" and add a "0 9,21 * * * (/usr/sbin/astdb.php cron)" line at the bottom). There are other known issues in older ASL code that have already been fixed in the latest code, and these couple other fixes will probably be merged soon.
Voxhangtime Adjustment and Timing
When using ASL's usbradio driver in carrierfrom=vox mode there is by default a hardcoded 2000mS VOX Hangtime added that results in 2 seconds of silence being added after transmissions to the node. This is not an extremely long time considering that repeaters already have a hang time and courtesy tone delay of anywhere from 1 to several seconds, but it is a noticeable delay and I found that it works more optimally when reduced to more like 500mS. I submitted a Pull Request to the ASL codebase in November to make this hangtime configurable by adding a voxhangtime parameter to usbradio.conf, and this was merged into the ASL code in Feb. 2023.
With the latest ASL code now on the node (after running commands in the "Updating" section above), edit the /etc/asterisk/rpt.conf file and make sure voxhangtime is set to around 500 (mS). Then restart the node and test some transmissions using parrot mode (*921 to enable, *922 to disable). If all is set up correctly transmissions into the node from your radio will be reliably detected with no dropouts (even if you're not talking or are quiet for a short time) and once you unkey the node will show that COS dropped within approximately 1 Second.
Timing measurements
When in full-duplex (duplex=3 in rpt.conf (not 2 or 4)) the hang time on the local RF TX is longer, but the node is not actually transmitting audio to the network during that extra time (beyond when RX CD dropped). It probably stays keyed a bit longer to prevent more squelch tails and because it is full-duplex and thus you can key up any time without having to wait for the node to unkey first. Thus it appears App-rpt took that into consideration and is making it work a little more like a repeater in this case, giving a little extra hang time after each TX is complete so if you or a remote node key up there's no unnecessary carrier drop and extra squelch tail.
To better characterize the timing I set up a script to get the rpt keyed vars from asterisk every 50mS, then keyed up for a fraction of second, enough to trip CD. Results:
time 1671868925.527 [cos_keyed] => 1 [tx_keyed] => 1 time 1671868926.803 [cos_keyed] => 0 [tx_keyed] => 1 => diff: 1200 mS time 1671868929.321 [cos_keyed] => 0 [tx_keyed] => 0 => diff: 2500 mS
This timing works great for me. The extra 1.2 seconds of space is not noticeable or annoying during a normal QSO on a repeater, where there's already several seconds of hang time and a courtesy tone. When voxhangtime was 2000mS (vs. 500mS now) it was much more noticeable and the time to drop COS was closer to 3 seconds.
Power Supply
Most HTs need a well-filtered DC power supply, as they're designed to run primarily on battery power and probably don't have much if any filtering or regulation. HTs will run much cooler on 7-8V and should not be run any higher than that for high duty cycle node TX. It's easy to find inexpensive DC power supplies (~$10) or step-down regulators (~$5) on ebay that have a variable voltage regulator IC, filter capacitors, and terminal block connections. A larger filter cap eg. 2200+uF can further reduce any power supply ripple. To get power to the RT85's I solder 24 ga. power wires onto the battery contacts on the back of the radio. HTs can be run on their included batteries but for a node that will be transmitting a lot it's better to not constantly charge and discharge them or have the battery die during a longer QSO or net. If you already have a 12V battery system, that could provide plenty of clean power, but HTs can overheat if run at high duty cycle on 12+V (even if on the low power setting) thus a step-down regulator / DC-DC converter should then be used.
Power to the radios is best provided by a small switch-mode power supply. AC adapters have come a long way in recent decades, they used to have only a transformer, rectifier and small filter cap providing unregulated output with a lot of ripple which can easily cause 60Hz hum if used to directly power an HT, but now have good regulation and go through many certifications. Some switching supplies can cause RFI (birdies) in the HF bands on harmonics of the switching frequency (typically 100KHz or as high as 1MHz) but if you confirm that's not an issue for a specific adapter you'll then have a clean, inexpensive, compact and energy-efficient power source. Adding a ferrite filter and filter capacitor will ensure even lower noise.
My measurements of the RT85's show that at 7.5V they have the following Current Draw & Power Output:
Off: 3mA Standby: 100mA Low Power: 475mA ~1.5W Mid Power: 906mA ~2.8W Hi Power: 1020mA ~3.7W
A 7.5V DC 2A power supply thus easily accommodates 1 HT in receive and 1 HT transmitting low power, with plenty of margin. Note that a node Tx radio should only be used on Low transmit power because of the high Tx duty cycle. The RT85's Low power setting is already significantly higher than most HTs (1500mW vs. more like 500mW on most other HTs or as little as 100mW on HTs with an Extremely Low power setting). These power supplies are widely available on ebay/amazon for as little as $6. I've tested several models and they have all worked well, but ideally a 2200+uF capacitor should be added which will reduce any remaining ripple to < 1mV. Because switching-supplies switch at a high frequency there should be little or no 60Hz harmonics on the output and large filter capacitors should not be needed but some additional small capacitance is good to eliminate any remaining switching noise. Switching supplies are used with many devices such as internet routers and other electronics and they do not seem to cause any RFI issues at the QTH. Be sure to test any power supply for RFI issues though as every situation can be different and just one poorly designed power supply in your house or even a nearby neighbor's house could impact your HF and VHF noise levels.
The power adapters can be placed on the back of the node thereby keeping them out of the way and organized. And a metal or heavy-duty plastic enclosure for the power wiring and components provides a support base to anchor things to and enables the node to stand solidly upright.
Note for hams in areas with 100V/220V/240V mains voltage: Most of the AC-DC adapters I have used are autoranging adapters that will work on 100-240VAC automatically with no adjustments necessary. The nodes I build have the adapters in an enclosure with IEC C13 power inlet, thus you'd need to provide only a standard power cord going from an IEC C14 plug to the type of wall plug you use. There are a variety of adapters that can come with the 3040's, so you'd want to confirm with me before ordering but I should usually have at least one in stock that supports 100-240V, and the HT power adapters I use all support 100-240V.
Wiring Notes
For the power wires I solder 2 24 ga. wires onto the battery contacts on the back of the radios. Just pre-tin the wires and the contacts and the wires can then be tacked on in less than a second, and can be easily removed later if need be.
The node ideally should have either one AC power cord or one 12VDC power cord that connects to the power supplies for the PC and HTs. The node can easily run on 100–240VAC or 9–16VDC. To run it on 12V use DC-DC converters instead of AC-DC adapters, which are widely available for < $2 ea., and a 5.5x2.1mm DC Power Jack instead of an IEC inlet. Dell Wyse 3040's are often available on ebay without AC adapters at a significant discount.
The above details will result in a nicely-integrated node, with a single power cord and separate power switch for the HTs, that's easy to access, power on/off, change radio settings, etc., with the mini-PC and HTs fully visible and well ventilated. (Many past designs have opted to hide things in a box, which results in overheating and thus reduced component lifetimes, while making it harder to see what the node is doing or requiring additional wiring and components to bring additional LEDs or connectors to the exterior of the box.)
Radio Interface Cable Wiring
Making cables to go to 2x 2.5mm plugs and 1x 3.5mm plug can take a little effort for professional-looking results, but with a decent soldering iron (such as this) and a stereo microscope it's easy to do.
Wiring - Modified CM108 Sound Fob to Kenwood, Retevis, TYT, QRZ, etc. HTs
Line Out Jack Ring ----- TX HT 3.5mm Ring (Tx Audio) Transistor Collector --- TX HT 3.5mm Sleeve (PTT) Line Out Jack Sleeve --- TX HT 2.5mm Sleeve (Ground) Mic In Jack Ring ------- RX HT 2.5mm Tip (Rx Audio) Min In Jack Sleeve ----- RX HT 2.5mm Sleeve (Ground)
Wiring - RIM-Lite V2 to Kenwood, Retevis, TYT, QRZ, etc. HTs
DB9 Pin 1 --- TX HT 3.5mm Ring (Tx Audio) DB9 Pin 3 --- RX HT 3.5mm Ring (COS) (optional) DB9 Pin 5 --- TX HT 3.5mm Sleeve (PTT) DB9 Pin 6 --- RX HT 2.5mm Tip (Rx Audio) DB9 Pin 8 --- TX HT 2.5mm Sleeve (Ground) DB9 Pin 9 --- RX HT 2.5mm Sleeve (Ground)
Wiring - DRA-30 to Kenwood, Retevis, TYT, QRZ, etc. HTs
DB9 Pin 1 --- TX HT 3.5mm Ring (Tx Audio) DB9 Pin 3 --- TX HT 3.5mm Sleeve (PTT) DB9 Pin 5 --- RX HT 2.5mm Tip (Rx Audio) DB9 Pin 6 --- TX HT 2.5mm Sleeve (Ground) DB9 Pin 9 --- RX HT 2.5mm Sleeve (Ground)
Ferrite Filters, Filter Capacitors
Clip-on ferrite cores are needed on at least some of the cables. The Laird 28A2029-0A2 work well and have enough room to allow cables to be wrapped 2 or 3 times. They are less than $1.50 ea. in Qty's of 10, and often come in handy for other things around the shack. One of these is recommended on the cable from the HT power supply, and may be needed on other cables depending on your specific setup and RF environment.
Ferrite filters should generally be used with any switching power supply, with the cord wrapped around the ferrite a few times. Without that there can be significant buzz that comes through. This is a known issue with nodes in general, relating to Tx RF being picked up by the power cord and then causing 60Hz harmonics when the diodes in the power supply are near their zero-crossing points where they can be modulated by induced RF. This results in a broadbanded buzz on 60Hz harmonics that gets louder and quieter as you move antennas or cables around or move around with your HT that you're talking to the node with. Ferrite cores placed appropriately can reduce this by 99+%.
Ferrites should not be needed with linear power supplies because linear regulators do not produce high-frequency switching noise. Linear power supplies put out more low frequency ripple however, thus it can be even more important to add a good quality filter capacitor. As a general recommendation for any node, the output ripple of any power supply, converter or regulator should be < 1mV AC, and at least 2200uF of low-impedance capacitance should be added to the power supply output to achieve that, and for switching supplies a few turns of the DC power cable should be wrapped around a ferrite core as close to the power supply case as possible.
A ferrite filter was definitely needed with my RPi node on the USB cable going to the audio interface, but on my Dell 3040 nodes no ferrite is needed there. This is good news as it confirms that the FCC-certified Dell does in fact put out much less EMI/RFI than my RPi4 (which is in a high quality Vilros metal case). Thus this is another advantage of the Dell 3040 (which has about 15 different certification logos on the bottom) over RPi's.
A ferrite core will likely be needed on the RX and TX audio cables, but sometimes neither is needed depending on the cable lengths, routing, shielding, etc. In general the more ferrites the better. A a ferrite on the Tx audio cable is usually needed. Particularly if you're listening to a node on an SDR with full audio bandwidth and no deemphasis, which will reveal much more detail than a normal radio that filters down to ~ 300Hz - 3KHz. An SDR can thus help to even further reduce quiet noise that wouldn't be audible on a normal radio. In total 3 or 4 ferrite cores will probably be needed. The Dell 3040's supply probably won't need one but the HT power supply most likely will. The same would probably apply to a node that runs off 12V using switching DC-DC converters.
Everyone's RFI/EMI environment can be different. As with with any product or project, you may run into issues and need to do some debugging. You might need to add some extra ferrites on certain cables, additional filtering/regulation on your DC power supplies, or move some things around on your desk or in your shack. Any time a receiver is amplifying signals in the < 1μV range it's easy for interference to occur if you have a noisy power supply nearby, or you're too close to a cell tower, wifi devices, power lines, or other possible EMI sources. Keeping the node antennas as far as possible from other electronic devices is also generally a good idea.
When building or optimizing a node it's important to measure the Signal-to-Noise Ratio of both the receive and transmit audio paths. This can be done by connecting the speaker output of any radio or receiver to a PC audio interface / sound card, recording the node's RF output signal, then normalizing the file to 0dB and looking at the noise level in the quiet parts. Note that SDRs are not recommended for this as they often have inconsistent results due to the numerous settings options they have with gain, bandwidth, and filter parameters, and they may have higher noise due to being USB-connected devices. A good quality analog radio is better for test purposes, and ideally should be run on battery power with no connections to any equipment other than the audio recording interface.
When you first assemble a node you might get lucky and it might have perfect audio quality and no noise on both transmit and receive, in which case you don't need to test anything, but things are usually not that simple. Achieving a more general design approach that is highly resistant to noise or any other issues in the widest range of conditions is an ongoing R&D process. If you have talked to other node builders or built nodes yourself you probably know that consistently getting 50+dB SNR through the whole Rx + Tx signal chain on a node is not easy – especially on a full-duplex node. Noise can be introduced in the RX HT, interface ADC and/or DAC, in the TX HT, or on any cabling in-between.
It'd be great if you could just hook these things up and have everything work perfectly, but the 1+Watt of RF energy being transmitted right there on the node makes this easier said than done. I have had excellent results with the nodes I've built and continue to refine the design. With proper testing and optimization the result can definitely be indistinguishable from Analog FM.
This document started as a quick How-To Guide but has become quite lengthy, providing a lot of info on building a node but also illustrating that it is in fact not easy to build a truly high-quality full-duplex node that's also compact and inexpensive. I'd generally not recommend this type of project for those who are not skilled in electronics, but even in that case, if you have the time and patience the best way to learn about AllStar, RF, computers and electronics is to build things and debug and optimize them until they work very well with no compromises.
Signal-To-Noise Ratio (SNR) Optimization
In having done extensive audio quality testing and seeing SNR's of anywhere from 40–60dB in various scenarios it was necessary to fully investigate all possible noise sources and optimize the design to ensure consistent results as close to 60dB SNR as practical in all cases. After weeks of testing, including building audio interfaces using various combinations of CM108B and CM108AH USB fobs, Repeater-Builder RIM-Lite V2's, audio isolation transformers, termination resistors, optocouplers, etc. I have things now pretty well optimized and consistently delivering 60dB transmit SNR (node transmit only) and 54dB round-trip full-duplex SNR (node and other radio simultaneously transmitting).
Full-duplex nodes are more of a challenge to minimize noise on because one RT85 is transmitting 1.5W in Low power (on 2m) while the Rx RT85 is less than a foot away (on 70cm), all while you're also transmitting into the node on another radio on 70cm. The following graphic illustrates SNR measurement results on a variety of nodes, radios and radio interfaces, along with S-Unit equivalents, and comparisons to typical audio equipment quality levels. Note that SNR is not the only important measurement of noise performance, as the type of noise and spectral distribution and randomness are also important, but SNR is one of the first things that should be tested in order to quantify overall clarity.
Measured Signal-To-Noise Ratios of various Nodes and Radios

It was a nice surprise to find that the RT85s have 60dB of Tx SNR. This is ~10dB higher than 5 other radios I tested. (This test requires the mic gain to be set to 0 or input shorted since we are looking for the Tx audio noise floor). This is very impressive for a $25 HT. 60dB SNR on a node is a clean, clear, and professional-sounding result, easily on par with typical end-to-end Analog FM SNR's on even the best repeater systems. 60dB in real terms means that the noise is literally 1 million times lower in acoustic power than the signal.
Another interesting note is that the C-Media fobs now are available with a CM108AH rather than CM108B IC, and so far I notice the audio levels are quite a bit higher, and the overall noise is lower. I'm still doing further testing and optimizations on the radio interface to keep the cost as low as possible while being easy to assemble but delivering very clean audio with essentially zero discernible noise in typical listening conditions.
For these measurements I record the node's transmit audio from the audio output of my IC-9700 into a 24-bit audio interface, normalize the levels such that open squelch gives 0dB (max) signal level and no clipping on the interface, and then look at the signal and noise levels and noise spectral analysis in a wave editor (see Screenshot showing 60dB SNR during transmit hangtime after RXCD drop from an ANF101 with Repeater-Builder RIM-LiteV2 interface). Because the RT85's are capable of 60dB SNR we know that if the resultant SNR through the node is any less than that there is room for improvement.
Once the SNR is consistently above 50-55dB with the node operating Full-Duplex it will sound very clear, with no background noise audible unless you are in a quiet room and turn the volume up fairly loud. At that point there can in some cases still be some faint digital noise, usually comprised of harmonics of 60Hz and 1KHz from power supply and USB connections. Even at a low level this can be somewhat distracting/annoying, even more so than quiet broadband white-noise that might be 10+dB louder. Thus whenever building a node I ensure all such noise is properly fixed, which can require a lot of testing and optimization but becomes easier once you have properly measured and characterized the SNRs, gains, and source and load impedances of all the node components. If you usually use a node in a mobile or loud environment you would probably be just fine with a 30dB SNR, but for quieter home/office environments closer to 60 dB is definitely preferable.
CM108 Sound Fob Modification
Modifying a generic ~$5 CM108 Sound Fob will result in a major cost savings vs. expensive radio interface modules, and is easy to do if you have experience working with surface-mount electronics. However, in my experience so far the Repeater-Builder RIM-LiteV2 does provide at least a few dB lower noise, probably due the PCB having numerous ferrite beads and being a more thorough design than the fobs. But if you don't mind slightly higher noise the CM108 fobs are very inexpensive, and can be modified as follows:
- Remove resistor R6
- Attach a 2N3904 or other general purpose NPN transistor Emitter to Ground
- Attach a 4.7KΩ resistor between the transistor Base and Pin 13 on the CM108
- (Optional for Hardware-COS) Attach a general purpose NPN transistor Emitter to Ground, attach a 4.7KΩ resistor between the transistor Base and the COS line from the RX RT85, and connect the transistor Collector to Pin 48 on the CM108.
- Connect the radio cables as described in the Radio Interface Cables section above
- Secure the cables to the fob using small zip ties or silicone, or enclose the fob in clear heat-shrink tubing
Closeup of a CM108B Fob with Added PTT Output

Note at the top middle there are 3 light brown capacitors in a row. The top 2 are on the Tx audio lines and the lower connects to ground. Thus the right side of the top one is a great place to connect the Tx Audio wire, and the right side of the bottom one is a great place to connect to Ground. Notes on the above image:
- A 2N3904 transistor fits perfectly between the 2 3.5mm jacks and its Emitter then connects to Ground on the right side of the light brown capacitor there
- The Base of the transistor then connects to a 4.7KΩ resistor which then goes to Pin 13 on the CM108
- The Tx HT cable (K1 connector) has 4 wires:
Red: Tx Audio - connect to right side of top light brown capacitor
Gold: PTT - connect to transistor Collector
Blue: Ground - connect to right side of lower light brown capacitor
Green: Not used - fold back and cover with a small piece of heat-shrink tubing - The RX HT cable connects to the Mic Jack as shown. Note that some cables have red and white reversed. White is supposed to be channel A (Left) which is on the 3.5mm Tip. But many cables (such as the one above) instead have red connected to Tip. This then can go to Tip or Ring on the 3.5mm jack on the fob which are connected together since CM1xx mic inputs are mono
Modified CM108 Interface with 2.5mm and K1 Connectors Before Enclosing in Heat-Shrink Tubing

With heat-shrink tubing properly applied the fob feels very solid and durable and the cables stay tightly in place.
Another advantage to this approach is that the 3.5mm jacks on the fob are still fully intact and usable. This is very useful for test/debug purposes, and the node can also be used with a speaker-mic or headset with the radios off. However the speaker-mic/headset would probably need different audio level settings which would require some adjustments to the usbradio/simpleusb gain settings, and most have electret mic elements that require DC power to be provided on the mic audio line. It would be easy to make a small interface board though that did the necessary level conversions, which would enable the node to also support speaker-mics/headsets.
Radio-Less Node Notes
See my other How-To Guide for details on building a high-quality full-duplex Radio-less node, which can be built with just a Dell 3040, CM108 interface and a half-dozen small parts. These can also be easily integrated into a regular node with radios, making for a great add-on option enabling a speaker and mic to be used when desired with no need to turn on any radios. In that case an extra potentiometer is needed to match the microphone and RX HT output levels but aside from that the radios and/or the mic and speaker can then be used at any time or at the same time.
Radio Settings
Be sure to set up the node radios with CTCSS Tone Squelch enabled, to prevent possible QRM from causing the node to transmit. And enabling Tone Squelch on your other radios will then shorten/eliminate squelch tails. Also check your local 2m and 70cm band plans (eg. in Southern California TASMA.org and SCRRBA.org) to find simplex frequencies specifically intended for analog FM hotspots so you won't possibly interfere with repeaters or calling frequencies.
Comments re. Frequency Coordination from Jim NO1PC: "...Hotspots are a 'new niche' not fully encompassed amid the more well-known realms of ATV, SSB, EME, repeaters, simplex, etc. Some regions have specifically addressed this, some not yet. "The ARRL Band Plan" is wholly inadequate in addressing this, but then they vacated much of the issue a decade or so ago. ... There are 53 repeater coordinating/spectrum management organizations in the United States. Links to them are provided by at least the following two web sites: https://w2xq.com/bm-repeaters.html, https://repeaters.us/"
When picking your node frequencies be sure to consult the above sources, and verify the frequencies are not being used by other nearby users or systems.
A general note on tone squelch settings, Yaesu HTs (FT-530, FT5D) have very good squelch that drops quickly (maybe ~20mS max) and quietly, and my Icom-9700 is even faster with basically no squelch tail at all, but the Kenwood TH-D72 and D74 are not so quick and have a much more noticeable squelch tail, more like 50-100+mS and fairly loud. Therefore I enabled Tone Encode on the node TX HT and Tone Squelch on my other radios to minimize squelch tails after the node unkeys. Both Kenwoods now drop squelch immediately ie. no squelch tail at all. The FT-530 doesn't drop squelch any faster with Tone Squelch on but that's fine as the tail was short and quiet to begin with.

Important Note: Nodes (even if simplex only) can run at a 100% Tx duty cycle during nets or long QSOs, HTs don't have fans built in, and even at the lowest power setting HTs can get very hot if run at a higher voltage such as 12V, but will stay MUCH cooler at a lower voltage. My first homebrew node uses a Yaesu FT-530 which will run on anything from 6 to 16 Volts but to minimize voltage across the final I run it on 6-7V and it barely even gets warm at 100% Tx duty cycle. Transmitters typically have an RF final output transistor operating linearly between Vcc and Ground and thus even at the lowest power setting the transistor is dissipating the majority of the voltage across it. Therefore reducing Vcc to the minimum necessary will greatly reduce the heat dissipation and energy use of the radio. Power dissipation = V×I, so by running an HT off of 6V rather than 12V and transmitting low power the power consumption and dissipation of the RF output section should be ~half as much. I confirmed this on the FT-530, which gets very hot during continuous Tx on 12V but barely even gets warm when run on 6-7V. As for the RT85's I have never tried running them on 12V and would not recommend that but when run on 7.5V they barely get warm even when transmitting 1.5 Watts for hours.
Installation of a COS Line in an RT85 (Optional)
See this page for details on how a COS line can be installed in an RT85 if desired. This is not necessary if using the usbradio driver carrierfrom=vox mode, but having a hardware COS line can provide a more reliable COS signal ie. in cases where you're transmitting 1+ Watt from or adjacent to the node and do not have ferrite filters everywhere they should be or if you use the node in quiet environments and tend to talk quietly with frequent long pauses.
By adding a resistor and transistor in the RT85 and connecting the resulting open-collector active-low COS output to the 2.5mm jack Ring, no wires need to be brought outside the HT case, and the 2.5mm TRS cable used for RX Audio and Ground will also have COS – which connects directly to Pin 3 of the RIM-LiteV2 DB9 or to Pin 48 on a CM1xx IC.
Size comparison of a Kenwood TH-D72A and a Retevis RT85

Node Management / Dashboard Apps
Installing AllMon and then Supermon is highly recommended. Supermon provides many system info and configuration functions and only takes about 5-10 minutes to install and configure. AllScan can then be installed in even less time and provides a Favorites Dashboard with integrated ASL Stats scanning. This makes it easy to add favorite nodes and see their Tx & Rx activity and Connected Link Count stats in real-time (typically 1-minute resolution). These apps can be used in any web browser.
AllScan ANF100 flanked by Yaesu FT-530 and Icom IC-W32A HTs, with AllScan running in the background

Design Overview
Asterisk along with Linux provide a powerful and flexible platform. While many technologies tend to become obsolete over time, ASL has the ability to evolve and support new features, and this only increases over time as more open-source developers make contributions and the platform becomes more widely adopted. To summarize some of the key points underlying this node design,
- The $25 Retevis RT85 HTs have excellent audio and RF performance, even in full-duplex scenarios.
- ASL and Asterisk's full-duplex implementation works flawlessly.
- The CM108AH USB interfaces work great and cost almost nothing.
- ASL's usbradio DSP works very well for providing reliable Rx Carrier Detect and thereby easily supports the use of HTs for node radios with no COS line needed.
These points together now enable a node to be built that has more features and better quality at a lower cost than any previous node design.
One of my first nodes using a Dell 3040, DRA-30, and Yaesu FT-530

FCC Compliance, RF Performance
All components used have FCC certifications indicating that at least some level of certification was done. As an example a 2020 December QST review and bench test of the Radioddity GA-510 (a similar HT) found that it was fully compliant with FCC specs. I have not verified the RF specs on the RT85 with precision test equipment but have had no issues such as intermod or degraded receive sensitivity. With this node one RT85 transmits on ~147 MHz and the other receives on ~431MHz and because it's Full-Duplex, it is always transmitting whenever it's receiving, thus if the TX spurious emissions were bad or the receive performance not good the RX HT would likely be overloaded and de-sensed. The RT85 will receive a 500mW signal very well from a mile away on 70cm when the other RT85 is transmitting 1.5 Watts on 2m from less than a foot away - which says a lot about the RF performance.
An important test to do after setting up any node is a sensitivity test where you transmit to it with low power from about a mile away, and using parrot mode confirm that your audio is clearly received. Also make sure your 70cm frequency is not a multiple of your 2m frequency. ie. if the node transmits on 145 MHz and receives on 435 MHz, it's not going to work. The 70cm frequency should be at least a couple MHz away from the 3rd harmonic of the 2m frequency. For the best possible receive sensitivity the Tx and Rx antennas should be as far apart as possible, but in my case I don't need to use my nodes from more than 1-2 miles away and they work very well with the antennas only 8-10" apart.
Because no modifications have been done to the radios or PC they are indeed FCC Part 15 compliant. If they were integrated into an enclosure with a different antenna setup then the system might technically not be considered FCC-certified but with this node design there's no need for any such changes.
Re. generalizations of Chinese radios, up until recently I was under the impression that Chinese radios are all junk, but after seeing reputable companies adopting them I did some research and found that Chinese radios have come a long way in the recent past. If it's good enough for Yaesu, Gigaparts and QRZ then it's worth some investigation, which has paid off because we now have some great node radio options that cost next to nothing. I can do full-duplex on an FT-530 or TH-D72 from miles away and the audio quality is excellent, indistinguishable from local analog FM repeaters.
The node I have detailed here is intended for personal use, not as a repeater or for commercial use. There are big differences between cross-band full-duplex, full-duplex (on a single band), and a repeater. Cross-band full-duplex is easy to do with HTs going as far back as the Yaesu FT-727, which I believe was the first ham HT that supported cross-band full-duplex (I bought one new in 1987). Any claim that Chinese HTs should be not used in a cross-band full-duplex application would be baseless and a vast overgeneralization. I don't doubt that $500+ commercial radios would probably give even better RF performance, and if anyone wants to spend $500-1,000+ on a node instead of $150 then by all means go for it, but in achieving excellent, reliable performance at the possible lowest cost, the RT85's deliver.
It also appears that nearly all the Chinese HTs are now FCC-certified. A web search for the model number and "FCC ID" will turn up lots of info, test reports, etc. These radios are not as nice as a top-of-the-line Icom or Kenwood, but that is to be expected because it wouldn't make sense to spend $100's on a node radio that will be used on one frequency and only provide the most basic functionality. Pretty much any of the newer Chinese HTs should therefore work well as basic node radios. The Baofeng UV-82 look very similar to the RT85s and are available for as little as $24 ea., and have been used in other node designs in the past.
Audio Quality Notes
In the context of ASL where audio streams are typically filtered to a ~ 250Hz – 3.5KHz bandwidth, audio I/O through speaker/mic connections is not going to be any different generally than it would be on a higher-end radio after the signal has been bandpass filtered and encoded for ASL. The codecs will generally be the limiting factor.
Many if not most Analog FM Repeaters are professional-grade systems, built and maintained by Electrical Engineers with decades of experience in Audio and RF systems. An AllStar node should not detract from the audio performance of the overall system relative to any other node, and its audio should be indistiguishable from analog RF users. This node design if properly built and optimized indeed has as good or better audio quality than any other node I've heard. However, you can't just plug in a $5 CM108 fob and expect good audio quality. Some combination of ferrite beads/filters, filter capacitors, metal enclosure(s), proper grounding and wiring is also needed, and no node build should be considered complete and acceptable for use until you have confirmed the audio going out on AllStar sounds very good, not too quiet or too loud, with at least 50-60dB SNR.
ASL uses an 8KHz sample rate, which sounds very good for voice. Because the bandwidth of FM increases in proportion to the maximum modulation frequency, FM transmitters have sharp lowpass audio filters at around 3KHz. For this reason, in good RF conditions AM and SSB can actually deliver higher-fidelity audio within the same bandwidth than narrow-band FM. AM and SSB are often used with audio bandwidths as high as 6KHz.
The App-Rpt USB audio drivers use a fixed 8KHz sample rate (decimating the USB stream 1:6 from 48KHz) at 16-bits ie. a bitrate of 128Kbps. Once compressed by the codec this is reduced to around 64Kbps to as low as < 10Kbps (depending on the codec) sent over IP. (Which is generally far better than what's used by AMBE/IMBE codecs ie. DMR, D-STAR, C4FM, P25, etc., thus why AllStar sounds far better than all the digital radio modes.) A number of codecs can be enabled in modules.conf, by default u/A-law, ADPCM, G.726, and GSM. If you hear a repeater or hub node that does not have excellent audio quality it may be that u/A-law or other high quality codecs have been excluded in its modules.conf. If a node needs to limit codecs to minimize network bandwidth, testing should be done to ensure appropriate lower-bitrate but high-quality codecs are fully supported.
Re. the SA818 RF module, some nodes have properly integrated this with proper filtering, etc. thus providing good audio quality. But even then it does not support Full-Duplex, does not have the flexibility or RF performance of a real radio, may only be supported under HamVOIP, and is known to have other issues, for example using CTCSS tones below ~127 Hz results in loud harmonics that can intrude into the audio passband.
Use of HT Speaker/Mic Jacks
ASL fully supports a variety of audio sources, from unfiltered pre-emphasized FM discriminator audio, to filtered speaker audio, covering a wide range of use cases. Both the ASL simpleusb and usbradio drivers have a configuration setting to specify if the Rx Audio line is speaker audio vs. unfiltered discriminator audio. The HT does the CTCSS decode and tone squelch, and simpleusb/usbradio does not need to do any CTCSS encode/decode or DSP squelch detection. Usbradio does bandpass filtering of both the Rx and Tx audio, and does Rx carrier detection.
There are some settings in usbradio.conf and in rpt.conf that are important as described earlier. Usbradio's Rx and Tx filters may not be necessary since HTs should already do bandpass filtering on the speaker and mic audio but it shouldn't have any significant impact on audio quality to do additional filtering in usbradio with the wider frequency range options (250–3.5K Rx, 250–3.3K Tx). This additional filtering ensures that no residual PL tones or high frequencies will get through that could potentially result in codec aliasing. (It does not appear there is a way to disable usbradio's bandpass filters but if there was it would be interesting to see if that made any noticeable difference in audio quality. The frequency and phase response might be a little more linear with them off.)
The audio level from the speaker jack is controlled by the HT's volume control, which once set at an optimum point remains perfectly calibrated with the audio interface trim and usbradio gain settings. Thus it's easy to set the level at an optimum point, and there are many simple ways to ensure the volume knob stays where it should. For example:
- Put the node where people won't bump into it and turn knobs, such as a high shelf or in a closet.
- Put a piece of tape on the knob once it has been set, or a dab of hot glue or silicone, or pull off the knob and put tape on the potentiometer shaft.
- Put the node in a case. Would look great in a clear plastic case and would keep the controls out of reach and keep dust off of the components. A case would likely require a small fan and ventilation slots depending on ambient temperatures. The Dell 3040 is fanless and has an excellent thermal design, the CPU temp always stays in the Green for me (< 120°F), but you'd want to watch that.
- Regardless of the type of node it's good to periodically check your Tx signal, which can be easily done with Parrot mode. I have DTMF commands enabled for parrot mode in rpt.conf (*921/922). Double-check that you are not connected to any other nodes before doing any audio tests.
- Even if the volume knob still somehow got bumped and set wrong, someone would probably notice pretty quickly and let you know.
Audio Levels
If you hear anyone on AllStar who is significantly too loud or too quiet – let them know. They will probably be happy to fix it, and the system then works better for everyone. Audio levels are pretty easy to adjust on AllStar (definitely much easier than with the low-bitrate AMBE/IMBE digital radio modes where people are using random apps and devices with a huge range of volumes, glitches, artifacts, etc.)
It would also be relatively easy to add a configurable Auto-Gain Control (AGC) function to App-Rpt, providing a smooth, transparent auto-leveling feature to help normalize overly quiet and loud input signals. This was recently discussed on the ASL forum and may be added at some point if there is sufficient interest.
Wi-Fi Support, Portability
Wired-internet is more reliable and easier to set up but for a portable node wireless connectivity is essential. USB WiFi adapters are inexpensive and fairly easy to set up if you have basic familiarity with Linux. The option to use a 9-16VDC 5.5x2.1mm input makes the design slightly more cost-effective and energy-efficient than the 100-240VAC version, and perfect for portable ops.
Many 3040's come with an internal WiFi card and antennas that work well. Otherwise a cheap USB WiFi adapter should work for short-range communication but I would recommend a reputable brand that's known to work well on Debian Linux and that has a proper antenna. With WiFi frequencies starting at 2.4GHz, a 1/4λ vertical antenna should be 3cm in length or for some gain you'd want 1/2λ or 5/8λ ie. 6-7cm antenna length. Any adapter that's smaller than that is probably not going to have good performance. The TP-Link "Archer T2U Plus AC600" look good and are < $20. I would suggest testing a few different models and seeing how their signal strength, jitter, packet loss, etc. are at different distances from your WiFi router.
If you use WiFi on a node you should have basic familiarity with Linux and configuring the various settings. Eventually some setting or driver may need to be updated or debugged. Like anything with computers this is not hard to do, just do a web search for what you want or what issue you're seeing and dozens of web pages with plenty of answers will usually come up.
This Article has detailed instructions on how to set up wifi on Debian. This process does require knowing the node's IP address (which can usually be found on your router management page) and initially connecting to the node through ethernet with an SSH app. This may not be easy to do on networks that you do not manage but there are ways to make that easier, for example you can set up a command in ASL to say the node's IP address in response to a DTMF command.
Before configuring WiFi as described in the above article you may need to run the following steps: "sudo su", "apt install wireless-tools wpasupplicant", then run "iwconfig" and confirm a wireless interface is listed. On a Dell 3040 with internal wifi module this shows a wireless interface named "mlan0". You may then need to run "ifconfig mlan0 up" to start the interface. "iw mlan0 scan" should then list the available networks, or run "iw mlan0 scan | grep SSID" to see just the names.
After first setting up wifi on a 3040 I was seeing a lot of jitter and audio dropouts but after disconnecting the ethernet cable, restarting my wifi router and restarting the node, everything then works perfectly.
Alternatively to make it easier to connect to new wifi networks you could set up a desktop environment on the node such as MATE Desktop and plug in a small portable LCD monitor and small USB keyboard/trackpad. Connecting is then as simple as clicking on the network icon, selecting the wifi network and entering a password.
Another way to set up wifi on Debian is with iwd, which may be slightly simpler vs. the article above. See this Article for details.
If you often travel and connect to various wifi networks it might be easier to install ASL on a netbook rather than on a 3040. Netbooks are available for around the same price as 3040's which is a quite a deal considering they include an LCD, keyboard, trackpad and battery. I have a small Asus netbook that came with Linux Mint preinstalled (was only $50 on ebay) and will be setting it up soon as a radio-less node. This could make for a very interesting product because in addition to being an AllStar node it works as a regular laptop or tablet and runs 1,000's of free programs that are available on Linux, supporting web browsing, office apps, graphics, audio, music, ham radio apps, etc.
Full-Duplex Communication Benefits
In The Beginning...
In the beginning...there was CW. Most HF/CW/All-mode transceivers support full or semi break-in keying, meaning that the receiver is on between symbols/letters/words sent. Thus if someone is transmitting on a decent radio and making a reasonable attempt to monitor the frequency between characters or words, anyone can easily break in. Thus CW supports interactive, fluid conversation, and allows others to join a QSO or reply to a CQ at any time. CW can be considered semi-duplex because each dit and dash is only a couple 100mS and good radios can switch between Tx and Rx very quickly. Thus the receiver is never off for a significant time and it's easy to hear responses and other activity on the frequency.
And then there was AM...and then SSB which is much more energy-efficient and more widely used. Because SSB has no carrier there is no energy transmitted (or very little) during quiet parts ie. between words or during pauses. Experienced hams take advantage of this by briefly unkeying here and there, during pauses or maybe every other sentence, for enhanced awareness of the frequency. This is a subtle technique that many aren't aware of. Some operators will just key up and talk for minutes straight, whereas more experienced OMs tend to keep things shorter and more interactive – just like in-person conversations. When you talk to someone in person you don't just talk for 3+ minutes straight at a time without ever pausing to allow someone to comment, acknowledge, reply, etc. And there's usually no good reason to do this on the ham bands, with some exceptions such as on nets. Thus while SSB is not generally full-duplex, experienced hams use it in an interactive way where they pay attention to what's happening on the frequency (as well as plus or minus a few KHz where there might be QRM or QRN that needs to be worked around), and as a result QSOs tend to be more dynamic and interesting.
And Then There Was FM
Next there was FM. FM sounds better than AM because of its better noise resistance, but it's less energy efficient than SSB due to having a constant power regardless of modulation level. And unlike SSB where you can unkey briefly with no audible effect, if you unkey on FM it results in squelch drops for listeners (unless their radio has unusually good squelch like an IC-9700 or they have tone squelch properly set up), thus there is a slight disincentive on FM to pay attention to the channel while you're transmitting.
Due to the FM capture effect, multiple people can't transmit at the same time or the signals interfere destructively or one covers up the other. With SSB that's not an issue and multiple signals combine linearly. One might be louder than the other or you might not be able to follow what either is saying very well but at least you'll be able to tell that there are 2 people talking, vs. FM doubling which can sound like a train wreck. Thus when FM first started being used on repeaters 60+ years ago it sounded great but also had some limitations that earlier modes did not.
As a side note, repeaters don't actually need to only use FM (or PSK digital equivalents). They could also support SSB without a tremendous amount of effort. Squelch would be a little more complicated because you don't have a constant carrier to reference, but DSP, signal analysis, noise reduction and AGC techniques have come a long way since the days of the first FM repeaters. It would not be hard to set up a repeater with separate FM and SSB inputs and repeat the audio on separate FM and SSB outputs. This would for the first time (that I know of) enable the advantages of SSB to be achieved on a repeater, namely SSB's inherent resistance to destructive interference and thus the ability to support multiple signals on a single frequency, and SSB's greater power efficiency that would reduce battery use for portable users or give more range with the same average power.
But Even Before the Above, There Was The Telephone
Originally repeaters and radios only supported half-duplex (from the user perspective). If you receive at the same time you're transmitting, from a repeater that has only one FM receiver, you're generally just going to hear yourself, or maybe a bunch of noise if someone doubles with you. Technically a repeater is full-duplex because it can transmit at the same time it's receiving, but that doesn't do you a lot of good (beyond the basic advantages that repeaters provide) if no more than 1 repeater user can transmit at the same time. Prior to ASL, only rarely did repeaters actually support true multi-user full-duplex communications. This is in contrast to phones which are multi-user full-duplex and always have been, which is much more natural and intuitive. Even the very oldest telephones from the 1800's were full-duplex. Apparently Thomas Edison and whoever else contributed to the early development of telephones figured out that it would be easier to just let people talk whenever they want with no limitations on how many people can talk at a time. This is easier to do on a pair of wires than over RF, but can be easily done on RF by using multiple bands/frequencies.
Multi-User Full-Duplex Repeaters?
Most repeaters have only one FM receiver, which due to the FM capture effect can only properly receive one signal at a time, thus there was really no such thing as a repeater where any number of people could talk at any time while also hearing everyone else. To support that without ASL currently requires a repeater to have multiple receivers. Such systems do exist and work well for trivia nets or other scenarios with quick-witted hams jumping in with quick comments. San Diego's infamous W6ZN repeater does exactly this, and there are numerous interlinked repeater systems with multiple inputs such as the SoCal DARN system where (if you're using a radio that supports cross-band full-duplex or 2 different radios) you can listen to one repeater on one mountain and transmit into a linked repeater on another mountain. These repeaters have limits though because they only have so many receivers, and full-duplex users need to know what frequencies those receivers are on and coordinate amongst themselves to prevent doubles. In summary, prior to ASL, repeaters almost never supported true multi-user full-duplex in the way that phone systems always have.
And Then There Was The Internet
The Internet is essentially an extension of the telephone system that had existed for 50+ years before, with the major difference being packet-switching vs. circuit-switching. They both work for getting audio from one place to another regardless of if it's half-duplex or multi-user full-duplex. The internet does this in a general way with no limitations on the application layer which is a big improvement over the closed and proprietary phone system networks that have now become mostly obsolete.
And Finally There Was Asterisk and Then AllStarLink
Because ASL is based on Asterisk – an enterprise-grade PBX system, it supports full-duplex perfectly and makes it very simple. Asterisk started as a phone system, where full-duplex is just how things are done. Even repeaters that have only one RF input, that would not ordinarily support multi-user full-duplex, if ASL linked now support this capability by default for all AllStar users. I have tested this on many repeaters and it works just like a full-duplex phone call on a speakerphone. You talk just like you would on a simplex node but if someone else keys up you hear them and if someone doubles you hear it right away. Because you always hear the remote system, and if someone starts to double or there's looping, echoes, timeouts, interference, etc. you can simply unkey until the repeater (or node / hub / bridge / etc.) is clear. This is a powerful feature that greatly improves the interactivity, efficiency and flexibility of amateur radio repeater communications.
True Multi-User Full-Duplex
Although most people may not know it (even repeater owners), ASL-linked repeaters by default do support true Multi-User Full-Duplex. This is a subtle detail that can be hard to fully appreciate until you've tried it for yourself. The repeater itself on analog will not support more than one analog RF input at a time if the repeater has only one RF receiver, but generally will support any number of simultaneous ASL full-duplex users and at least one analog RF input. There is only one repeater I've used so far that doesn't support full-duplex. I initially had doubts about how many would fully support it and was pleasantly surprised.
By default when a repeater links to ASL it will be with a node whose audio output gets mixed with the RF receiver audio input(s). Some repeaters may prioritize one over the other and only allow one audio channel at a time, or ASL may be linked through some intermediary interface, but even then multiple connected AllStar users can still be full-duplex and talk and hear each other fine, as that's a core feature of Asterisk's architecture. Audio streams from each connected node are always routed to all other connected nodes, no different than a VOIP conference call.
Amateur vs. Professional
Go on any repeater net that has more than a half dozen or so users and you'll frequently hear doubles, echoing, etc. This wastes minutes of everyone's time and sounds "amateurish". Full-duplex solves these issues and gives you full situational awareness. This goes back to the definitions of "amateur" vs. "professional". "Amateur" just means we're not in it for money – not that we don't communicate well. Or at least that's how I see it. Full-duplex gives you the ability to easily monitor your communications in real time, and with AllStar now making it so simple to do there's no longer any good reason not to.
Situational Awareness
Another nice detail about full-duplex is that once you start transmitting from your cross-band full-duplex HT it's nice to see your node transmitting back to you right away. I can be over a mile away on an HT and start transmitting, its red Tx LED lights up, and then ~25mS later you see the green Rx LED light up which confirms that you're in range, the node is receiving you and transmitting back to you, no one is doubling with you, and you hear if there is any path noise. This is another example of how Full-Duplex improves overall situational awareness.
Radio Compatibility
Cross-band full-duplex nodes are fully compatible with half-duplex radios if they are dual-band dual-receive. For example a TH-D74 I recently sold won't do full-duplex but I had the node's 70cm Rx frequency on one memory channel and the 2m Tx frequency on the next memory channel, with dual-watch on and when I transmit the D74 will not receive at the same time but once you unkey you hear the node transmitter just fine. Thus any dual-band dual-receive radio can be used, which pretty much all modern HTs are.
Full-duplex nodes provide powerful benefits even if your other radios are only half-duplex. You can key up any time without having to wait for the node to unkey first, and if during a transmit you quickly unkey on a half-duplex radio you'll immediately hear what's on the remote system and can confirm that the channel is clear and no one is doubling with you then key up again. This is essentially the same technique mentioned above used by savvier hams on CW and SSB since the dawn of those modes, and makes checking into larger nets more efficient and enables large QSOs and nets to run smoothly and more interactively.
Some Chinese HTs also support cross-band full-duplex, with the limitation that they can only Tx on 70cm and Rx on 2m – so that their 70cm Rx doesn't get de-sensed/overloaded by the nearby 3rd harmonic of their 2m Tx. Several models such as the TYT 8000 support this and could work well for use with this node, and the 8000's are available new for as little as $65. Haven't tried one as I already have some good Japanese radios that fully support FDX, but it is nice to see the Chinese supporting it in new radios to at least some extent since there are few if any current production Japanese models that do. These would not be ideal for node radios though since a pair of RT85's is only $50 and have no limitations in transmitting on 2m while receiving on 70cm.
Full-Duplex Nodes vs. Repeaters
A Cross-Band Full-Duplex node (ie. that has duplex=3 in rpt.conf) does not repeat the received audio into the transmitted audio. This is an important distinction and I do not recommend that this node be used as a repeater or in a commercial application. A common misconception about how full-duplex works on ASL is that a full-duplex node is a repeater. This is not a valid assumption, and building a repeater is not the subject of this guide. As a result of this misconception I occasionally hear objections that you can't use Chinese HTs, or HTs at all, or carrierfrom=vox mode. Hopefully any such doubters or naysayers will read this document and its significant discussion of these details, and try it themselves. ASL was used more for repeaters than personal nodes in the beginning because things like RPi's and MicroPC's did not yet exist or were not powerful enough to run Linux and Asterisk, and FCC-certified $25 HTs did not yet exist. But things have changed and there are now many ways to build a node.
Any full-duplex ASL node can be used as a small simple repeater by setting duplex=2 or 4 in rpt.conf, which I do not generally recommend because it would defeat one of the main benefits of a full-duplex personal AllStar node, since the received audio is then routed to the transmit audio, making it work more like a typical repeater than a full-featured radio-linked VOIP node. But there are applications where a small low-cost portable repeater would be useful, such as if travelling with other hams to a remote area or field day site. For that type of application I would generally recommend a higher-end mobile radio and radio interface with a MiniDIN6 connector, but for occasional use this node design would work well and provide all of ASL's features at a very low cost. You could even add additional receive HTs at only $25 each along with a simple audio mixer circuit and thereby provide true multi-user full-duplex functionality.
Usbradio Driver Additional Notes
A related note and clarification about usbradio's carrierfrom=vox mode is that one reason it works so well in a full-duplex node is that full-duplex radios have a little bit higher background noise level during quiet parts or pauses in speech, since the radio you talk into the node with will be receiving at the same time it's transmitting. Thus the small amount of path noise / white noise you typically hear on FM comes through the radio speaker and gets coupled into the mic, thereby ensuring that the signal received by the node is always going be at least 1mV, which is then sufficient for usbradio's "vox" mode to sense a carrier and keep RX CD set. (This small amount of noise is very smooth and of a broadbanded random nature that is not distracting or noticeable.) If half-duplex radios are used with this node the incoming signal during quiet parts might not be loud enough at all times and you might get some occasional RX CD drops. However if there is any other background noise such as a breeze blowing, road noise, or general noise around the house, or you don't pause too long when talking it's unlikely to be an issue, and you can always set the voxhangtime parameter higher. Its default is 2000mS, while 500mS seems to work quite well with full-duplex radios. Also some full-duplex radios have more noise and speaker→mic coupling than others. The FT-530 has the lowest noise floor and clearest audio of any full-duplex HT I've tested, whereas the TH-D72, IC-W32A, and TH-79A are a little noisier and would probably never have an issue with false CD drops.
Summary
There are no disadvantages to full-duplex other than that it increases the cost of the node by $25 for a 2nd HT, which is a small price for all the above advantages. This node could be made half-duplex if desired though, just use 1 HT instead of 2, plug the RX HT 2.5mm plug into the TX HT, and change the duplex settings in rpt.conf and usbradio.conf.
Kenwood TS-2000's are excellent All-Band All-Mode radios supporting Cross-Band Full-Duplex

FAQs
Q: I like the idea of Full-Duplex but I have to wonder wouldn't I get a lot of feedback? When I use Full Duplex on satellites I need earbuds.
A: The great thing about Full-duplex on AllStar (with duplex=3 in rpt.conf, not 2 or 4 which is a repeater), is that it does NOT repeat your Tx audio into the Rx audio that goes back to you. Thus it's no different than talking on a speakerphone – you hear the other people on the call but it doesn't feed back your own audio. Because of this, Full-Duplex is actually much easier to use on AllStar than it is on satellites or analog-only repeaters.
Q: Wouldn't the usbradio carrierfrom=vox mode cause delays in detecting audio or other issues?
A:There are a lot of misconceptions about the ASL usbradio driver carrierfrom=vox mode. This Guide discusses this in detail. To sum it up, this DSP function in ASL is in reality a sensitive and precise Rx Carrier Detect function. I didn't think it would work so well either when I first tried it but then found that it works exactly like it should, with absolutely no delays in detecting audio, and no false carrier drops. It's sensitive enough to detect even ~1mV of room background noise.
The RX HT is either going to output 0 Volts (or well under 1mV) when squelched, or some signal > ~1mV when a signal is present. Carrierfrom=vox mode just differentiates between these 2 states. Thus it's a simpler scenario than what most VOX circuits were designed for, and the designers of ASL set up the code perfectly to do exactly what's needed. The term VOX (Voice-Operated Transmit) is somewhat misleading here in fact, because this particular usbradio DSP function is processing Receive audio to determine RXCD.
Q: Isn't carrierfrom=dsp mode even better and more powerful than vox mode?
A: The RX HT has both squelch and Tone squelch enabled, thus there is only audio on the RX audio line when a signal is present with sufficient level and valid CTCSS tone. Usbradio's carrierfrom=vox mode then sees the signal and immediately sets RXCD. This is a simple and reliable process, and there would be no significant benefit to using the dsp mode instead. Usbradio's carrierfrom=dsp mode is typically used with repeaters and raw (unfiltered, preemphasized) discriminator audio which gives ASL full control over squelch and CTCSS detection, but this node is not repeating audio to an RF transmitter, the Rx audio goes only to a VOIP codec at an 8KHz sample-rate where it is then filtered to the same ~250 Hz – 3.5KHz bandwidth typical of a speaker output, and the squelch functions of the HTs work very well. Things might be different for a repeater but that's not the subject of this guide.
You could tap into the raw discriminator audio in an HT and use carrierfrom=dsp mode, which might result in slightly higher audio quality and/or shorter squelch tails, but as the audio quality of the node is already indistinguishable from users going into repeaters directly on Analog FM, and the squelch tails on the RT85s are not unusually loud or long, it's unlikely that such a modification would be worth the hassle. Also, newer HTs are unlikely to have a discriminator audio line available as they tend to use a single IC that does all conversions and DSP between RF and filtered audio. I have not seen a schematic for the RT85 but according to the Baofeng UV-82 schematic (an almost identical HT) it uses an RDA1846 single-chip transceiver, which does not appear to have any option for unfiltered discriminator audio output.
Q: Are the RT85 HTs robust enough for use transmitting hours per day eg. connected to nodes that have multiple nets per day?
A: The RT85's have been around for years now, used by 1,000's of hams, and have many reviews, the vast majority of which are very positive. I haven't seen a single bad review relating to reliability. A few people have had minor complaints such as the menus being a little confusing, but that's to be expected from a $25 radio. I've used about a dozen of them as of Feb. '23 in various nodes and never had the slightest issue.
Considering the specific operating conditions, 1,000's of people use these HTs on the High power setting with no issues, while in this node design the HTs are only used on Low power and even after transmitting for hours barely get warm. The HTs run on a well-regulated power supply putting out the optimal voltage and there's no potential for issues associated with batteries, 12V power supplies or cigarette lighter outlets. Thus the HTs are being operated conservatively and have quite a lot of operating margin. And with them being part of a node that will generally be used in a home QTH they will not get the same type of abuse as daily-carry HTs.
The above cannot be said for a lot of other nodes on the market. Raspberry Pi's for example are known to run hot, and it's only a matter of time until a node such as an RPi 3 or 4 and Pi-Hat running at 150+°F will fail. Heat is the #1 cause of failure in computers and RF electronics. In this node all components stay cool. The Dell 3040 rarely goes above 120°F, and RT85's can transmit 1.5 Watts for hours and barely get warm. Longevity and reliability are definitely top priorities in this design and this is reflected in the components I've used, in how cool they run and in their overall energy efficiency.
Node Notes / Instructions
I provide the following notes with nodes I build and have included them here as they are useful notes regarding the general operation of any AllStar node.
- When you first plug in the node and connect an ethernet cable, it should be assigned a DHCP address by your router. If you look on the router's web admin page it should show a list of connected devices and the IP Address assigned to the node. You should then 'reserve' that address for the node there so the IP Address does not change later. The *980 DTMF command can also be used to have the node say its IP address.
- You'll also need to then forward port 4569 UDP&TCP in the router to the node. If this is not done you may get jittery audio. (This assumes you do not already have another node on port 4569. Otherwise subsequent port#s should be used ie. 4570, 71...)
- If you will want to use AllMon/Supermon/AllScan from external networks you'll also need to forward port 80 TCP in the router to the node, or for portable nodes use a Dynamic DNS service.
- To access the node by SSH enter the node's IP Address in your SSH client, username=______ and password=______. This password should be changed. To do this, log into the node by SSH and type "passwd" and you will be prompted for a new password. Make sure not to lose that as there is no easy way to recover or reset it.
- AllMon, Supermon and AllScan are all installed and have the same login: username=______ password=______, and can be accessed by entering the node's IP or DDNS Address in your browser. This will open the AllMon index page which then has links to Supermon and AllScan. To update the AllMon password see this link. To update the Supermon password see this link. To update the AllScan password go to the Users page link.
- If the Dell 3040 has not been connected to power for awhile sometimes the power button has to be held in for 5-10 seconds and it may take a minute to then start up. Usually though a single click is all that's needed to turn it on or off.
- AllStar nodes can take several minutes after first being turned on to register with the ASL Network and for connections to remote nodes to then be accepted.
- The rocker switch on the node controls power to the radios only, not the PC. (Sometimes the radios don't need to be on, eg. if using IAX/SIP apps instead of a radio.)
- The volume control on the RX radio is marked where it should be with an arrow. Make sure to keep the level around there, or adjust slightly up or down if more or less gain is needed depending on how loud your other radio(s) are. (The volume control on the TX HT does not affect anything.) The HTs should be powered on/off with the rocker switch on the node rather than use their volume control switches.
- RX and TX level adjustments can also be made in the asl radio tune settings, by logging in by SSH and running "sudo /usr/sbin/radio-tune-menu" or "sudo /usr/sbin/simpleusb-tune-menu", then follow the prompts to adjust the level settings.
- The audio levels on the node have been adjusted to good general levels, however your voice and your radio(s) you use may be louder or quieter than average and you may need to adjust the Rx gain (volume level from your radio going out to other nodes) accordingly. You can also adjust the Tx gain (volume from the node transmit HT to your radio) to your personal preference or to better match its audio levels with local FM repeaters.
- You can check your audio using Parrot mode: Enter DTMF command *921 to enable, *922 to disable. (Be sure you're not connected to any other nodes when doing any testing.)
- A 6dB or 10dB attenuator for the TX HT is recommended if you will not be using the node from more than ~1/2 mile away. RT85s put out 1.5W in the Low power setting which has a range of 2+ miles. With a 6dB attenuator the TX power will be ~375mW.
- Because 1+ Watts of RF is a significant amount of RF power that can easily induce EMI/RFI on nearby electronics,1 including components in the node itself, it is highly recommended to keep the node at least 6-10 feet away from any large metal surfaces such as LCD TVs, computers, file cabinets, appliances, exterior walls with aluminum siding or stucco, electrical panels, solar panels, cars, RVs with metal siding, etc. If you experience any noise or other issues be sure the node has at least 10 feet of clear space in all directions, or if this is not possible, use an outdoor antenna or put a 6-10dB attenuator on the Tx HT. It's also generally a good idea to keep transmit antennas at least 10 feet away from people and pets if the transmitter will be keyed for long periods of time eg. 1+ hours per day.
- Using an outdoor antenna is highly recommended and will greatly increase range and reduce possible RFI. An outdoor antenna can be connected to the 2 HTs using a VHF/UHF Duplexer such as a Diamond MX72, Comet CF-416, or MFJ 916, and SMA to PL-259 cables/adapters.
- An extra ferrite filter is included in case you get noise/RFI on the node or in any other devices. This should not be needed but if you do get any noise try putting it on different cables to filter out noise and help locate the source(s).
- The node radios are set up to RX on 431.18 MHz and TX on 147.48 MHz, with a 127 Hz PL. This can be easily changed on the radios. Be sure to confirm that the frequencies are not being used by any repeaters or other reserved frequencies in your area.
- For nodes with wifi, it is generally recommended to use wired ethernet when available for best performance. In this case the wifi module should be turned off with the SSH command "ifconfig mlan0 down", and can later be turned back on with the command "ifconfig mlan0 up". These commands can optionally be mapped to DTMF commands in rpt.conf.
- If you have questions on the node or settings be sure to review this guide, which is frequently updated.
Troubleshooting
If there is any noise on the node's transmit or receive audio these are some simple solutions:
- Put some attenuation in-line with the Tx antenna. The RT85's put out 1.5 Watts on Low power which is far more than need within half a mile or a mile. 6dB of attenuation reduces that to ~375mW which is much more reasonable, and will greatly reduce the chance of RFI in the node and with any other nearby devices.
- Add a small ferrite clip-on filter on the power supply wires to the Rx HT. On one node I already had a ferrite filter inside the power supply box but it was for the power to both HTs. Apparently some RF could still get coupled into the power line to the Rx HT however so there should either be one ferrite right next to the power supply and one on the line to the Rx HT, or separate small ferrite filters on each line going to each HT.
- Use some other antenna for the Tx HT, such as a small magmount antenna 10 feet or so away on a steel cabinet or an outdoor antenna or attic antenna. The 1+Watt of RF will then no longer be right next to the node components.
- Check the power supply ripple, try different power supplies, ferrite filters and filter capacitors. I recommend a snap-on ferrite core filter with at least 3-4 turns of the DC power cable around it – as close to the power supply as possible, and then also add a min. 2200uF filter capacitor – as close to the radios as possible.
- To prevent any possible ground loops, keep all wiring as short as possible and always run power and audio wires/cables in straight lines and next to each other rather than spread apart or in any kind of shape resembling a loop. Also be sure to use only a star-ground configuration such that there is no more than one ground path between any 2 node components.
If you get distorted audio or stuttering/dropouts, make sure all your port settings match on the ASL site for both the server and the node, and that those match the port settings in iax.conf (bindport), rpt.conf ([node#] = radio@ip:port), in the node's firewall (iptables) configuration, and in the router/cable modem. This is 6 different places the port has to be set. If it's your first node then you probably have the default of 4569 and didn't need to change anything, but if it's not your first node then a different port number is required (eg. 4570, 4571, ...), and all 6 of those places need to have the same setting. The node can still appear to be working fine if those settings don't match but the audio will be more likely to have stuttering/dropouts.
Conclusion
My goal has been to find the least-expensive possible way to build a full-duplex node using only high-quality off-the-shelf components. In addition I wanted it to be fully self-contained such that it's portable and compact.
I also build and sell fully assembled, configured and tested nodes, to accommodate hams who would rather pay a little more for a plug & play node than build one from scratch. For more info send me an email. I usually have several nodes in stock or can custom build a node to your specifications within a week.
Because all the software is open-source and the node uses only commonly available off-the-shelf parts, anyone can make a node with the same main components and sell them on ebay/qrz/eham/etc., while adding their own unique touches, other features, options, or optimizations. I encourage anyone to do so and hope this article will be useful.
Note for ebay users: Be sure to contact me (or any other ham radio equipment builder) directly before purchasing a node through ebay. Ebay fees are quite high and you can save 10-20% by ordering direct from a reputable seller and using no-fee payment services such as venmo or zelle.
Contact
For any questions, feedback or other enquiries email david at allscan.info. 73, David NR9V
