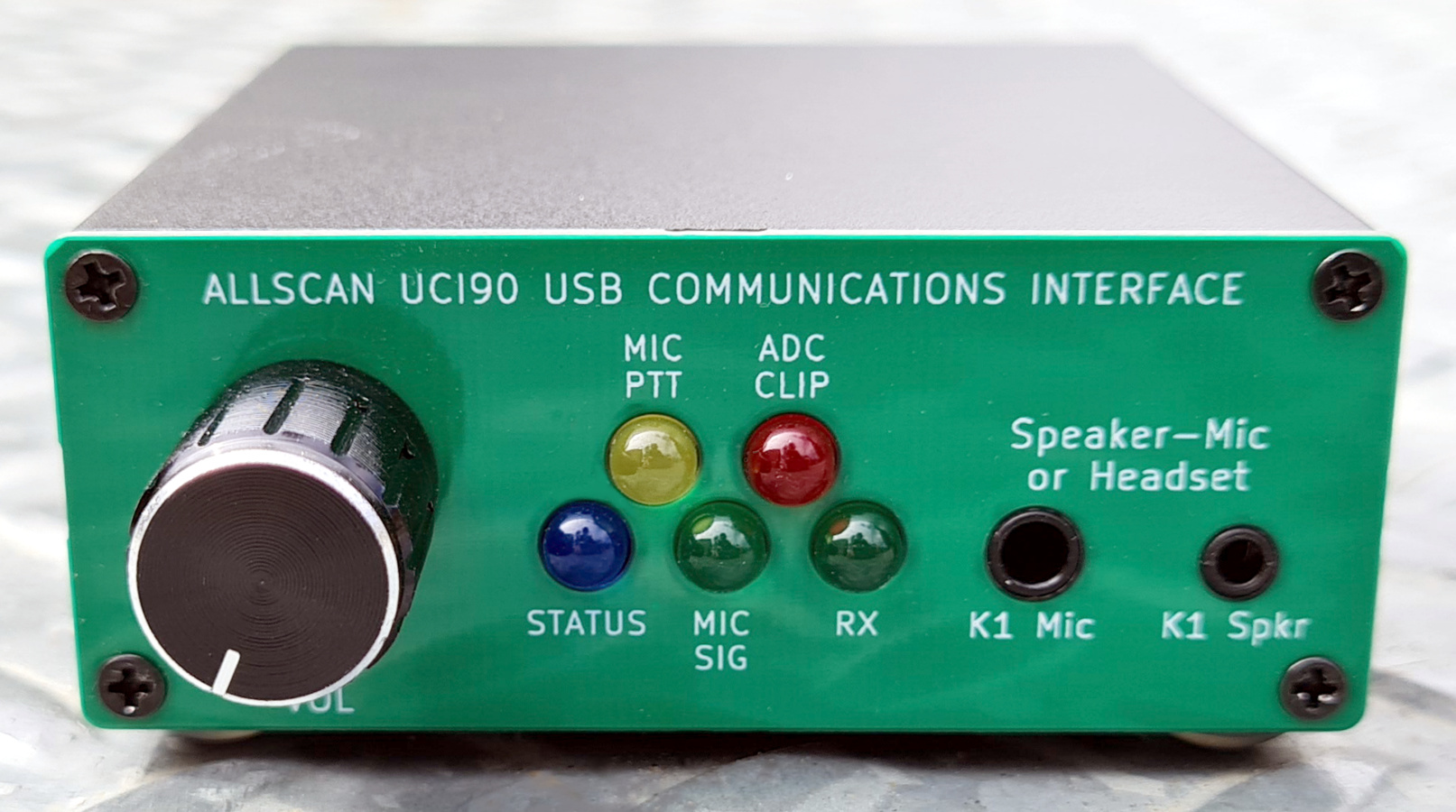

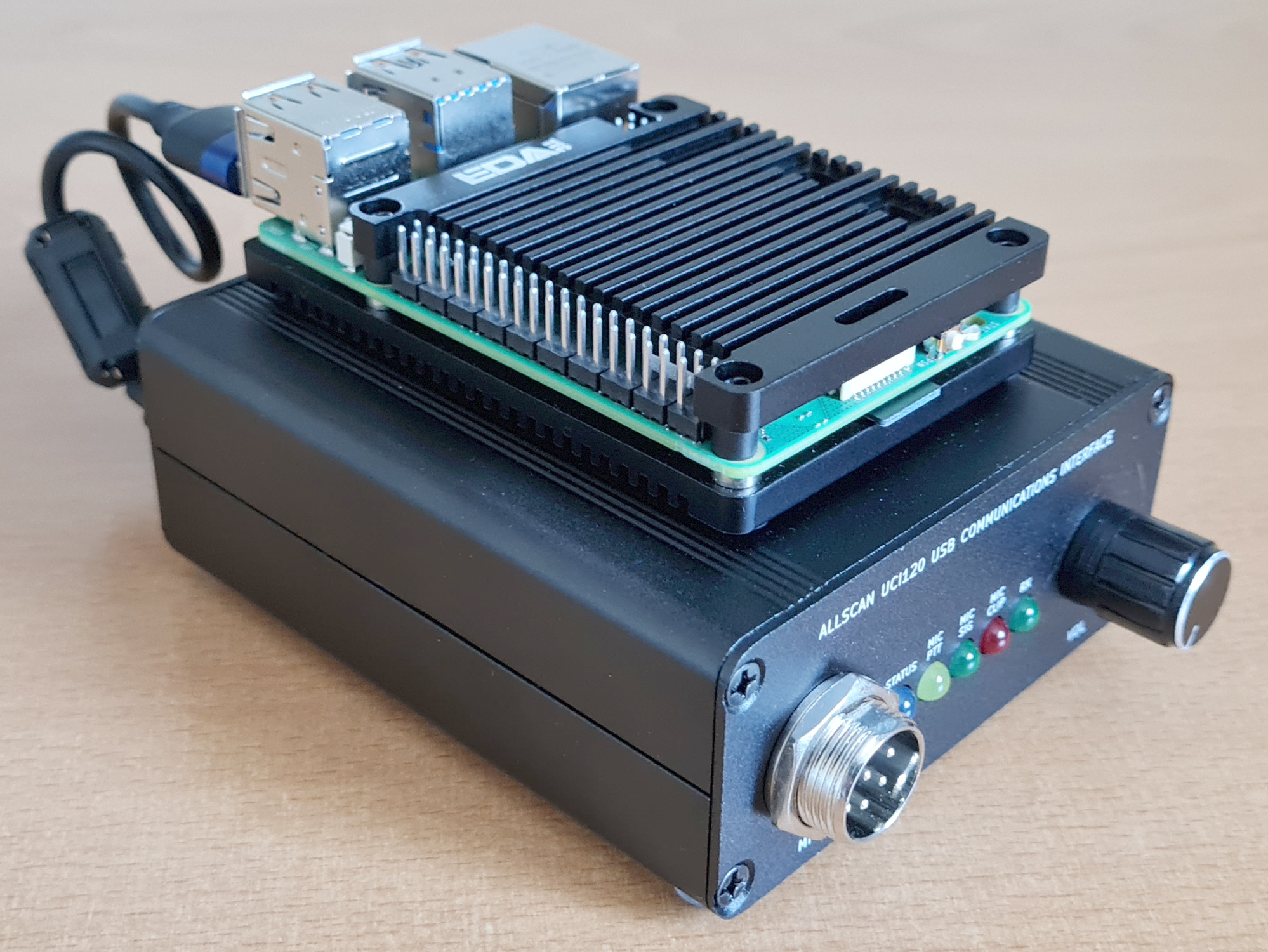

ANR100 Radio-Less Full-Duplex Nodes
There is no better sounding radio-less node. All ANR100's include an Analog Devices MAX9814 AGC Mic Preamp and 6dB/octave low-cut filter for excellent audio quality, smooth dynamics, and an overall sound consistent with even the best radio-based nodes.
These do not include a mic or speaker. I recommend using a genuine Alinco EMS-57 DTMF mic which are about $68 from Ham Radio Outlet, DX Engineering, GigaParts or other Alinco-authorized Ham Radio store. For speakers I recommend any 4-8Ω speaker made by a reputable ham radio manufacturer such as Icom, Kenwood, or Yaesu.
- Speaker output power is rated at ~2.5W into 4Ω and ~1.5W into 8Ω. For mobile use or where maximum volume is needed I recommend using a 4Ω speaker or 2× 8Ω speakers connected in parallel
- A bridge configuration audio amp is used and therefore the speaker '–' line (3.5mm jack sleeve) must not be grounded
- Headphones can also be used but may require a 3.5mm TS (mono) to TRS (stereo) adapter to have audio on both sides
Mic gain is optimally set for an Alinco EMS-57 (or other mics with a similar output level) and can be adjusted within a range of about -3dB to +10dB in the ASL tune-menu. Kenwood MC-60A, MC-80 and MC-85 Desk Mics also work very well with this gain setting, and have internal preamps that run on the 5V line from the mic jack.

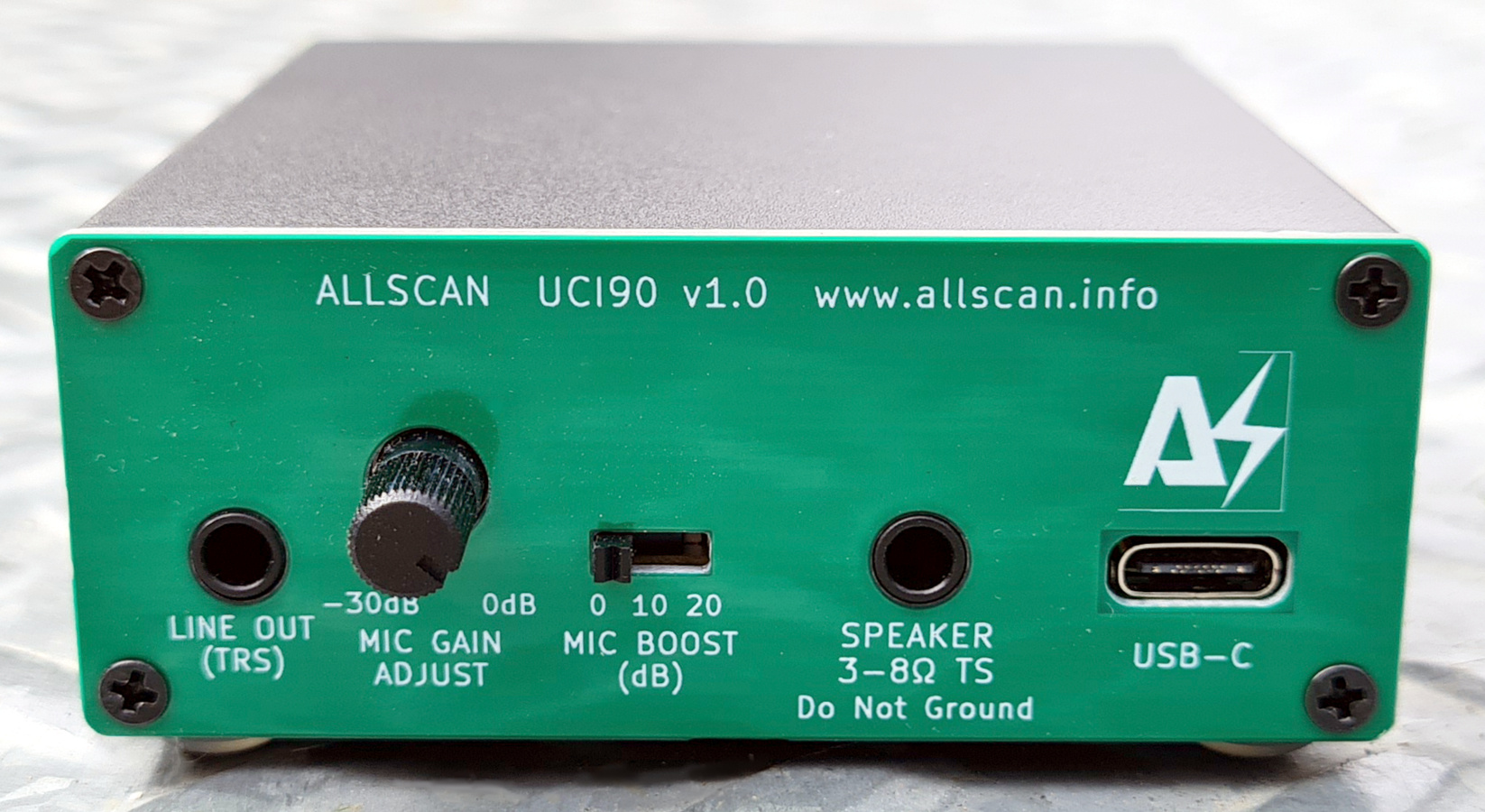

Mic Gain Control (MGC) Option Notes
Dynamic mics may require 10-20+dB of additional gain, or preamplified mics may require attenuation if they do not have an output level adjustment. The MGC option provides a switch enabling an additional +10 or +20 dB of mic preamp gain and a knob enabling gain reduction/fine tuning. This helps ensure optimal gain and AGC/dynamics module performance.
The MGC option also includes enhanced filtering of the 5V USB power line with a 10Ω—2,200μF RC filter, to ensure the lowest possible noise when used with older preamplified mics that do not have good filtering (eg. Astatic D-104 converted to run on external power) or mics that combine the audio and 5V on one line (eg. Motorola HMN/TDN series mics).
A simpler version of the MGC option is also available – the Mic Gain Adjust (MGA) option, which provides the gain reduction knob but no mic boost switch or additional mic power supply filtering. This is recommended for users who will be using an Alinco EMS-57 or equivalent mic but who have a loud voice or like to talk very close to the mic. About 90% of users of my modules have only great things to say about the audio, but the other ~10% have reported the audio levels are too high for them (even with the tune-menu rxmix level set to 0 and rxboost=0). I test all units prior to shipping and know the levels are fine when shipped so this can only be due to mic technique (or possibly incorrect .conf file settings for those using their own RPi/MiniPC). Therefore if you have a louder than average voice or like to talk close to the mic, or might at some point want to use other mics that might have higher gain, the MGA option is highly recommended.
Supported Microphones
The following mics have been tested and confirmed to work with AllScan Radio-Less Nodes:
- MGC Option not needed: Alinco EMS-57, Kenwood MC-60A, MC-80, MC-85; Icom SM-30, SM-50 (adapter cable/switchbox needed for Icom mics). These mics will all work from the node's 5V mic jack line - no batteries needed
- MGC Option Required: Non-preamplified dynamic mics, eg. Sennheiser E835, E935, Shure SM58, Beta58, Electro-Voice RE320 (use PTT Mic Base such as an Inrad DMS-1 with Kenwood cable). Preamplified condenser mics: Rode NT3
- MGC Option not needed but other Modifications Required: Icom HM-154T, Icom SM-10: Requires 5V-8V step-up converter eg. B6287. These are excellent mics. Adapter cable/switchbox needed for Icom mics, or I can wire the mic jack for Icom mics and include an B6287 module for an additional $30 (or $5 with kits). Motorola HMN10xx/TDN83xx series are also excellent mics, requiring some simple mods.
- MGC Option and other Modifications Required: Astatic D-104: Preamp can be wired to run from mic jack 5V line rather than 9V battery
- The following are NOT recommended: Amazon/ebay/Chinese counterfeit "Alinco" EMS-57s, MFJ-299, Kenwood MC-43, other cheap hand mics, Bluetooth mics, keypad mics that output serial data rather than DTMF audio (eg. Kenwood MC-59, MC-62)
- Any mic with an internal preamp that will work on 5V and that has a level adjustment control should work well with no MGC option needed if the mic can be wired to a Kenwood/Alinco 8-pin round pinout. Studio condenser mics that do not have a built-in preamp can be used with a mic preamp providing phantom power or a B6287 module
ANR100 Kit with all Node Audio Module parts, no MiniPC/RPi
Includes all needed parts as shown plus USB cable and enclosure hardware. (No mic, speaker, or wire.) NOTE: Proper assembly requires experience with surface mount electronics and soldering very small parts.
ANR100-K - $65
Use with your own Dell 3040, RPi, or other computerMic Gain Control Option (MGC-K) - Add $15
ANR100-Mini-K - $65
Includes smaller enclosure (3" x 3.75" x 1.2" vs. 4.1" x 4.3" x 1.4").Slightly harder to assemble due to limited interior space
Shipping - $5
USPS First Class MailAvailability: Usually ships within 1 day
Fully Assembled and Tested Node Audio Module, no MiniPC/RPi
Ready to plug in to any computer running ASL, DVSwitch, or HamVOIP
ANR100-A - $145
Use with your own Dell 3040, RPi, or other computer.Enclosure dimensions: 4.1" x 4.3" x 1.4" - a perfect match for Dell Wyse 3040's
Mic Gain Control Option (MGC) - Add $50
ANR100-A-Mini - $145
Use with your own RPi or other computer.Enclosure dimensions: 3" x 3.75" x 1.2" - a perfect match for RPi's
NOTE: Raspberry Pi not included
Mic Gain Adjust Knob (MGA) - Add $25
Includes gain reduction control only, no mic boost switchShipping - $5
USPS First Class MailAvailability: Usually ships within 1-2 days
Fully Assembled, Configured and Tested Node
Configured with your node# and details, running the latest ASL with AllMon2, Supermon and AllScan installed.
Includes a refurbished Dell 3040 MiniPC and 100-240VAC to 5VDC Adapter. Also available in 5-16VDC powered option
ANR100 - $250
No WiFi module is included but any Linux-compatible USB WiFi adapter can be usedWiFi Option (ANR100-W) - Add $50
Fully configured and tested Dell OEM internal WiFi module and antennasMic Gain Control Option (MGC) - Add $50
Mic Gain Adjust Knob (MGA) - Add $25
Includes gain reduction control only, no mic boost switchShipping - $10
USPS Priority MailAvailability: Usually ships within 1-2 days
Fully Assembled, Configured and Tested Netbook/Laptop Node
Configured with your node# and details, running the latest ASL with Supermon and AllScan installed. Works like a 3040 or RPi when the cover is closed and screen off, or just open the lid and you have a full-featured PC.
ANR100-LT - $375
Includes a complete Dell E7440 Laptop running Debian Linux, ASL 2.0, Xfce Desktop, WiFi, ethernet, full keyboard, trackpad, ~14" LCD, battery and AC adapterMic Gain Control Option (MGC) - Add $50
Mic Gain Adjust Knob (MGA) - Add $25
Includes gain reduction control only, no mic boost switchDual-Boot Option with Windows 10 Pro - Add $50
Shipping - $20
USPS Priority MailAvailability: Usually ships within 2-5 days

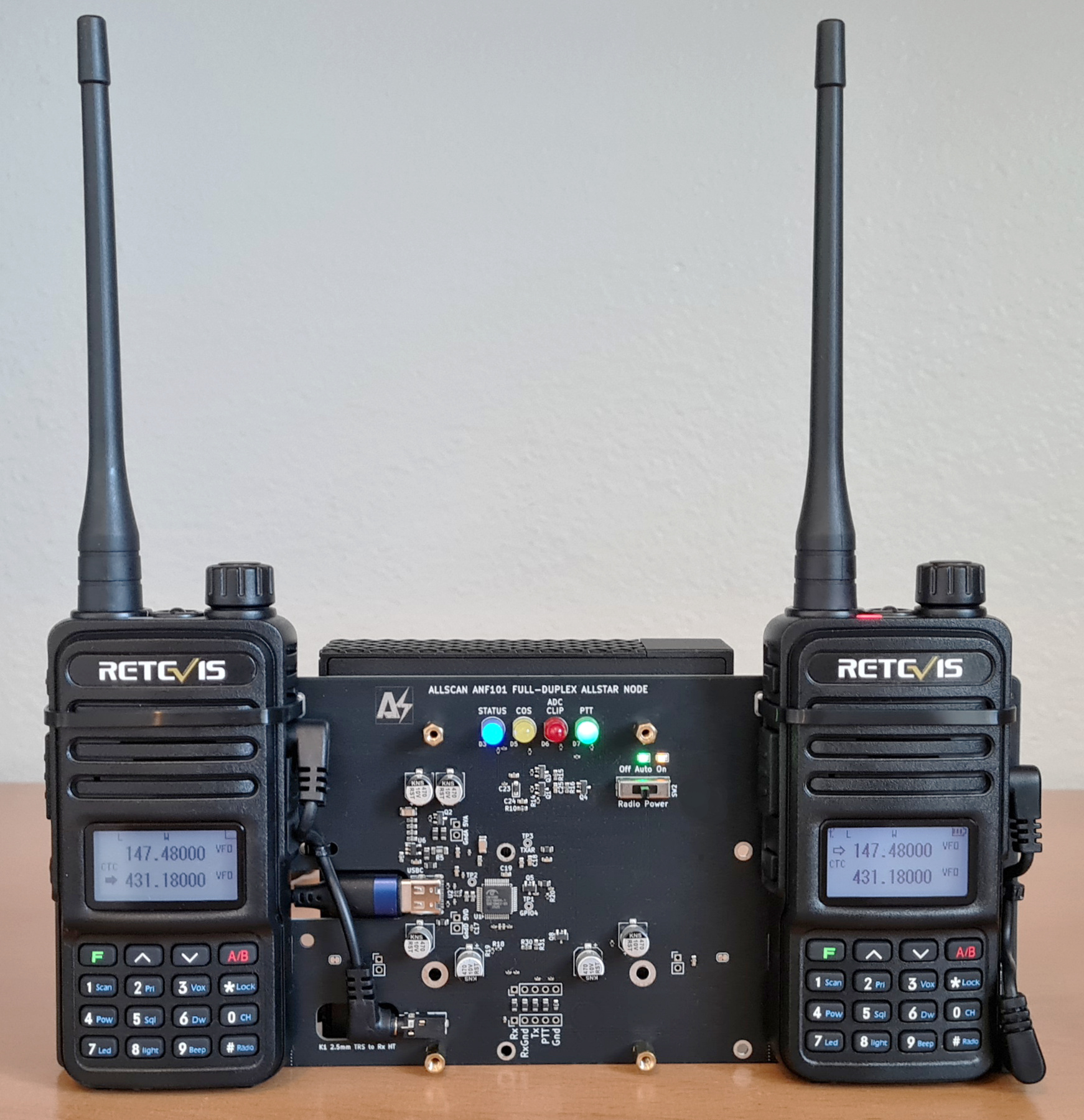

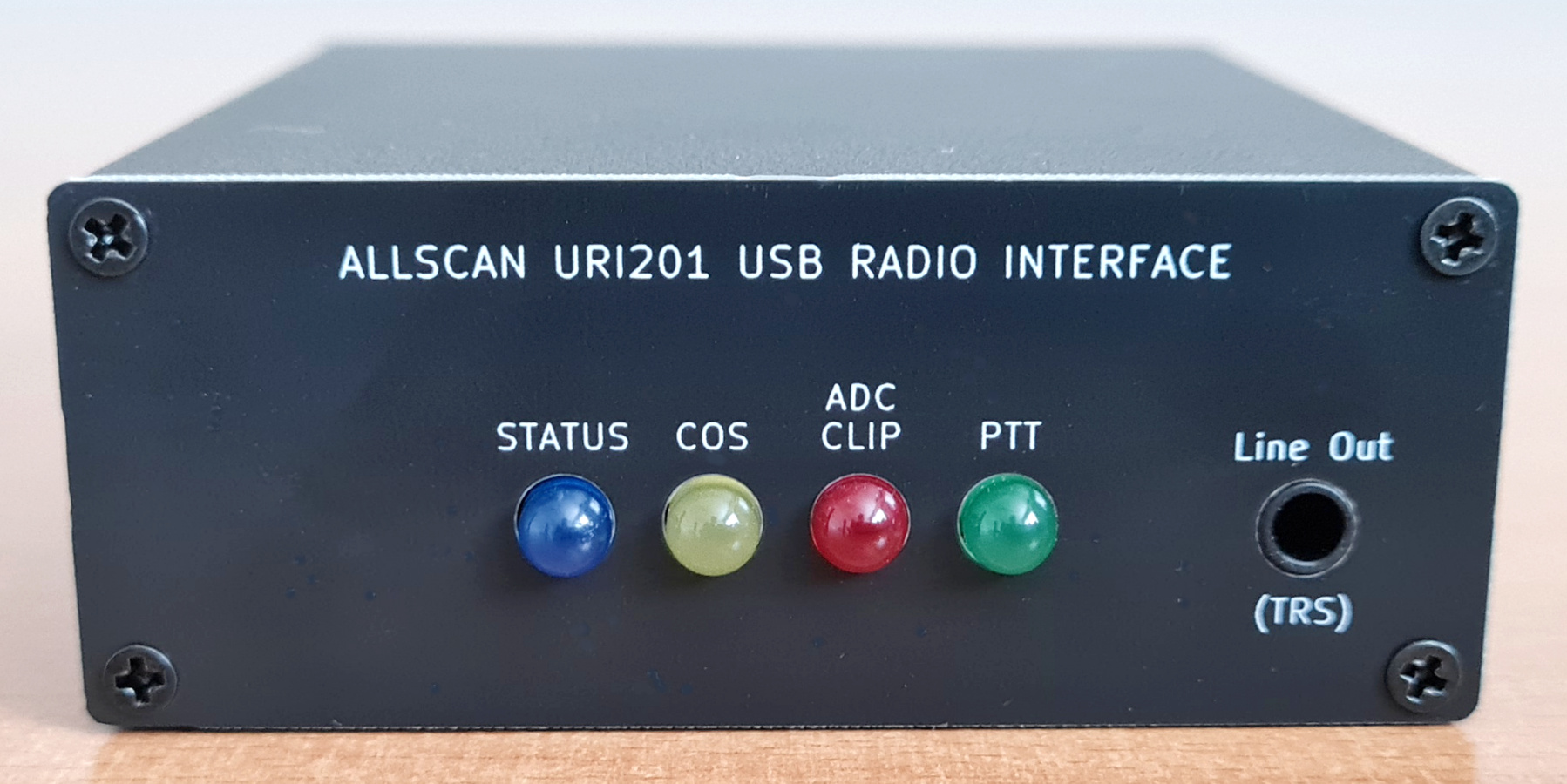

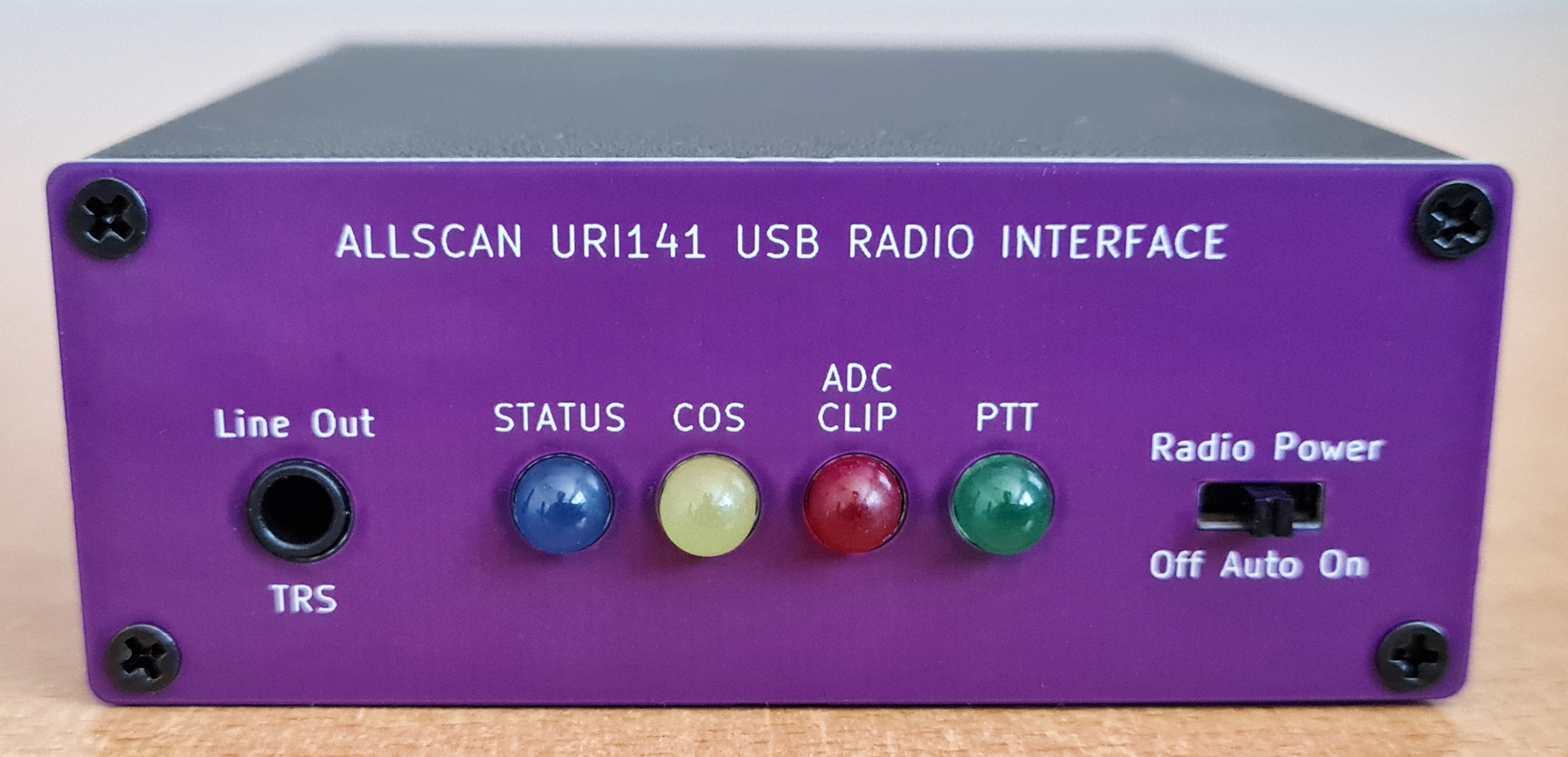

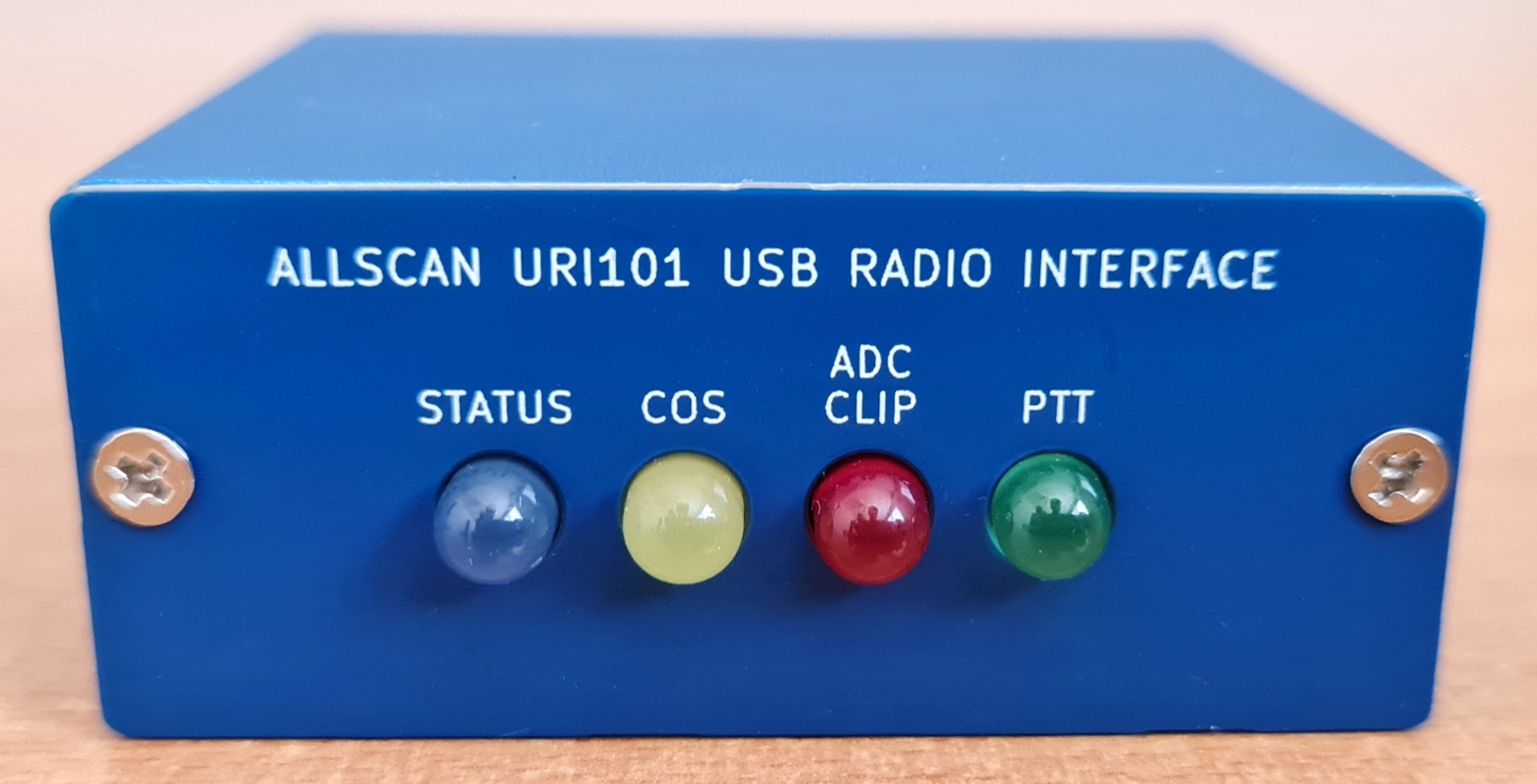

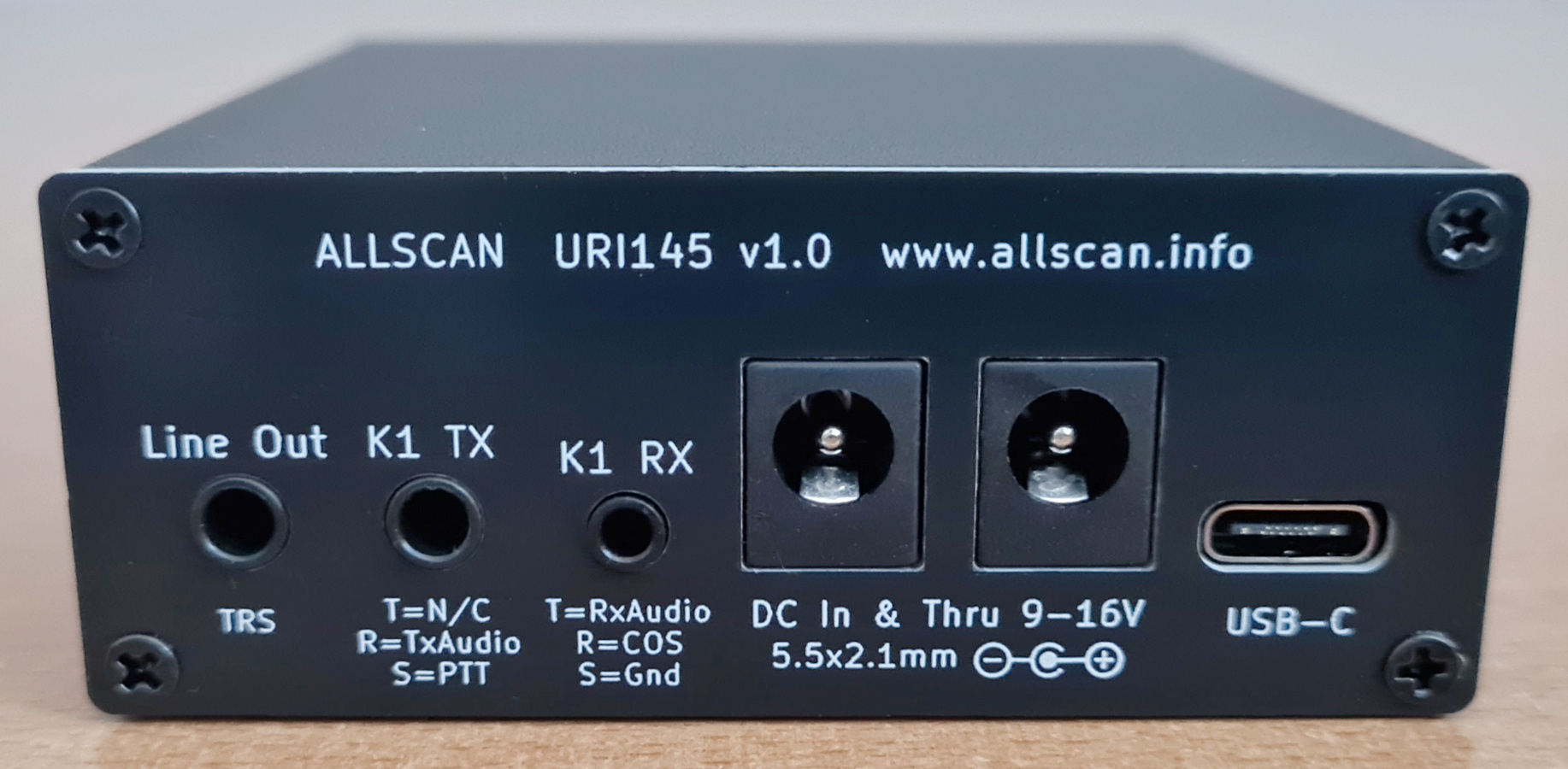

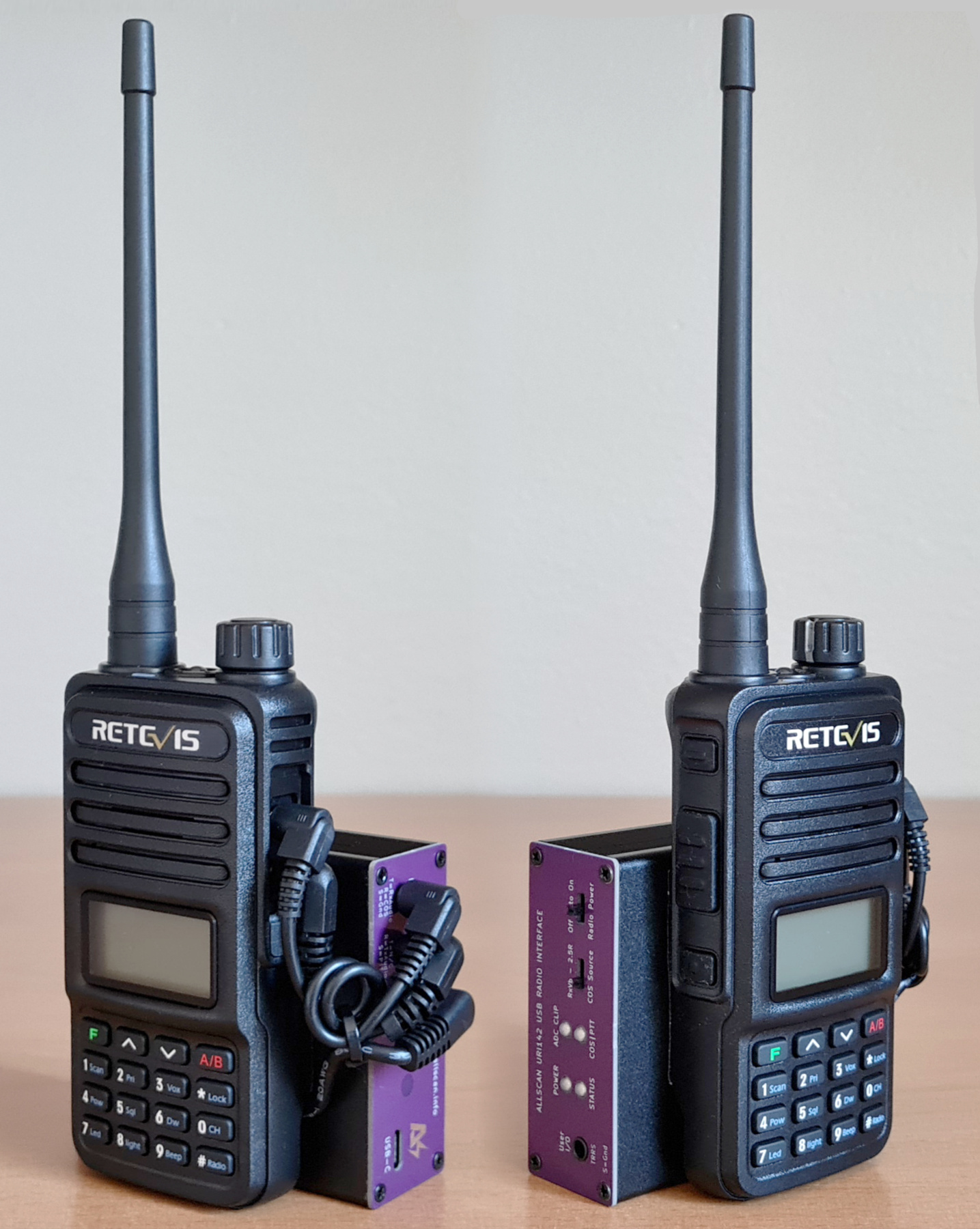

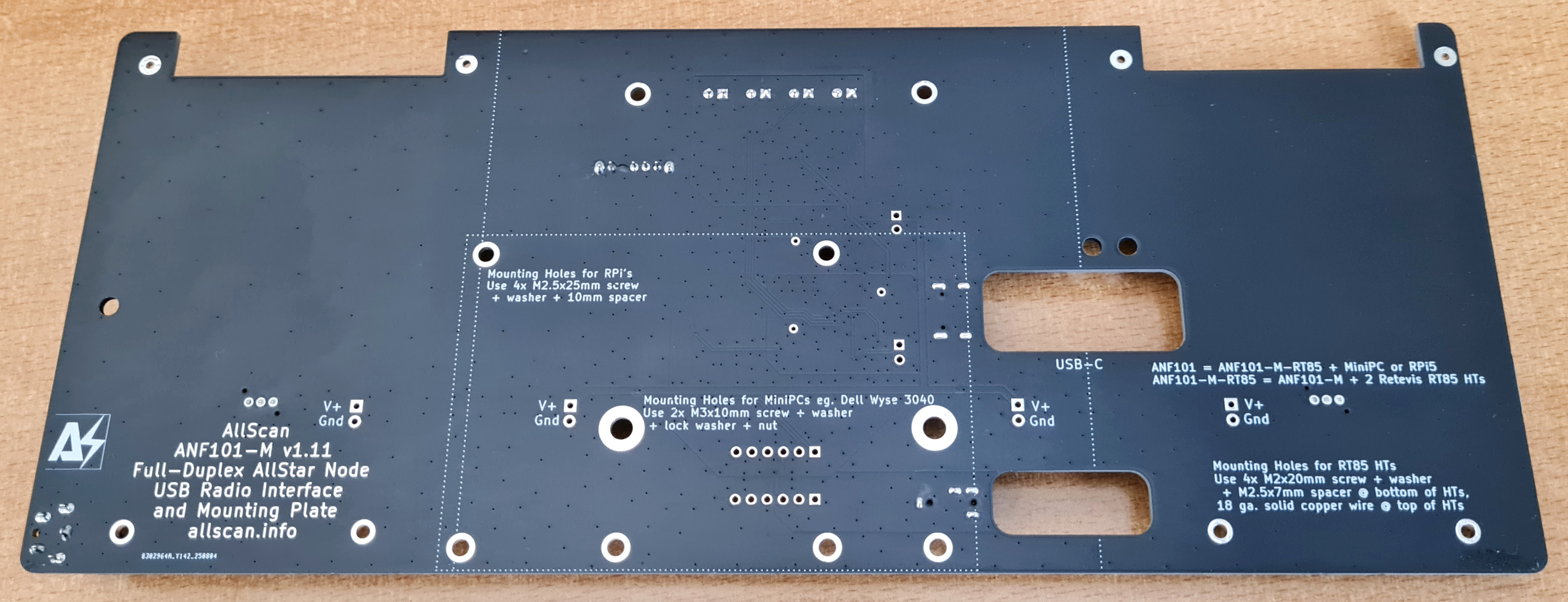

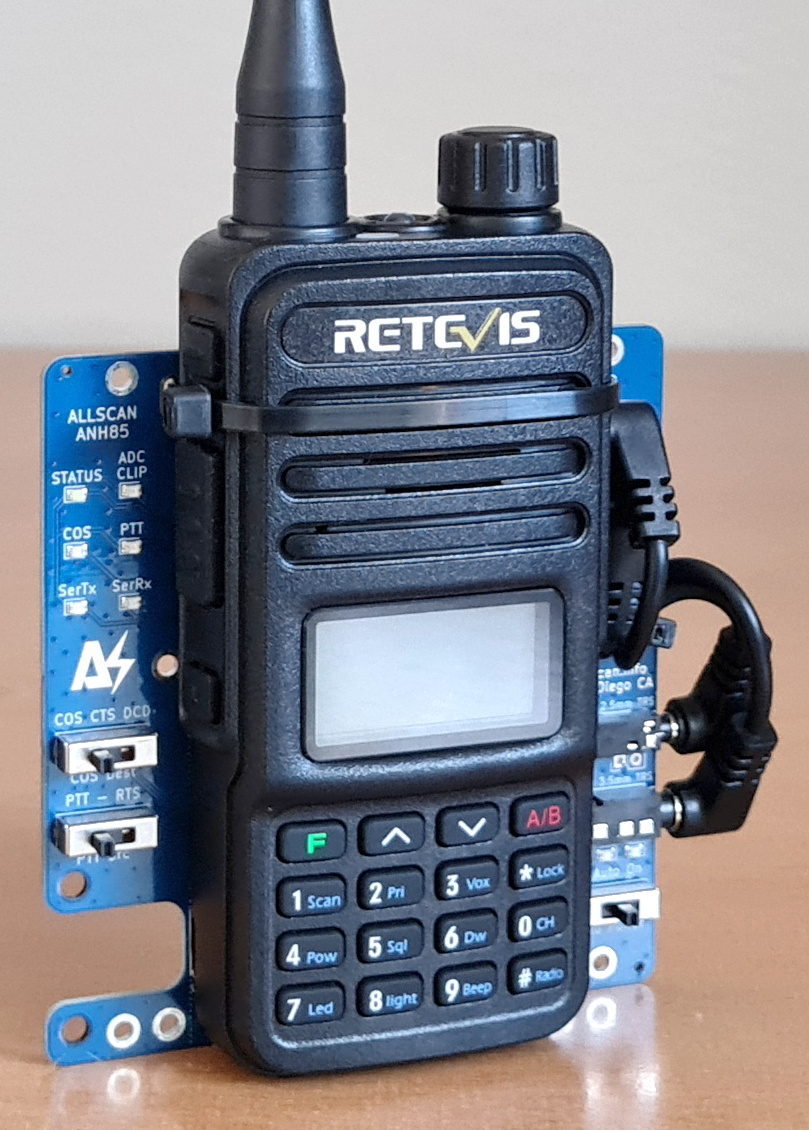

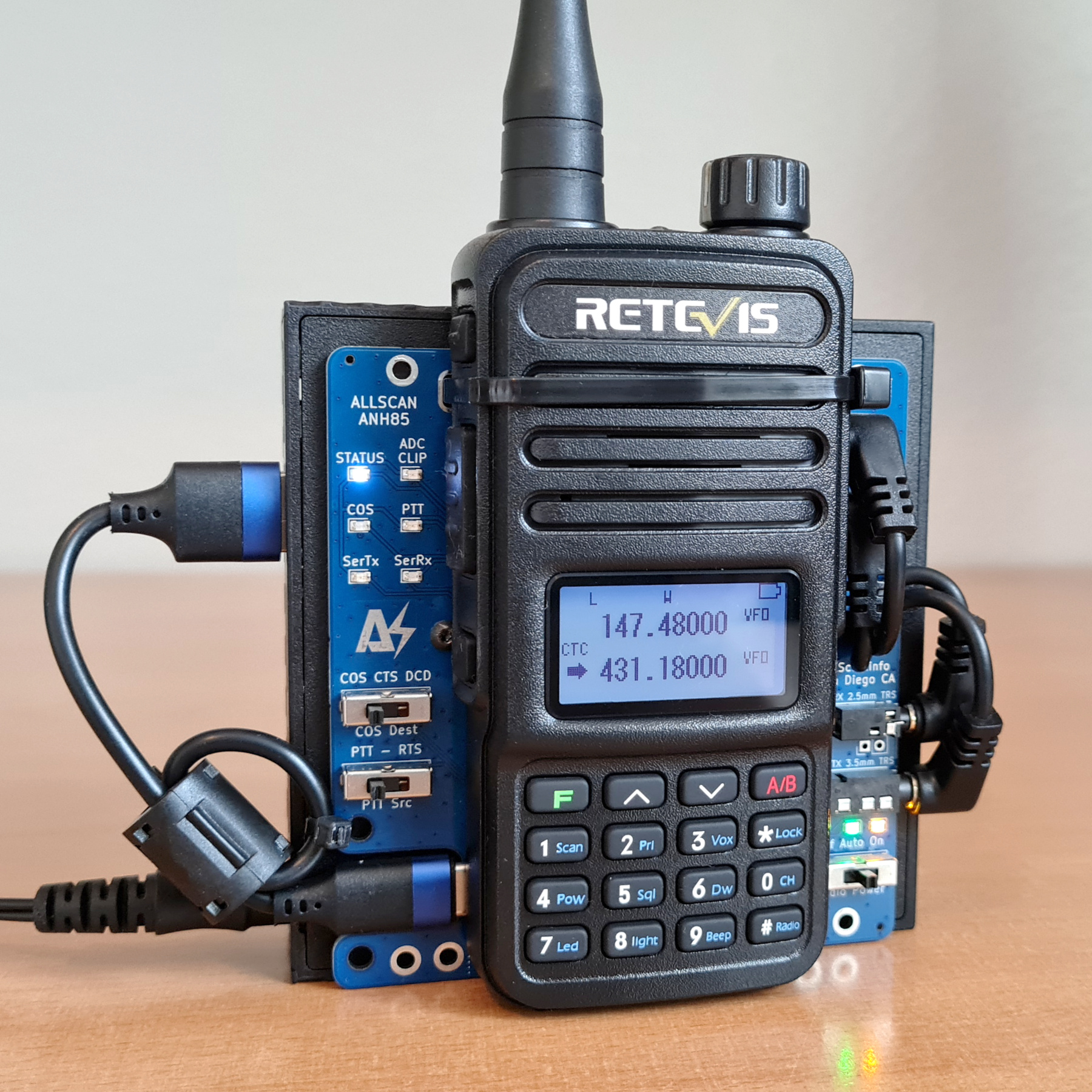

ANF101 Full-Duplex Nodes with Retevis/TYT HTs

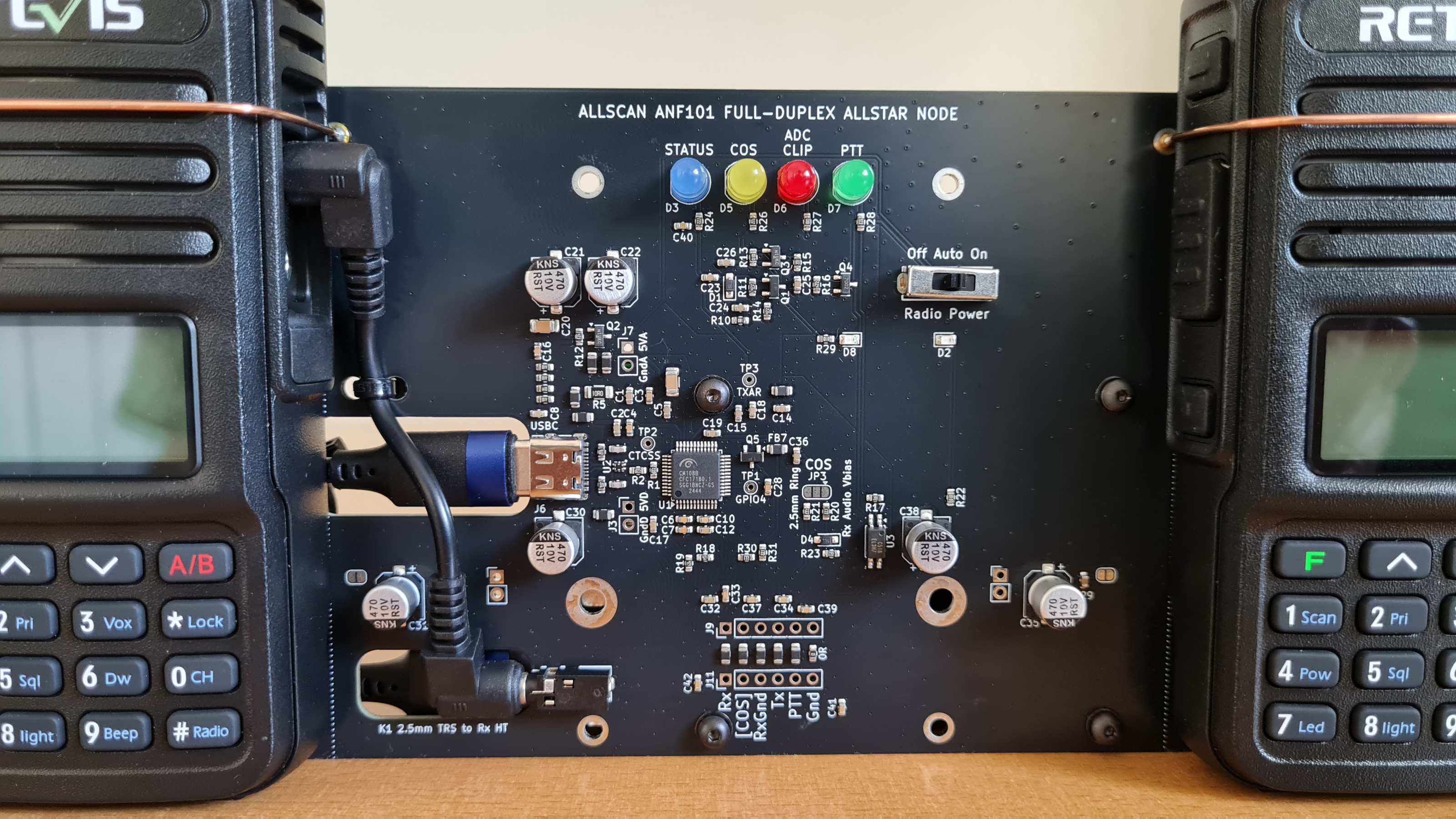

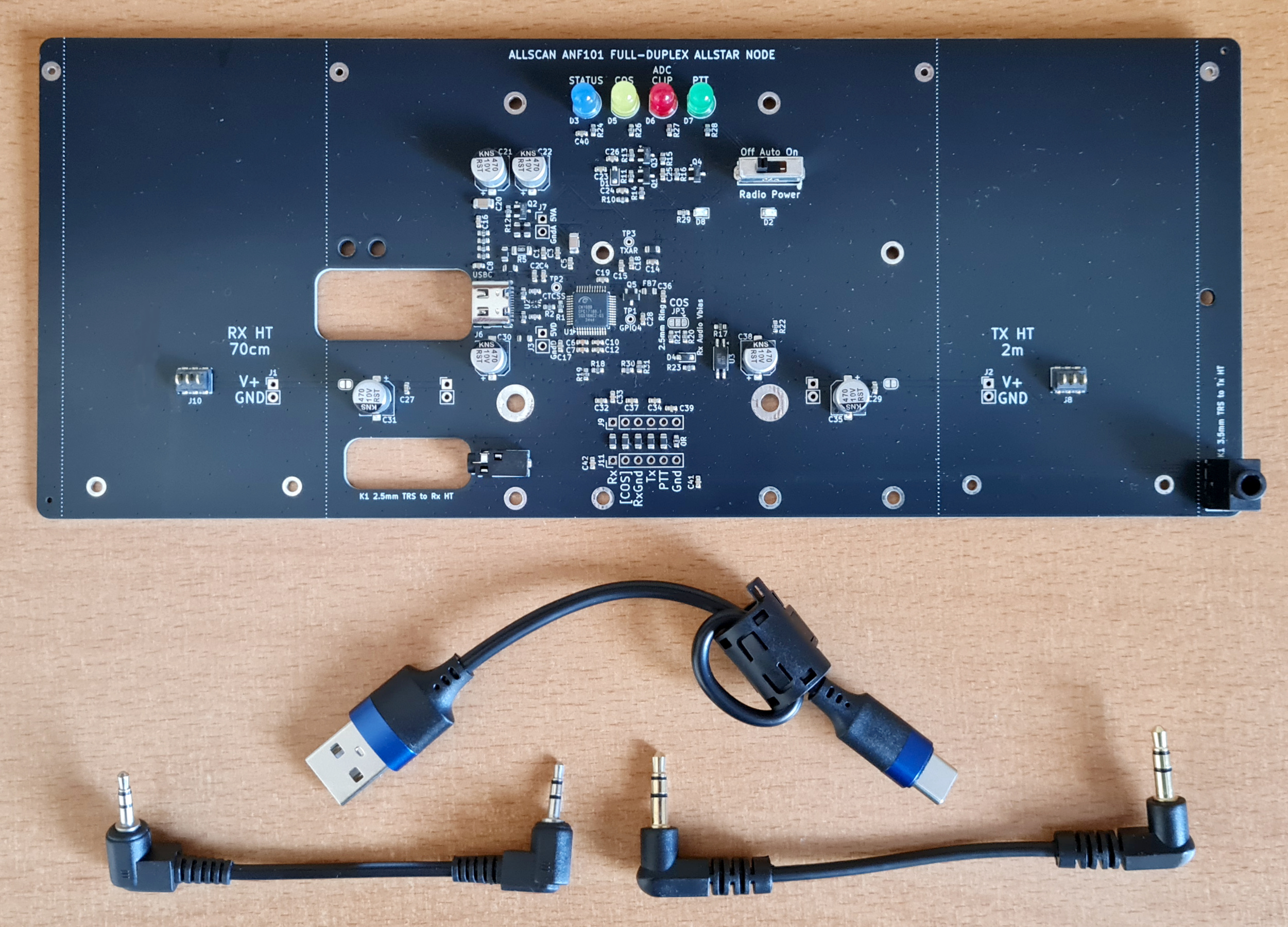

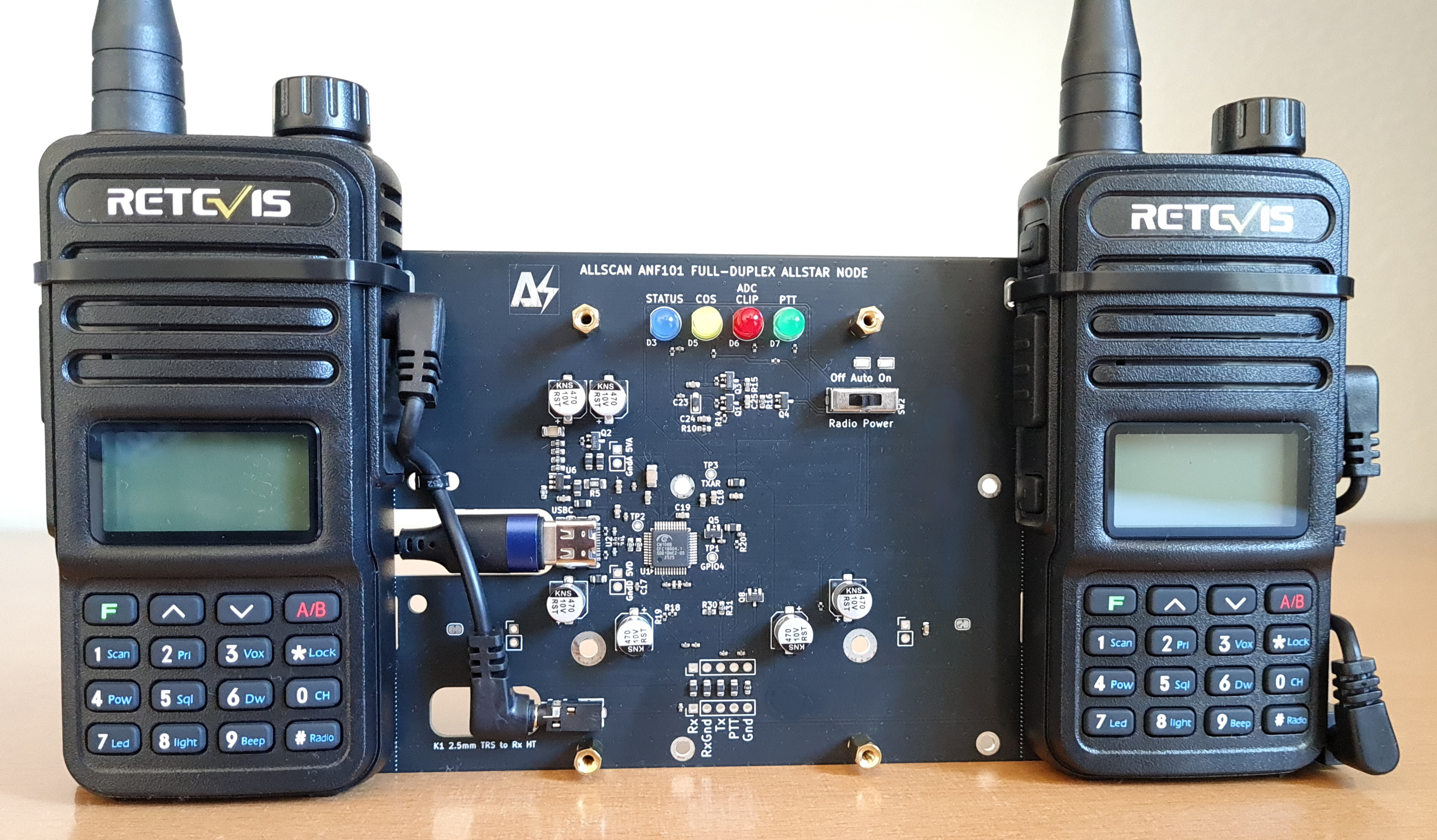

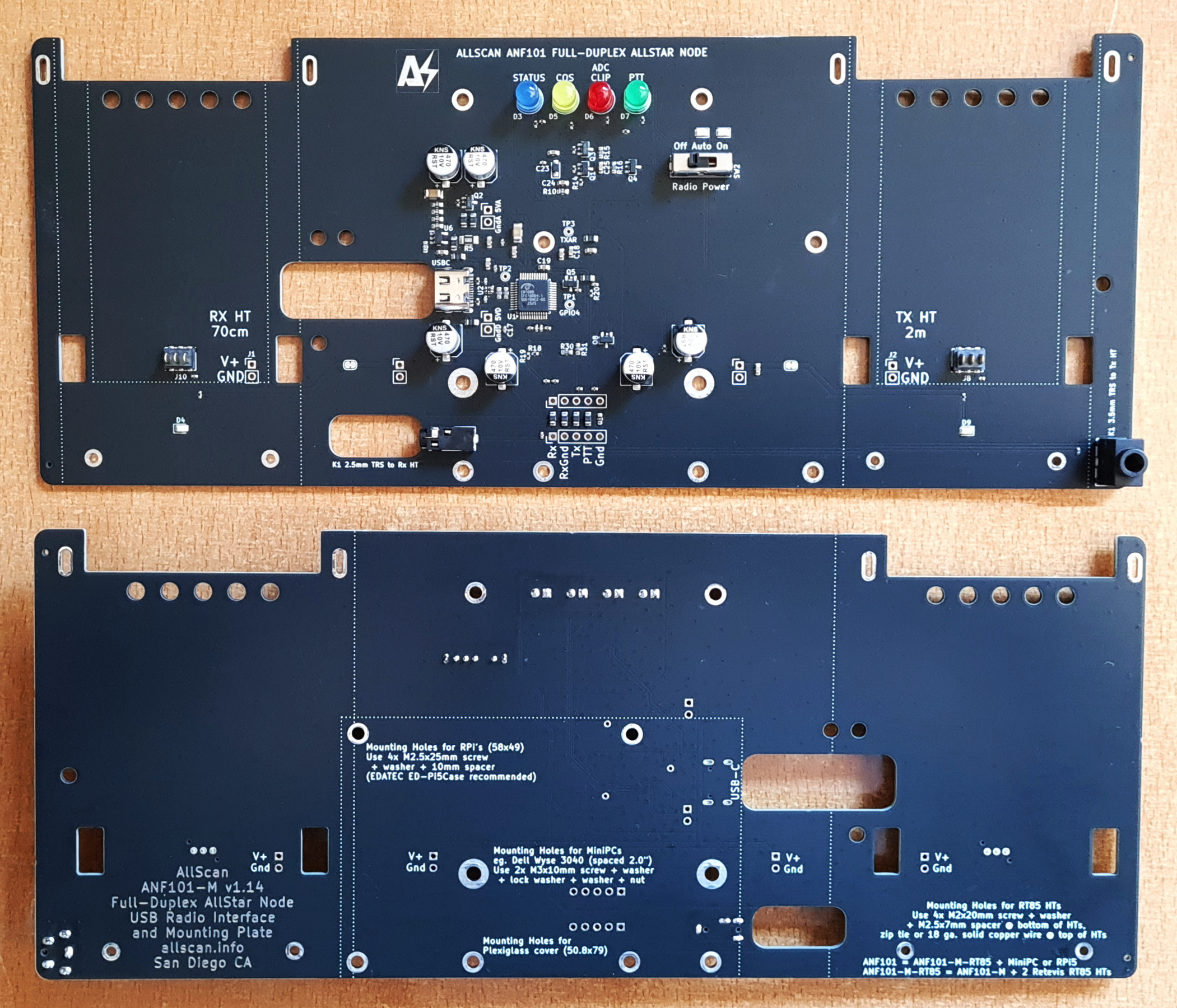

TurnKey cross-band full-duplex nodes providing excellent audio quality and maximum RFI rejection. Includes R1-ASL URI with aluminum enclosure and Rx HT Hardware COS mod.
Fully Assembled, Configured and Tested Node
Configured with your node# and details, running the latest ASL with AllMon2, Supermon and AllScan installed
ANF101 - $495
No WiFi module is included but any Linux-compatible USB WiFi adapter can be usedWiFi Option (ANF101-W) - Add $50
Fully configured and tested Dell OEM internal WiFi module and antennasBlack Color Option (ANF101-Blk) - Add $50
By default I use a plain aluminum 5"x10" mounting plate but can optionally use a black painted aluminum 4.5"x10" mounting plate and black power supply enclosure providing a more color-coordinated appearanceShipping - $20
USPS Priority MailAvailability: Usually ships within 2-5 days.
ANF200 Full-Duplex Mobile-Radio Nodes

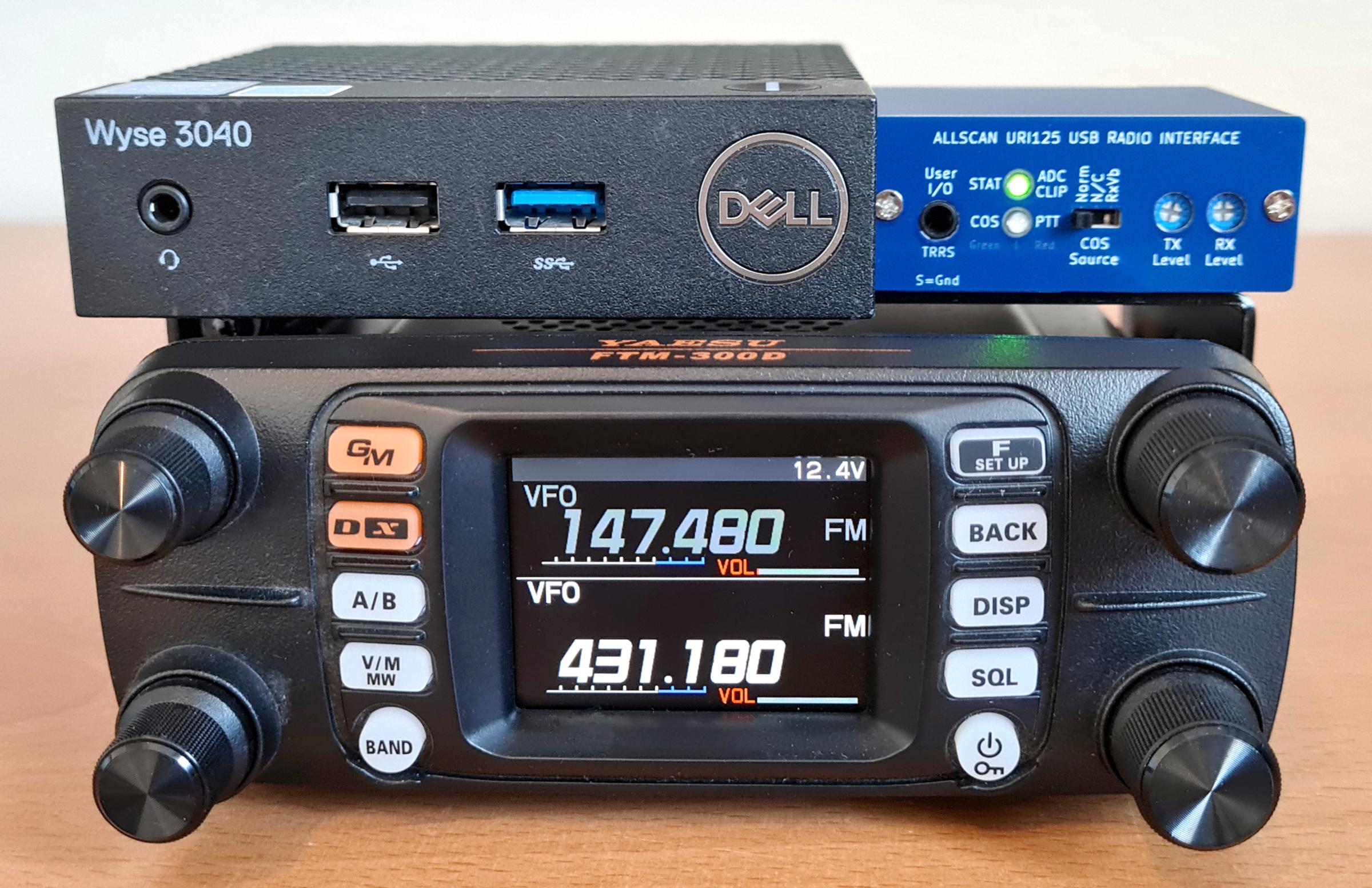

TurnKey cross-band full-duplex nodes providing excellent audio quality and maximum RFI rejection. Includes R1-ASL or RIM-LiteV2 URI with Aluminum Enclosure, with ASL configured in usbradio DSP mode using unfiltered audio I/Os.
Full-Duplex AllStar Node using various mobile radios
Fully tested and configured plug & play nodes with all original radio accessories, box and manual, configured with your node# and details, running the latest ASL with AllMon2, Supermon and AllScan installed
Custom ANF200
Can be built with any cross-band full-duplex radio such as a Kenwood TM-V71A, TM-D700A, Yaesu FT-8800R, Alinco DR-735T, or many others. Pricing is generally $300 plus the cost of the radio depending on the specific options needed. I currently have ANF200's in stock with the following radios: 1 Like-New Kenwood TM-V71A ($685), 1 Good condition FT-8800R ($550).WiFi Option (ANF200-W) - Add $50
Fully configured and tested Dell OEM internal WiFi module and antennasShipping - $20
USPS GroundAvailability: Usually ships within 2-3 days.
Node Components & Accessories
Refurbished Dell Wyse 3040 MiniPC
I have multiple 3040's in stock that have been fully tested, including the 3V backup battery replaced if it measured < 3.0V. AC adapter is listed separately in case it is not needed eg. if powering the 3040 from a DC power source.
Dell Wyse 3040 - $40
WiFi module not included but any Linux-compatible USB WiFi adapter can be used16GB eMMC option (3040-16G) - Add $20
Most 3040's have 8GB eMMC which is more than enough space for ASL,but to also install a Linux Desktop GUI 16GB is recommended
AC Adapter (3040-AC) - Add $15
5V 3A 4.0x1.7mm (also fully compatible with 3040's marked 12V 2A)WiFi Option (3040-W) - Add $25
Dell OEM internal WiFi module and antennas12VDC option (3040-DC) - Add $20
Newer 3040 version supporting 5-16VDC input. PowerPole to 4.0x1.7mm cable included12VDC option for 5V 3040's (3040-DC-5) - Add $30
Supports 9-16VDC input using an LM2586 module. PowerPole to 4.0x1.7mm cable includedUSB Power option for 3040's (3040-USB-DC) - Add $10
USB-A plug to 4.0x1.7mm cable, powers a 3040 from a USB power pack / charging portInstall & Configure Latest ASL 2.0 Software (3040-ASL) - Add $60
The latest ASL software compiled from source, updated, configured and fully tested with your node# and details, Supermon and AllScan installedShipping - $7
USPS First Class MailAvailability: Usually ships within 1-2 days.
Modified C-Media CM108AH URI
Pre-Wired USB interface for radio-less nodes. Bias resistor R6 removed, Green PTT LED added, wires added for Ground, 5V out, Mic In, Mic PTT (COS), and Speaker Out
C-Media CM108AH-Radio-less - $35
The main module needed in any radio-less node, pre-wired and ready to connect to a volume control, audio amp, and mic preamp/dynamics module6" USB Extension Cable - $5
Same cable as provided with ANR100'sShipping - $5
USPS First Class MailAvailability: Usually ships within 1 day.
Modified BH7NOR R1-ASL / R1-2023 URI
By far the best AllStar USB Radio Interface with outstanding RFI rejection and extruded aluminum case. Modified to support Full-Duplex and ASL txmix level setting. 10K version supports line level source impedance.
Note: R1-ASL supports AllStar only and has an extra Status LED; R1-2023 provides a USB serial port interface used by PC apps such as Zello, EchoLink, and digital mode programs. If you want the R1-2023 let me know when ordering.
R1-ASL - $65
Perfect for nodes using HTs or radios with speaker level outputs. ~100Ω audio input impedance. Includes USB and MiniDIN6 cablesR1-ASL-10K - $85

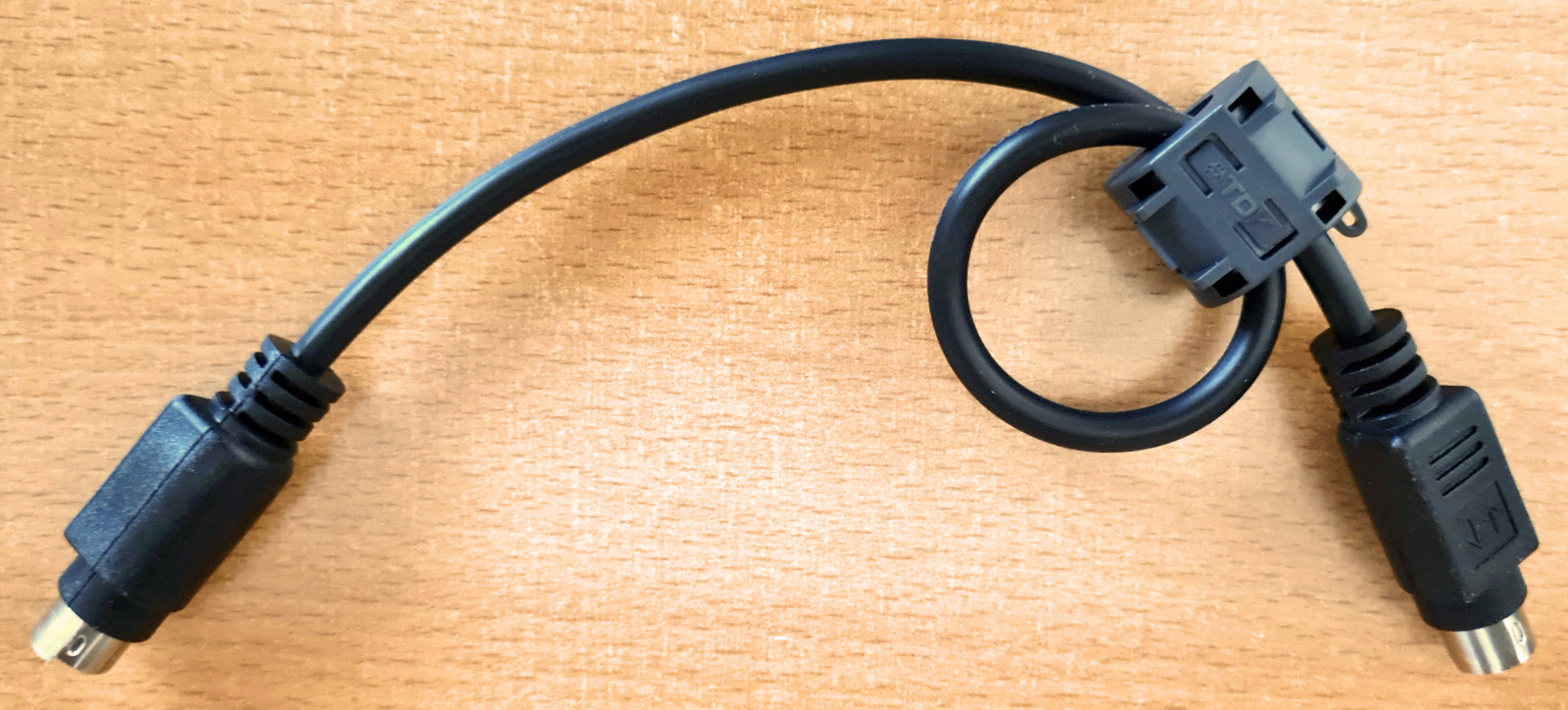

Perfect for mobile radios that have a standard MiniDIN6 jack with ~10KΩ Rx Audio line source impedance. Includes USB and MiniDIN6 cables. Supports "9600" or "1200" audio input lines (specify when ordering)MiniDIN6-K1 Cable - $45

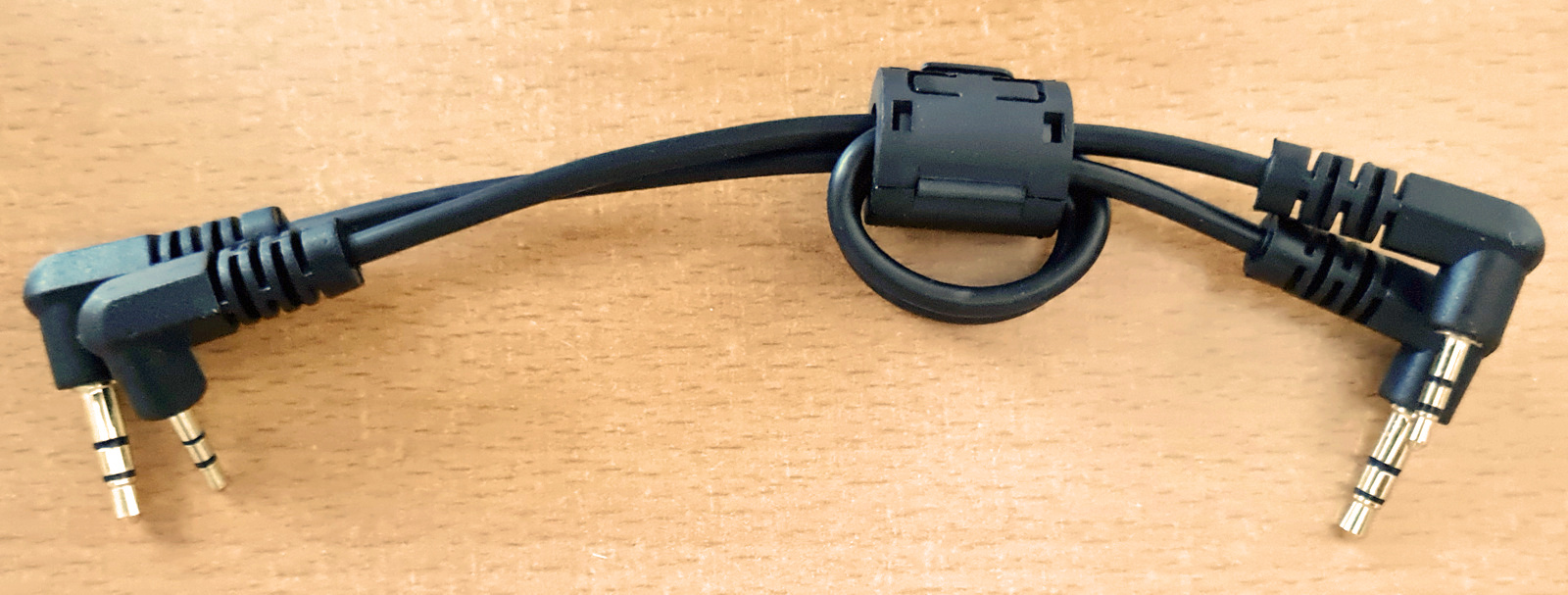

Cable used in ANF101s going from a MiniDIN6 plug to K1 HT 2.5mm & 3.5mm plugs and Ground wire. Works great with both half and full duplex nodes ie. 1 or 2 HTsShipping - $5
USPS First Class MailAvailability: Usually ships within 1 day.
Custom Builds
I can do custom builds with any enclosure and any other options you might need. I can also set up cloud VM nodes, repeater links, or custom hardware and software.
Radio-Less AllStar Node using a Communications Speaker
I can build custom nodes using any communications speaker if there is sufficient room to add a mic jack, volume control, etc. I include an A/B switch and external speaker level input jack with all speaker conversion nodes so that the original functionality of the speaker remains fully intact and it can still be used with any radio.
Custom ANR200 - $Contact me for details
These are around the same price as an ANR100 plus the actual cost of the speaker and $150-200 to cover additional labor and options ie. A/B switch and external speaker level input, bi-color panel mount status LED, and any other desired options or customizations. Can include mic gain and dynamics controls, aux inputs, line outputs, insert I/O jack, mic preamp/AGC bypass switch, level meters, speaker amp AGC module, etc.I currently have in stock a Heathkit HS-24, Kenwood SP-23 and SP-120 that can be made into nodes. These can plug into any PC or RPi or can be provided with a fully configured and tested Dell 3040 or Netbook.
Availability: Usually ships within 2-5 days.
Radio-Less AllStar Node using a Phone Patch
I can build custom nodes using any phone patch. Since AllStar runs on Asterisk (a phone system), adapting a phone patch makes a lot of sense. It is also possible to preserve the original phone patch functionality such that it can still work with analog telephones and HF/VHF radios in addition to AllStar.
Custom ANR150 - $Contact me for details
These are around the same price as an ANR100 plus the actual cost of the phone patch and $150-250 to cover additional labor and options ie. VU Meter support, bi-color panel mount status LED, and any other desired options or customizations. Can include mic gain and dynamics controls, aux inputs, line outputs, etc.I currently have in stock a completed Heathkit HD-15 ANR150, which can plug into any PC or RPi or can be provided with a fully configured and tested Dell 3040 or Netbook.
Availability: Usually ships within 1-5 days.
Ordering Process, Contact Info, Payment Options
To place an order email david at allscan.info and let me know which option(s) you'd like to go with and any other setup/configuration details needed or questions you have. I can then confirm I have everything in stock and estimated ship date. PayPal can be sent to paypal.me/allscan or david at allscan.info, or Venmo or Zelle to chc_media at yahoo.com.
If you are ordering a product that includes a configured and tested node computer (ie. Dell 3040 or Netbook) please provide the following information:
- Name, Call Sign, Email Address, Phone Number, and mailing address. (Will not be provided to any 3rd party.)
- AllStar Node Number to use, password you defined for that node number in the ASL portal (not your user password), and the IAX port number to use (4569 by default unless you already have other node(s) in which case select the first unused higher number). The IAX port number is set on the Server Settings section of the ASL Portal. A new server entry should be created there and then in the Node Settings section assign the node number to the new server.
- Please confirm you have reviewed the AllScan.info website, The "Node Notes / Instructions" section of the How-To Guides for the type of node you are ordering (Radio or Radio-Less), and understand how to connect the node and use AllStar.
- If you made a purchase through ebay please confirm if you would like any of the other options or accessories listed here on the Products page.
- Confirm if you need any other ASL options, settings, or apps enabled such as EchoLink, iaxRpt or SIP. (AllScan and Supermon are included by default.)
73, David NR9V
